| CPU2006 license: | 55 | Test date: | Aug-2007 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | May-2006 |
| Tested by: | Dell Inc. | Software Availability: | Jun-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5160 |
| CPU Characteristics: | 1333 MHz Bus Speed |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB 667 MHz ECC CL5 FB-DIMM) |
| Disk Subsystem: | 1 x 73GB SAS 10K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows XP Professional x64 Edition SP2 |
| Compiler: | Intel C++ Compiler for IA-32, Version 10.0 Build 20070426 Package ID: W_CC_P_10.0.025 Microsoft Visual Studio 2005 SP1 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 |

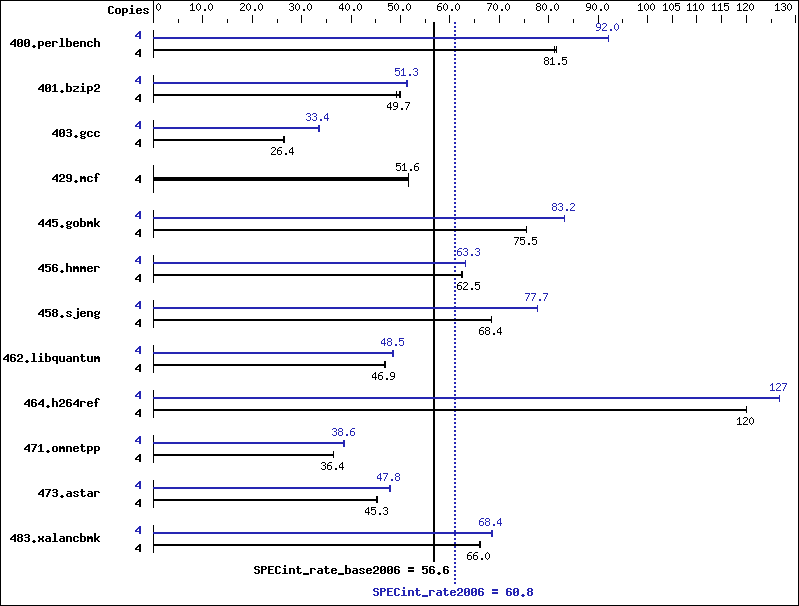

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 481 | 81.2 | 480 | 81.5 | 480 | 81.5 | 4 | 425 | 92.0 | 424 | 92.1 | 425 | 92.0 |
| 401.bzip2 | 4 | 784 | 49.2 | 771 | 50.1 | 777 | 49.7 | 4 | 755 | 51.1 | 750 | 51.4 | 752 | 51.3 |
| 403.gcc | 4 | 1225 | 26.3 | 1222 | 26.4 | 1214 | 26.5 | 4 | 965 | 33.4 | 965 | 33.4 | 959 | 33.6 |
| 429.mcf | 4 | 706 | 51.6 | 707 | 51.6 | 707 | 51.6 | 4 | 706 | 51.6 | 707 | 51.6 | 707 | 51.6 |
| 445.gobmk | 4 | 555 | 75.6 | 556 | 75.4 | 556 | 75.5 | 4 | 505 | 83.2 | 504 | 83.2 | 504 | 83.3 |
| 456.hmmer | 4 | 598 | 62.4 | 597 | 62.5 | 598 | 62.5 | 4 | 590 | 63.3 | 591 | 63.2 | 590 | 63.3 |
| 458.sjeng | 4 | 707 | 68.4 | 708 | 68.3 | 707 | 68.4 | 4 | 623 | 77.7 | 623 | 77.7 | 623 | 77.7 |
| 462.libquantum | 4 | 1769 | 46.9 | 1768 | 46.9 | 1769 | 46.9 | 4 | 1706 | 48.6 | 1709 | 48.5 | 1714 | 48.4 |
| 464.h264ref | 4 | 738 | 120 | 737 | 120 | 737 | 120 | 4 | 699 | 127 | 699 | 127 | 699 | 127 |
| 471.omnetpp | 4 | 686 | 36.5 | 686 | 36.4 | 687 | 36.4 | 4 | 647 | 38.6 | 650 | 38.5 | 648 | 38.6 |
| 473.astar | 4 | 619 | 45.3 | 620 | 45.3 | 621 | 45.2 | 4 | 585 | 48.0 | 588 | 47.7 | 588 | 47.8 |
| 483.xalancbmk | 4 | 417 | 66.1 | 419 | 65.9 | 418 | 66.0 | 4 | 403 | 68.5 | 403 | 68.4 | 404 | 68.3 |
General Notes
Binaries were built on Windows Vista Ultimate (64-bit)
BIOS Settings
Snoop Filter : ON
Adjacent Cache Line Prefetch : OFF
Hardware Prefetcher : ON
Snoop Filter
Preserves cache coherency while minimizing snoops
to remote nodes.
Adjacent Cache Line Prefetch
Prefetch data in order to shorten execution cycles
and maximize data processing efficiency.
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qprefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 403.gcc: | ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 -link /FORCE:MULTIPLE |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxT -O2 -Qipo -Qprec-div- -Qansi-alias /F512000000 -link /FORCE:MULTIPLE |
| 456.hmmer: | ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 458.sjeng: | ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 462.libquantum: | ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 -Ob0 -Qprefetch -Qopt-streaming-stores:always /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
