SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL365
(3.0G Hz AMD Opteron 2222)

SPECfp®2006 = 15.1

CPU2006 license: 3 Test date: Aug-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Sep-2007
Tested by: Hewlett-Packard Company Software Availability: Oct-2007

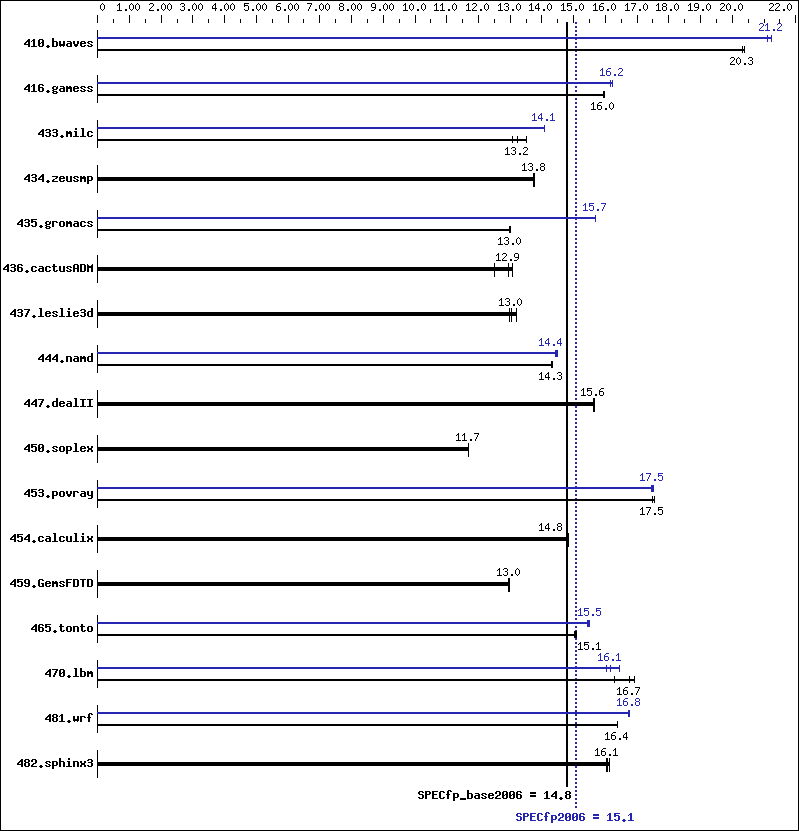

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2222
CPU Characteristics:
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (4x4 GB, PC2-5300P CL5)
Disk Subsystem: 1x72 GB 10 K SAS
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64) SP1
kernel 2.6.16.46-0.12-default
Compiler: The Portland Group (PGI)
PGI pgf90 7.1-0 Fortran Compiler
PGI pgcc 7.1-0 C Compiler
PGI pgCC 7.1-0 C++ Compiler
Auto Parallel: No
File System: ext2
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: none

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 669 20.3 667 20.4 669 20.3 640 21.2 643 21.1 640 21.2
416.gamess 1226 16.0 1228 15.9 1227 16.0 1207 16.2 1207 16.2 1211 16.2
433.milc 703 13.1 693 13.2 679 13.5 652 14.1 652 14.1 652 14.1
434.zeusmp 662 13.8 662 13.8 662 13.7 662 13.8 662 13.8 662 13.7
435.gromacs 549 13.0 550 13.0 549 13.0 455 15.7 455 15.7 455 15.7
436.cactusADM 923 12.9 914 13.1 956 12.5 923 12.9 914 13.1 956 12.5
437.leslie3d 713 13.2 725 13.0 721 13.0 713 13.2 725 13.0 721 13.0
444.namd 560 14.3 560 14.3 560 14.3 556 14.4 555 14.4 554 14.5
447.dealII 732 15.6 731 15.6 732 15.6 732 15.6 731 15.6 732 15.6
450.soplex 713 11.7 713 11.7 713 11.7 713 11.7 713 11.7 713 11.7
453.povray 304 17.5 303 17.6 304 17.5 304 17.5 303 17.5 305 17.5
454.calculix 557 14.8 557 14.8 556 14.8 557 14.8 557 14.8 556 14.8
459.GemsFDTD 818 13.0 818 13.0 820 12.9 818 13.0 818 13.0 820 12.9
465.tonto 654 15.0 653 15.1 653 15.1 638 15.4 635 15.5 636 15.5
470.lbm 812 16.9 821 16.7 844 16.3 835 16.5 851 16.1 857 16.0
481.wrf 682 16.4 681 16.4 681 16.4 667 16.8 667 16.8 668 16.7
482.sphinx3 1208 16.1 1215 16.0 1214 16.1 1208 16.1 1215 16.0 1214 16.1

Operating System Notes

Environment stack size set to 'unlimited'
ulimit -l set to 1048576
Set vm/nr_hugepages=1024 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages
Single-processor kernel used

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:8   -tp k8-64   -Bstatic_pgi

C++ benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:8   --zc_eh   -tp k8-64   -Bstatic_pgi

Fortran benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:8   -tp k8-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:8   -tp k8-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

Peak Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Mpfi(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mipa=noarg(pass 2)   -Mpfo(pass 2)   -fast   -O4   -Mdse   -Mfprelaxed   -Msmartalloc=huge:8   -tp k8-64   -Bstatic_pgi
470.lbm:  -fast   -Mfprelaxed   -Msmartalloc=huge:8   -Mipa=fast   -Mipa=noarg   -tp k8-64   -Bstatic_pgi
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fast   -O4   -Mfprelaxed   -Msmartalloc=huge:32   --zc_eh   -tp k8-64   -Bstatic_pgi
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -fast   -Mfprelaxed   -Msmartalloc=huge:32   -Mipa=fast   -Mipa=inline   --zc_eh   -tp k8-64   -Bstatic_pgi

Fortran benchmarks:

410.bwaves:  -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc   -tp k8-64   -Bstatic_pgi
416.gamess:  -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mvect=noaltcode   -Msmartalloc=huge:64   -tp k8-64   -Bstatic_pgi
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -fast   -Mfprelaxed   -Msmartalloc=huge:128   -Mipa=fast   -Mipa=inline   -Mvect=noaltcode   -tp k8-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

435.gromacs:  -fast   -O4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:16   -tp k8-64   -Mfpapprox=rsqrt   -Bstatic_pgi
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  -fast   -Mfprelaxed   -Msmartalloc=huge:32   -Mvect=noaltcode   -tp k8-64   -Bstatic_pgi

Peak Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-pgi710_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-pgi710_flags.xml.
