| CPU2006 license: | 3 | Test date: | Sep-2007 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Sep-2007 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5365 |
| CPU Characteristics: | 3.0 GHz, 2x4 MB L2 shared, 1333 MHz system bus |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 32 GB (8x4 GB PC2-5300F CL5) |
| Disk Subsystem: | 1x72 GB 15 K SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP1 kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070725 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Multi-user run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 binutils-2.17.50 |

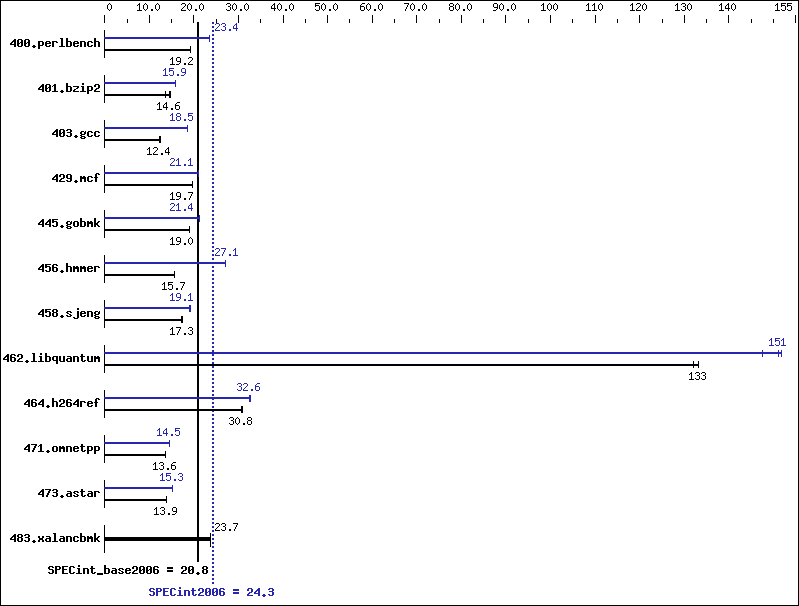

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 510 | 19.1 | 510 | 19.2 | 509 | 19.2 | 418 | 23.4 | 417 | 23.4 | 416 | 23.5 |
| 401.bzip2 | 704 | 13.7 | 661 | 14.6 | 657 | 14.7 | 608 | 15.9 | 608 | 15.9 | 608 | 15.9 |
| 403.gcc | 651 | 12.4 | 650 | 12.4 | 650 | 12.4 | 435 | 18.5 | 434 | 18.6 | 434 | 18.5 |
| 429.mcf | 463 | 19.7 | 464 | 19.7 | 465 | 19.6 | 434 | 21.0 | 432 | 21.1 | 432 | 21.1 |
| 445.gobmk | 551 | 19.0 | 551 | 19.0 | 551 | 19.0 | 491 | 21.4 | 491 | 21.4 | 491 | 21.4 |
| 456.hmmer | 593 | 15.7 | 593 | 15.7 | 594 | 15.7 | 345 | 27.0 | 344 | 27.1 | 344 | 27.1 |
| 458.sjeng | 698 | 17.3 | 695 | 17.4 | 702 | 17.2 | 632 | 19.1 | 631 | 19.2 | 635 | 19.1 |
| 462.libquantum | 155 | 133 | 157 | 132 | 156 | 133 | 140 | 148 | 137 | 152 | 137 | 151 |
| 464.h264ref | 715 | 30.9 | 721 | 30.7 | 719 | 30.8 | 679 | 32.6 | 681 | 32.5 | 679 | 32.6 |
| 471.omnetpp | 460 | 13.6 | 460 | 13.6 | 461 | 13.6 | 430 | 14.5 | 429 | 14.6 | 430 | 14.5 |
| 473.astar | 505 | 13.9 | 504 | 13.9 | 504 | 13.9 | 459 | 15.3 | 459 | 15.3 | 459 | 15.3 |
| 483.xalancbmk | 291 | 23.7 | 291 | 23.7 | 291 | 23.7 | 291 | 23.7 | 291 | 23.7 | 291 | 23.7 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 200M vm.max_map_count=131072
Platform Notes
BIOS configuration: Power Regulator set to Static High Performance Mode Adjacent Sector Prefetch Enabled Hardware Prefetcher Enabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
