SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL580 G4
(3.4 GHz, Intel Xeon processor 7140M)

SPECfp®2006 = 13.7

CPU2006 license: 3 Test date: Aug-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Aug-2006
Tested by: Hewlett-Packard Company Software Availability: May-2007

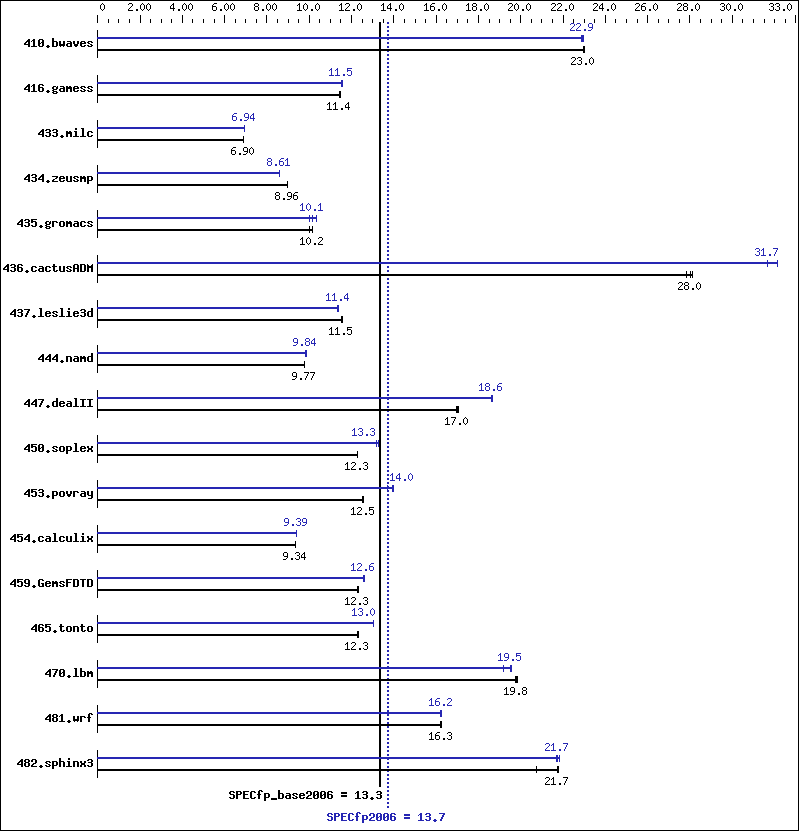

Benchmark results graph
Hardware
CPU Name: Intel Xeon 7140M
CPU Characteristics: 3.4 GHz, 800 MHz system bus
CPU MHz: 3400
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1,2,4 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 16 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (16x2 GB PC2-3200R)
Disk Subsystem: 1x72 GB 15 K SAS
Other Hardware: None
Software
Operating System: SuSE LinuxEnterprise Server 10 (x86_64)
kernel 2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for IA32/EM64T
applications, Version 10.0
Build 20070426 Package ID: l_cc_p_10.0.023
Intel Fortran Compiler for applications
running on Intel 64, Version 10.0
Build 20070426 Package ID: l_fc_p_10.0.023
Auto Parallel: Yes
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 590 23.0  591 23.0  591 23.0  591 23.0  594 22.9  593 22.9
416.gamess 1707 11.5  1714 11.4  1717 11.4  1698 11.5  1698 11.5  1695 11.5
433.milc 1330 6.90 1330 6.90 1331 6.90 1322 6.94 1322 6.95 1323 6.94
434.zeusmp 1015 8.96 1015 8.97 1015 8.96 1057 8.61 1057 8.61 1057 8.61
435.gromacs 702 10.2  702 10.2  715 9.99 714 10.0  692 10.3  704 10.1
436.cactusADM 429 27.8  427 28.0  425 28.1  377 31.7  372 32.2  377 31.7
437.leslie3d 817 11.5  812 11.6  815 11.5  824 11.4  825 11.4  828 11.4
444.namd 820 9.78 821 9.77 822 9.76 815 9.84 814 9.85 815 9.84
447.dealII 674 17.0  672 17.0  672 17.0  614 18.6  614 18.6  614 18.6
450.soplex 679 12.3  679 12.3  679 12.3  629 13.3  629 13.3  633 13.2
453.povray 425 12.5  424 12.5  424 12.6  381 14.0  388 13.7  381 14.0
454.calculix 882 9.35 884 9.34 883 9.34 879 9.39 878 9.40 879 9.39
459.GemsFDTD 863 12.3  862 12.3  862 12.3  843 12.6  843 12.6  844 12.6
465.tonto 799 12.3  802 12.3  803 12.3  754 13.1  754 13.0  756 13.0
470.lbm 693 19.8  694 19.8  695 19.8  702 19.6  704 19.5  716 19.2
481.wrf 687 16.3  687 16.3  689 16.2  688 16.2  688 16.2  689 16.2
482.sphinx3 939 20.8  897 21.7  895 21.8  898 21.7  896 21.7  892 21.8

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 OMP_NUM_THREADS set to number of cores

Platform Notes

 BIOS configuration:
  Power Regulator Disabled
  Adjacent Sector Prefetch Enabled
  Hardware Prefetcher Enabled
  Hyper-Threading Technology Disabled

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xP   -ipo   -O3   -static   -no-prec-div

C++ benchmarks:

 -xP   -ipo   -O3   -static   -no-prec-div

Fortran benchmarks:

 -xP   -ipo   -O3   -static   -no-prec-div   -parallel

Benchmarks using both Fortran and C:

 -xP   -ipo   -O3   -static   -no-prec-div   -parallel

Peak Compiler Invocation

C benchmarks (except as noted below):

 /opt/intel/cc/10.0.023/bin/icc   -L/opt/intel/cc/10.0.023/lib   -I/opt/intel/cc/10.0.023/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/10.0.023/bin/icpc   -L/opt/intel/cc/10.0.023/lib   -I/opt/intel/cc/10.0.023/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /opt/intel/fc/10.0.023/bin/ifort   -L/opt/intel/fc/10.0.023/lib   -I/opt/intel/fc/10.0.023/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -fno-alias
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -unroll2   -no-scalar-rep   -prefetch
482.sphinx3:  -xP   -ipo   -O3   -static   -no-prec-div   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -unroll2   -ansi-alias   -no-scalar-rep
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -xP   -ipo   -O3   -static   -no-prec-div   -parallel
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -unroll2   -Ob0   -ansi-alias   -no-scalar-rep
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -parallel
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -unroll2   -Ob0   -parallel
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -unroll4

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -fno-alias
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -static   -no-prec-div   -unroll2   -auto-ilp32   -parallel
454.calculix:  -xP   -ipo   -O3   -static   -no-prec-div   -auto-ilp32
481.wrf:  -xP   -ipo   -O3   -static   -no-prec-div   -auto-ilp32   -parallel

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-ic10-flags.20090714.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-ic10-flags.20090714.00.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 14:03:19 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 2 October 2007.
