SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL380 G5
(2.66 GHz, Intel Xeon processor 5150)

CPU2006 license: 3 Test date: Aug-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Jun-2006
Tested by: Hewlett-Packard Company Software Availability: Nov-2007

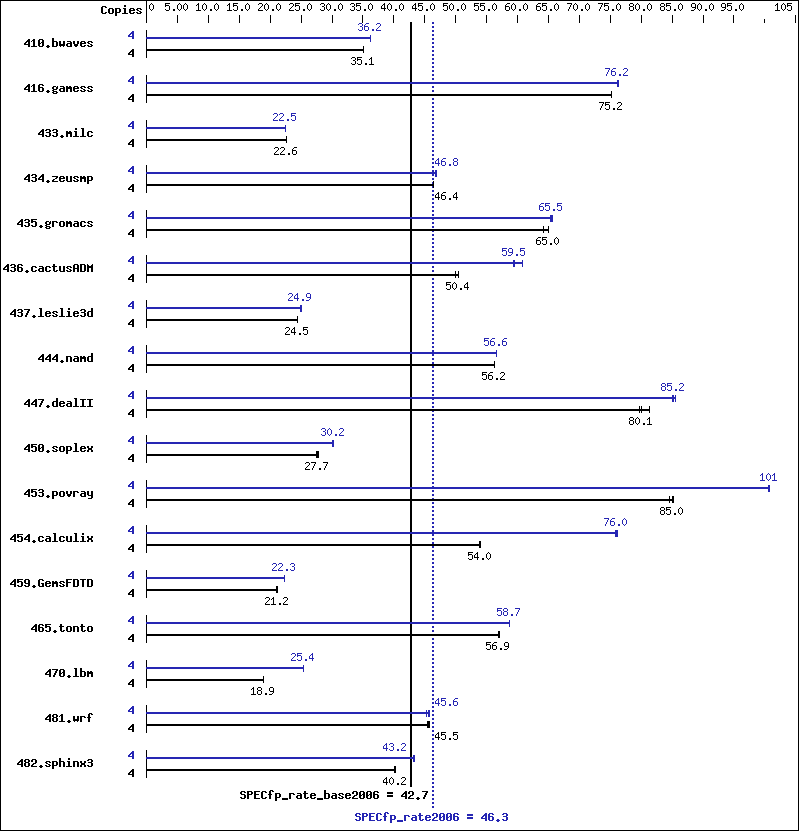

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5150
CPU Characteristics: 2.66 GHz, 2x4 MB L2 shared, 1333 MHz system bus
CPU MHz: 2666
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1 or 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (8x1 GB PC2-5300F CL5)
Disk Subsystem: 1x72 GB 10 K SAS
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64) SP1
kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ and Fortran Compiler for Linux32 and
Linux64 version 10.1
Build 20070725
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils-2.17.50

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1549 35.1 1549 35.1 1549 35.1 4 1502 36.2 1503 36.2 1501 36.2
416.gamess 4 1042 75.2 1041 75.3 1042 75.1 4 1028 76.2 1028 76.2 1027 76.3
433.milc 4 1624 22.6 1624 22.6 1623 22.6 4 1631 22.5 1631 22.5 1632 22.5
434.zeusmp 4 784 46.4 784 46.4 784 46.4 4 777 46.8 777 46.8 778 46.8
435.gromacs 4 439 65.0 439 65.0 445 64.2 4 436 65.5 435 65.7 437 65.4
436.cactusADM 4 956 50.0 948 50.4 947 50.5 4 804 59.4 787 60.7 803 59.5
437.leslie3d 4 1535 24.5 1538 24.5 1538 24.4 4 1507 24.9 1504 25.0 1509 24.9
444.namd 4 571 56.2 570 56.2 570 56.3 4 567 56.6 567 56.6 567 56.6
447.dealII 4 571 80.1 574 79.8 562 81.4 4 538 85.0 534 85.6 537 85.2
450.soplex 4 1202 27.7 1206 27.7 1211 27.6 4 1105 30.2 1108 30.1 1102 30.3
453.povray 4 252 84.6 250 85.2 250 85.0 4 211 101   211 101   212 101
454.calculix 4 611 54.0 612 54.0 612 53.9 4 434 76.0 434 76.1 435 75.9
459.GemsFDTD 4 2014 21.1 1999 21.2 1996 21.3 4 1907 22.3 1905 22.3 1904 22.3
465.tonto 4 692 56.9 690 57.1 692 56.9 4 671 58.6 670 58.7 670 58.8
470.lbm 4 2902 18.9 2902 18.9 2902 18.9 4 2165 25.4 2164 25.4 2165 25.4
481.wrf 4 981 45.5 977 45.7 982 45.5 4 978 45.7 986 45.3 981 45.6
482.sphinx3 4 1941 40.2 1938 40.2 1938 40.2 4 1805 43.2 1801 43.3 1804 43.2

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs
 KMP_AFFINITY set to physical,0
 KMP_STACKSIZE set to 200M

Platform Notes

BIOS configuration:
  Power Regulator set to Static High Performance Mode

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks (except as noted below):

 /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/bin/icc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/bin/icpc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/bin/ifort   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast   -prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -opt-malloc-options=3
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  -fast   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/HP-Intel-ic10.1-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/HP-Intel-ic10.1-linux-flags.xml.
