SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale R440
(Intel Xeon processor E5320,1.86GHz)

SPECint®2006 = 14.0

CPU2006 license: 20 Test date: Jul-2007
Test sponsor: Bull SAS Hardware Availability: Mar-2007
Tested by: Bull SAS Software Availability: May-2007

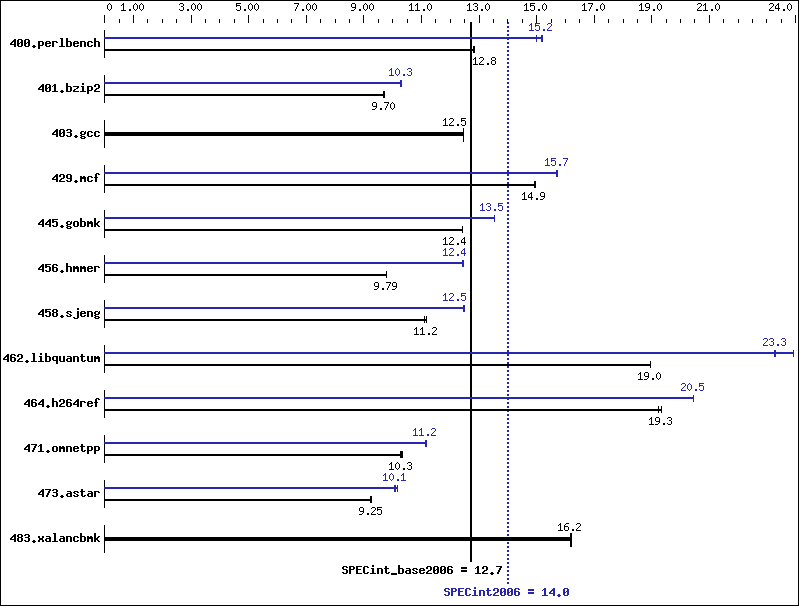

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5320
CPU Characteristics: 1.86 GHz, 8 MB L2, 1066 MHz system bus
CPU MHz: 1866
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1 to 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 12 GB (12x1 GB) FB-DIMM PC2-4200F ECC CL4
Disk Subsystem: 1x73 GB SAS, 15000 RPM
Other Hardware: None
Software
Operating System: SUSE LINUX Enterprise Server 10
Kernel 2.6.16.21-0.8-smp for x86_64
Compiler: Intel C++ Compiler for Linux32 and Linux64
version 10.0
Build 20070426 Package ID: l_cc_p_10.0.023
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap library V8.1
Binutils 2.17.50.0.15

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 762 12.8  762 12.8  763 12.8  644 15.2 651 15.0 642 15.2
401.bzip2 998 9.67 992 9.73 995 9.70 938 10.3 938 10.3 938 10.3
403.gcc 645 12.5  645 12.5  645 12.5  645 12.5 645 12.5 645 12.5
429.mcf 611 14.9  610 14.9  610 14.9  580 15.7 581 15.7 580 15.7
445.gobmk 845 12.4  845 12.4  845 12.4  775 13.5 774 13.5 774 13.6
456.hmmer 952 9.80 953 9.79 953 9.79 750 12.4 750 12.4 750 12.4
458.sjeng 1088 11.1  1083 11.2  1084 11.2  969 12.5 970 12.5 969 12.5
462.libquantum 1093 19.0  1093 19.0  1093 19.0  866 23.9 890 23.3 890 23.3
464.h264ref 1145 19.3  1150 19.2  1144 19.3  1083 20.4 1081 20.5 1082 20.5
471.omnetpp 605 10.3  606 10.3  608 10.3  560 11.2 559 11.2 560 11.2
473.astar 761 9.23 759 9.25 759 9.25 690 10.2 699 10.0 696 10.1
483.xalancbmk 425 16.2  426 16.2  427 16.2  425 16.2 426 16.2 427 16.2

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

 All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer,
 for peak, are compiled in 64-bit mode

General Notes


 The NovaScale R440 and the NovaScale R460 models are
 electronically equivalent.
 The results have been measured on a NovaScale R460 model.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/spec/cpu2006/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.0.023/bin/icc   -L/opt/intel/cce/10.0.023/lib   -I/opt/intel/cce/10.0.023/include
456.hmmer:  /opt/intel/cce/10.0.023/bin/icc   -L/opt/intel/cce/10.0.023/lib   -I/opt/intel/cce/10.0.023/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
403.gcc:  basepeak = yes
429.mcf:  -fast   -prefetch
445.gobmk:  -prof_gen(pass 1)   -prof_use(pass 2)   -xT   -O2   -ipo   -no-prec_div   -ansi-alias
456.hmmer:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll2   -ansi-alias
458.sjeng:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll4
462.libquantum:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always
464.h264ref:  Same as 456.hmmer

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -xT   -O3   -ipo   -no-prec_div   -ansi-alias   -Wl,-z,muldefs   -L/spec/cpu2006/lib -lsmartheap
473.astar:  Same as 471.omnetpp
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/EM64T_Intel100_flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/EM64T_Intel100_flags.20090714.xml.
