| CPU2006 license: | 20 | Test date: | Jul-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Mar-2007 |
| Tested by: | Bull SAS | Software Availability: | May-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5335 |
| CPU Characteristics: | 2.00 GHz, 8 MB L2, 1333 MHz system bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 12 GB (12x1 GB) FB-DIMM PC2-4200F ECC CL4 |
| Disk Subsystem: | 1x73 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE LINUX Enterprise Server 10 Kernel 2.6.16.21-0.8-smp for x86_64 |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023 |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Multi-user run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap library V8.1 Binutils 2.17.50.0.15 |

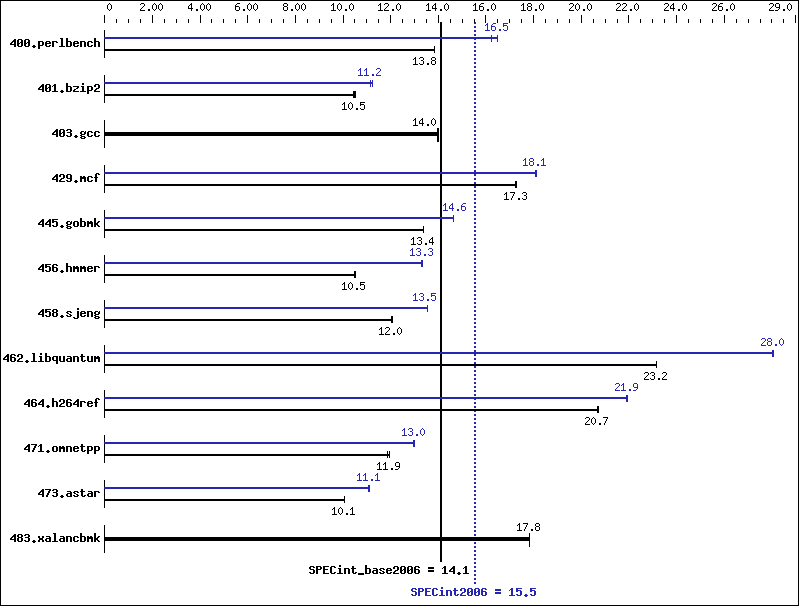

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 705 | 13.9 | 707 | 13.8 | 706 | 13.8 | 593 | 16.5 | 593 | 16.5 | 602 | 16.2 |
| 401.bzip2 | 924 | 10.4 | 916 | 10.5 | 922 | 10.5 | 860 | 11.2 | 864 | 11.2 | 865 | 11.2 |
| 403.gcc | 576 | 14.0 | 577 | 14.0 | 575 | 14.0 | 576 | 14.0 | 577 | 14.0 | 575 | 14.0 |
| 429.mcf | 528 | 17.3 | 528 | 17.3 | 528 | 17.3 | 504 | 18.1 | 504 | 18.1 | 505 | 18.1 |
| 445.gobmk | 784 | 13.4 | 784 | 13.4 | 783 | 13.4 | 717 | 14.6 | 717 | 14.6 | 717 | 14.6 |
| 456.hmmer | 889 | 10.5 | 888 | 10.5 | 889 | 10.5 | 701 | 13.3 | 700 | 13.3 | 699 | 13.3 |
| 458.sjeng | 1003 | 12.1 | 1005 | 12.0 | 1005 | 12.0 | 893 | 13.6 | 894 | 13.5 | 893 | 13.5 |
| 462.libquantum | 894 | 23.2 | 894 | 23.2 | 894 | 23.2 | 739 | 28.1 | 739 | 28.0 | 739 | 28.0 |
| 464.h264ref | 1070 | 20.7 | 1068 | 20.7 | 1070 | 20.7 | 1009 | 21.9 | 1009 | 21.9 | 1011 | 21.9 |
| 471.omnetpp | 527 | 11.9 | 523 | 12.0 | 523 | 11.9 | 482 | 13.0 | 481 | 13.0 | 482 | 13.0 |
| 473.astar | 698 | 10.1 | 698 | 10.1 | 697 | 10.1 | 634 | 11.1 | 632 | 11.1 | 631 | 11.1 |
| 483.xalancbmk | 387 | 17.8 | 387 | 17.8 | 387 | 17.8 | 387 | 17.8 | 387 | 17.8 | 387 | 17.8 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode
General Notes
The NovaScale R440 and the NovaScale R460 models are electronically equivalent. The results have been measured on a NovaScale R460 model.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof_gen(pass 1) -prof_use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof_gen(pass 1) -prof_use(pass 2) -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof_gen(pass 1) -prof_use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
| 456.hmmer: | -prof_gen(pass 1) -prof_use(pass 2) -fast -unroll2 -ansi-alias |
| 458.sjeng: | -prof_gen(pass 1) -prof_use(pass 2) -fast -unroll4 |
| 462.libquantum: | -prof_gen(pass 1) -prof_use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | -prof_gen(pass 1) -prof_use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | basepeak = yes |
