SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/140Hf
(Intel Xeon processor 7140M)

CPU2006 license: 9006 Test date: Sep-2007
Test sponsor: NEC Corporation Hardware Availability: Oct-2006
Tested by: NEC Corporation Software Availability: Apr-2007

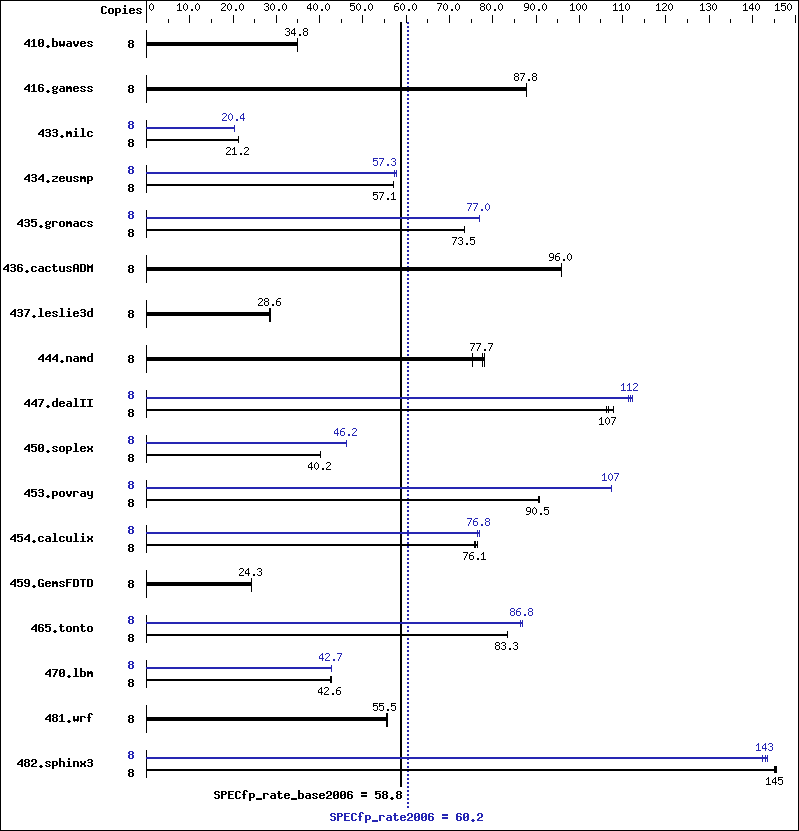

Benchmark results graph
Hardware
CPU Name: Intel Xeon 7140M
CPU Characteristics: 3.40 GHz, 800MHz bus
CPU MHz: 3400
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip
CPU(s) orderable: 1,2,4 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 16 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (16x2 GB PC2-3200R, 2 rank, CL3-3-3,
ECC)
Disk Subsystem: 1x146.5 GB SAS, 15000RPM
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp on an x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 9.1 - Build 20070320, Package-ID:
l_cc_c_9.1.049
Intel Fortran Compiler for IA32/EM64T application,
Version 9.1 - Build 20070320, Package ID:
l_fc_c_9.1.045
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3120 34.8 3120 34.8 3125 34.8 8 3120 34.8 3120 34.8 3125 34.8
416.gamess 8 1783 87.9 1785 87.8 1783 87.8 8 1783 87.9 1785 87.8 1783 87.8
433.milc 8 3465 21.2 3468 21.2 3465 21.2 8 3604 20.4 3606 20.4 3604 20.4
434.zeusmp 8 1275 57.1 1275 57.1 1275 57.1 8 1261 57.7 1270 57.3 1271 57.3
435.gromacs 8 777 73.5 776 73.6 777 73.5 8 743 76.9 742 77.0 742 77.0
436.cactusADM 8 996 96.0 996 96.0 996 96.0 8 996 96.0 996 96.0 996 96.0
437.leslie3d 8 2636 28.5 2628 28.6 2627 28.6 8 2636 28.5 2628 28.6 2627 28.6
444.namd 8 852 75.3 823 78.0 826 77.7 8 852 75.3 823 78.0 826 77.7
447.dealII 8 860 106   849 108   857 107   8 821 111   818 112   815 112
450.soplex 8 1658 40.2 1659 40.2 1662 40.1 8 1443 46.2 1444 46.2 1444 46.2
453.povray 8 470 90.5 469 90.7 470 90.5 8 396 107   396 108   396 107
454.calculix 8 867 76.1 870 75.8 862 76.5 8 863 76.5 859 76.8 857 77.0
459.GemsFDTD 8 3500 24.3 3502 24.2 3499 24.3 8 3500 24.3 3502 24.2 3499 24.3
465.tonto 8 945 83.3 945 83.3 945 83.3 8 907 86.8 907 86.8 911 86.4
470.lbm 8 2573 42.7 2580 42.6 2583 42.6 8 2572 42.7 2572 42.7 2573 42.7
481.wrf 8 1608 55.6 1610 55.5 1610 55.5 8 1608 55.6 1610 55.5 1610 55.5
482.sphinx3 8 1072 145   1071 146   1075 145   8 1086 144   1095 142   1091 143

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 800 MHz

 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

 BIOS Configuration:
 Hyper-Threading Technology = Disabled

 The Express5800/140Hf and the Express5800/140Re-4 models are
 electronically equivalent.
 The results have been measured on a Express5800/140Re-4 model.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 /opt/intel/cc/9.1.049/bin/icc   -I/opt/intel/cc/9.1.049/include   -L/opt/intel/cc/9.1.049/lib

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/9.1.049/bin/icpc   -I/opt/intel/cc/9.1.049/include   -L/opt/intel/cc/9.1.049/lib

Fortran benchmarks (except as noted below):

 ifort
434.zeusmp:  /opt/intel/fc/9.1.045/bin/ifort   -I/opt/intel/fc/9.1.045/include   -L/opt/intel/fc/9.1.045/lib

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
470.lbm:  Same as 433.milc
482.sphinx3:  -fast

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  -fast
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

435.gromacs:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
436.cactusADM:  basepeak = yes
454.calculix:  Same as 435.gromacs
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic91-FP-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic91-FP-linux-flags.xml.
