SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/140Hf
(Intel Xeon processor 7140M)

SPECint®2006 = 12.8

CPU2006 license: 9006 Test date: Sep-2007
Test sponsor: NEC Corporation Hardware Availability: Oct-2006
Tested by: NEC Corporation Software Availability: Jun-2007

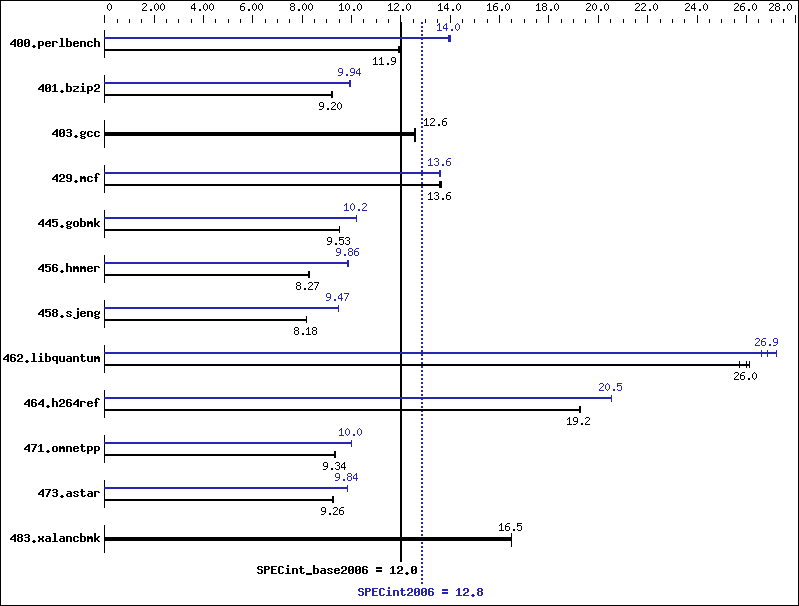

Benchmark results graph
Hardware
CPU Name: Intel Xeon 7140M
CPU Characteristics: 3.40 GHz, 800MHz bus
CPU MHz: 3400
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1,2,4 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 16 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (16x2 GB PC2-3200R, 2 rank, CL3-3-3,
ECC)
Disk Subsystem: 1x146.5 GB SAS, 15000RPM
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp for x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 10.0 - Build 20070426 Package ID:
l_cc_p_10.0.023
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap library 8.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 820 11.9  817 12.0  820 11.9  702 13.9  699 14.0  697 14.0
401.bzip2 1053 9.17 1047 9.21 1049 9.20 970 9.95 972 9.93 970 9.94
403.gcc 640 12.6  641 12.6  640 12.6  640 12.6  641 12.6  640 12.6
429.mcf 669 13.6  671 13.6  672 13.6  670 13.6  671 13.6  670 13.6
445.gobmk 1101 9.53 1103 9.51 1101 9.53 1030 10.2  1029 10.2  1029 10.2
456.hmmer 1127 8.28 1129 8.26 1128 8.27 946 9.86 948 9.84 946 9.86
458.sjeng 1479 8.18 1479 8.18 1480 8.18 1277 9.47 1278 9.47 1275 9.49
462.libquantum 793 26.1  805 25.7  797 26.0  771 26.9  779 26.6  761 27.2
464.h264ref 1149 19.3  1151 19.2  1150 19.2  1077 20.5  1078 20.5  1078 20.5
471.omnetpp 668 9.35 669 9.34 670 9.33 625 10.0  626 9.98 625 10.0
473.astar 758 9.26 760 9.24 758 9.26 715 9.82 713 9.85 713 9.84
483.xalancbmk 419 16.5  419 16.5  419 16.5  419 16.5  419 16.5  419 16.5

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

General Notes


All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer,
for peak, are compiled in 64-bit mode

 The Express5800/140Hf and the Express5800/140Re-4 models are
 electronically equivalent.
 The results have been measured on a Express5800/140Re-4 model.

Base Compiler Invocation

C benchmarks:

 icc   -static(*)

C++ benchmarks:

 icpc

(*) Indicates a compiler flag that was found in a non-compiler variable.

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xP   -ipo   -O3   -no-prec-div

C++ benchmarks:

 -xP   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc   -static(*)
401.bzip2:  /opt/intel/cce/10.0.023/bin/icc   -L/opt/intel/cce/10.0.023/lib   -I/opt/intel/cce/10.0.023/include
445.gobmk:  icc
456.hmmer:  /opt/intel/cce/10.0.023/bin/icc   -L/opt/intel/cce/10.0.023/lib   -I/opt/intel/cce/10.0.023/include   -static(*)

C++ benchmarks:

 icpc

(*) Indicates a compiler flag that was found in a non-compiler variable.

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -ansi-alias   -prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div
403.gcc:  basepeak = yes
429.mcf:  -xP   -ipo   -O3   -no-prec-div   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -O2   -ipo   -no-prec_div   -ansi-alias
456.hmmer:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -unroll2   -ansi-alias
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -unroll4
462.libquantum:  Same as 458.sjeng
464.h264ref:  Same as 456.hmmer

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -O3   -ipo   -no-prec_div   -ansi-alias   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:  Same as 471.omnetpp
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic10-ia32-intel64-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic10-ia32-intel64-linux-flags.xml.
