SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale T860
(Intel Xeon processor E5320,1.86GHz)

SPECint®2006 = 14.0

CPU2006 license: 20 Test date: Aug-2007
Test sponsor: Bull SAS Hardware Availability: Mar-2007
Tested by: Bull SAS Software Availability: May-2007

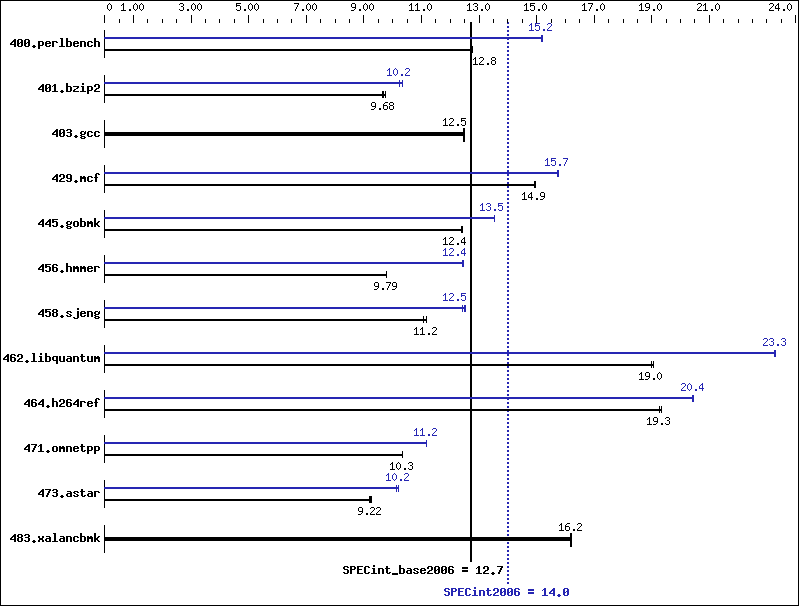

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5320
CPU Characteristics: 1.86 GHz, 8 MB L2, 1066 MHz system bus
CPU MHz: 1860
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1 to 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 12 GB (12x1 GB) FB-DIMM PC2-4200F ECC CL4
Disk Subsystem: 1x147 GB SAS, 15000 RPM
Other Hardware: None
Software
Operating System: SUSE LINUX Enterprise Server 10
Kernel 2.6.16.21-0.8-smp for x86_64
Compiler: Intel C++ Compiler for Linux32 and Linux64
version 10.0
Build 20070426 Package ID: l_cc_p_10.0.023
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap library V8.1
Binutils 2.17.50.0.15

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 764 12.8  766 12.8  766 12.8  644 15.2 643 15.2 643 15.2
401.bzip2 997 9.68 990 9.75 1001 9.64 943 10.2 935 10.3 942 10.2
403.gcc 645 12.5  646 12.5  645 12.5  645 12.5 646 12.5 645 12.5
429.mcf 611 14.9  610 15.0  611 14.9  580 15.7 580 15.7 579 15.7
445.gobmk 846 12.4  846 12.4  845 12.4  775 13.5 775 13.5 774 13.6
456.hmmer 953 9.79 953 9.79 954 9.78 750 12.4 749 12.5 751 12.4
458.sjeng 1094 11.1  1084 11.2  1082 11.2  968 12.5 973 12.4 967 12.5
462.libquantum 1091 19.0  1091 19.0  1088 19.0  890 23.3 890 23.3 890 23.3
464.h264ref 1145 19.3  1148 19.3  1148 19.3  1085 20.4 1083 20.4 1083 20.4
471.omnetpp 605 10.3  605 10.3  605 10.3  559 11.2 559 11.2 560 11.2
473.astar 762 9.21 761 9.22 758 9.26 692 10.1 688 10.2 687 10.2
483.xalancbmk 425 16.2  425 16.2  427 16.2  425 16.2 425 16.2 427 16.2

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer,
for peak, are compiled in 64-bit mode

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/spec/cpu2006/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.0.023/bin/icc   -L/opt/intel/cce/10.0.023/lib   -I/opt/intel/cce/10.0.023/include
456.hmmer:  /opt/intel/cce/10.0.023/bin/icc   -L/opt/intel/cce/10.0.023/lib   -I/opt/intel/cce/10.0.023/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
403.gcc:  basepeak = yes
429.mcf:  -fast   -prefetch
445.gobmk:  -prof_gen(pass 1)   -prof_use(pass 2)   -xT   -O2   -ipo   -no-prec_div   -ansi-alias
456.hmmer:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll2   -ansi-alias
458.sjeng:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll4
462.libquantum:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always
464.h264ref:  Same as 456.hmmer

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -xT   -O3   -ipo   -no-prec_div   -ansi-alias   -Wl,-z,muldefs   -L/spec/cpu2006/lib -lsmartheap
473.astar:  Same as 471.omnetpp
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/EM64T_Intel100_flags.20090714.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/EM64T_Intel100_flags.20090714.01.xml.
