| CPU2006 license: | 20 | Test date: | Sep-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Mar-2007 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5320 |
| CPU Characteristics: | 1.86 GHz, 8 MB L2, 1066 MHz system bus |
| CPU MHz: | 1860 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB) FB-DIMM PC2-4200F ECC CL4 |
| Disk Subsystem: | 1x73 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition X64 Edition Service Pack1 |
| Compiler: | Intel C++ Compiler for EM64T version 9.1 Package ID W_CC_C_9.1.033 Build no 20061104 Intel Fortran Compiler for EM64T version 9.1 Package ID W_FC_C_9.1.033 Build no 20061104 Microsoft Visual Studio 2005 (lib & linker) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

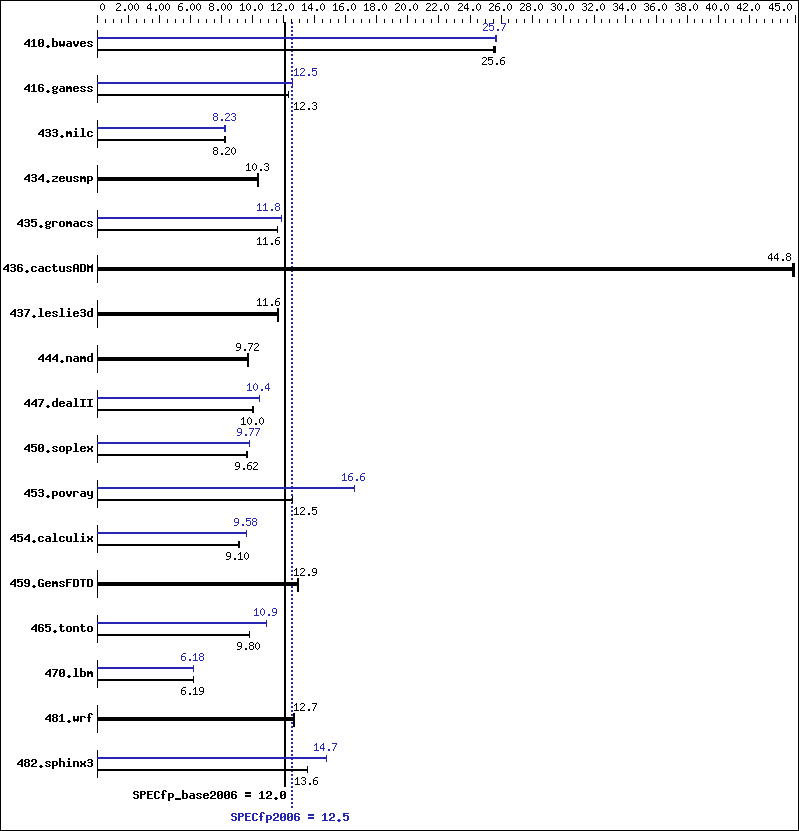

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 530 | 25.7 | 531 | 25.6 | 532 | 25.5 | 530 | 25.7 | 529 | 25.7 | 530 | 25.6 |
| 416.gamess | 1596 | 12.3 | 1595 | 12.3 | 1595 | 12.3 | 1563 | 12.5 | 1563 | 12.5 | 1563 | 12.5 |
| 433.milc | 1119 | 8.20 | 1114 | 8.24 | 1122 | 8.18 | 1120 | 8.20 | 1115 | 8.23 | 1115 | 8.23 |
| 434.zeusmp | 881 | 10.3 | 879 | 10.3 | 879 | 10.3 | 881 | 10.3 | 879 | 10.3 | 879 | 10.3 |
| 435.gromacs | 617 | 11.6 | 617 | 11.6 | 617 | 11.6 | 604 | 11.8 | 604 | 11.8 | 604 | 11.8 |
| 436.cactusADM | 267 | 44.8 | 266 | 44.8 | 266 | 44.9 | 267 | 44.8 | 266 | 44.8 | 266 | 44.9 |
| 437.leslie3d | 811 | 11.6 | 812 | 11.6 | 807 | 11.6 | 811 | 11.6 | 812 | 11.6 | 807 | 11.6 |
| 444.namd | 828 | 9.68 | 825 | 9.72 | 825 | 9.72 | 828 | 9.68 | 825 | 9.72 | 825 | 9.72 |
| 447.dealII | 1143 | 10.0 | 1143 | 10.0 | 1143 | 10.0 | 1096 | 10.4 | 1096 | 10.4 | 1096 | 10.4 |
| 450.soplex | 867 | 9.62 | 867 | 9.62 | 867 | 9.62 | 854 | 9.77 | 854 | 9.77 | 854 | 9.77 |
| 453.povray | 424 | 12.5 | 425 | 12.5 | 424 | 12.5 | 321 | 16.6 | 321 | 16.6 | 321 | 16.6 |
| 454.calculix | 905 | 9.11 | 906 | 9.10 | 906 | 9.10 | 861 | 9.58 | 861 | 9.58 | 861 | 9.58 |
| 459.GemsFDTD | 821 | 12.9 | 822 | 12.9 | 822 | 12.9 | 821 | 12.9 | 822 | 12.9 | 822 | 12.9 |
| 465.tonto | 1006 | 9.78 | 1004 | 9.80 | 1005 | 9.80 | 903 | 10.9 | 903 | 10.9 | 903 | 10.9 |
| 470.lbm | 2220 | 6.19 | 2220 | 6.19 | 2220 | 6.19 | 2223 | 6.18 | 2223 | 6.18 | 2223 | 6.18 |
| 481.wrf | 882 | 12.7 | 884 | 12.6 | 882 | 12.7 | 882 | 12.7 | 884 | 12.6 | 882 | 12.7 |
| 482.sphinx3 | 1438 | 13.6 | 1438 | 13.6 | 1438 | 13.6 | 1323 | 14.7 | 1324 | 14.7 | 1322 | 14.7 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -D_Complex= -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -D_Complex= -DSPEC_CPU_P64 |
| 436.cactusADM: | -D_Complex= -DSPEC_CPU_P64 -Qlowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -D_Complex= -DSPEC_CPU_P64 -DBOOST_NO_INTRINSIC_WCHAR_T -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -D_Complex= -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -D_Complex= -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -D_Complex= -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -fast -Qparallel shlw32m.lib -link -FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qparallel -Qcxx-features shlw32m.lib -link -FORCE:MULTIPLE |
Fortran benchmarks:
| -fast -Qparallel -link -FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast -Qparallel -link -FORCE:MULTIPLE |
Base Other Flags
C benchmarks:
| -F950000000 |
C++ benchmarks:
| -F950000000 |
Fortran benchmarks:
| -F950000000 |
Benchmarks using both Fortran and C:
| -F950000000 |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -link -FORCE:MULTIPLE |
C++ benchmarks:
| 444.namd: | basepeak = yes |
| 447.dealII: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx-features -link -FORCE:MULTIPLE |
| 450.soplex: | Same as 447.dealII |
| 453.povray: | Same as 447.dealII |
Fortran benchmarks:
| 410.bwaves: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qparallel -link -FORCE:MULTIPLE |
| 416.gamess: | -fast -link -FORCE:MULTIPLE |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -link -FORCE:MULTIPLE |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | Same as 435.gromacs |
| 481.wrf: | basepeak = yes |
