| CPU2006 license: | 11 | Test date: | Sep-2007 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Apr-2007 |
| Tested by: | IBM Corporation | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5355 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2GB DRR2-5300F ECC) |
| Disk Subsystem: | 1 x 36 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SLES 10 (x86_64), 2.6.16.21-0.8-smp |
| Compiler: | Intel C++ Compiler for Linux version 10.1 Build 20070824 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap 8.1 |

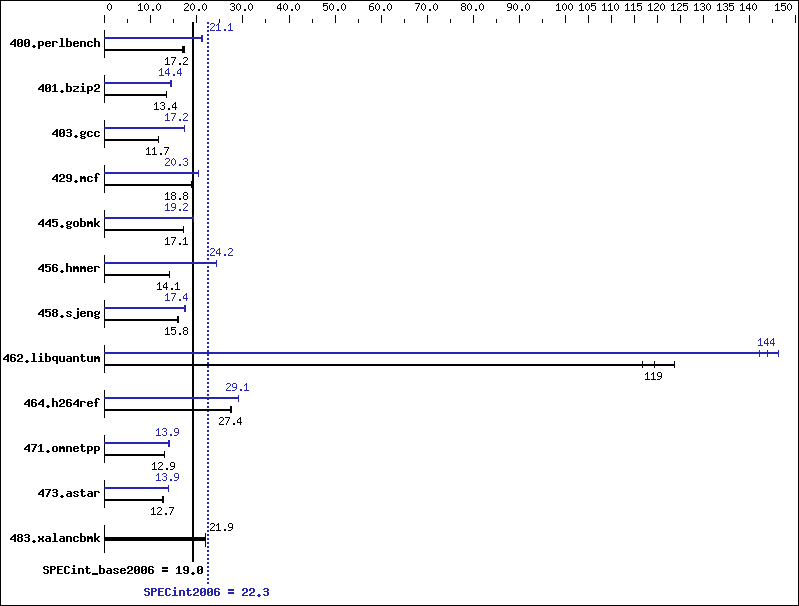

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 575 | 17.0 | 567 | 17.2 | 568 | 17.2 | 465 | 21.0 | 463 | 21.1 | 464 | 21.1 |
| 401.bzip2 | 720 | 13.4 | 723 | 13.3 | 721 | 13.4 | 669 | 14.4 | 672 | 14.4 | 670 | 14.4 |
| 403.gcc | 687 | 11.7 | 687 | 11.7 | 687 | 11.7 | 467 | 17.2 | 467 | 17.2 | 467 | 17.2 |
| 429.mcf | 478 | 19.1 | 487 | 18.7 | 486 | 18.8 | 449 | 20.3 | 448 | 20.4 | 448 | 20.3 |
| 445.gobmk | 615 | 17.1 | 615 | 17.1 | 615 | 17.1 | 546 | 19.2 | 546 | 19.2 | 546 | 19.2 |
| 456.hmmer | 664 | 14.1 | 664 | 14.1 | 664 | 14.0 | 386 | 24.2 | 386 | 24.2 | 386 | 24.2 |
| 458.sjeng | 757 | 16.0 | 764 | 15.8 | 764 | 15.8 | 696 | 17.4 | 691 | 17.5 | 697 | 17.4 |
| 462.libquantum | 177 | 117 | 174 | 119 | 168 | 124 | 144 | 144 | 146 | 142 | 142 | 146 |
| 464.h264ref | 806 | 27.5 | 808 | 27.4 | 807 | 27.4 | 760 | 29.1 | 761 | 29.1 | 760 | 29.1 |
| 471.omnetpp | 484 | 12.9 | 485 | 12.9 | 485 | 12.9 | 450 | 13.9 | 449 | 13.9 | 448 | 14.0 |
| 473.astar | 556 | 12.6 | 555 | 12.7 | 554 | 12.7 | 505 | 13.9 | 504 | 13.9 | 504 | 13.9 |
| 483.xalancbmk | 315 | 21.9 | 315 | 21.9 | 316 | 21.9 | 315 | 21.9 | 315 | 21.9 | 316 | 21.9 |
General Notes
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 32M
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
