| CPU2006 license: | 3 | Test date: | Sep-2007 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Jun-2006 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5130 |
| CPU Characteristics: | 2.0 GHz, 4 MB L2 shared, 1333 MHz system bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1 or 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB PC2-5300F CL5) |
| Disk Subsystem: | 1x72 GB 10 K SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP1 kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070824 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Multi-user run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 binutils-2.17.50 |

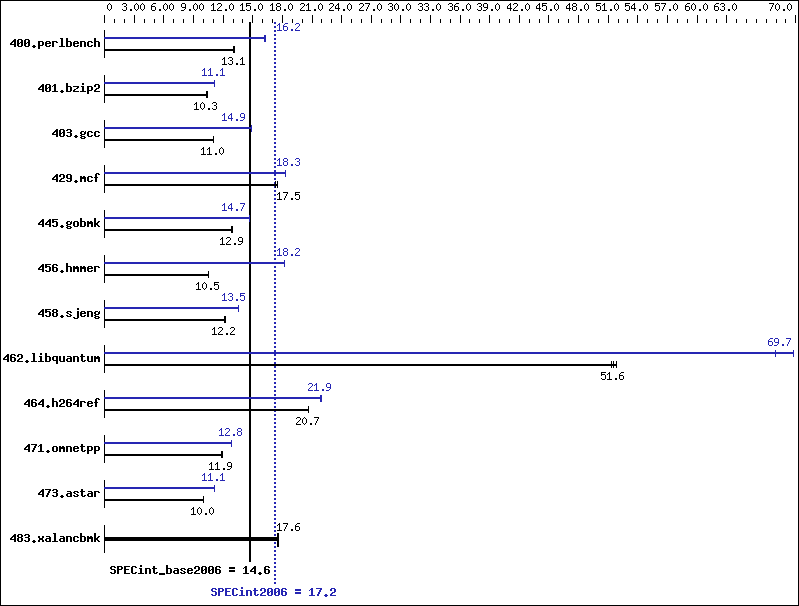

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 743 | 13.2 | 743 | 13.1 | 752 | 13.0 | 602 | 16.2 | 601 | 16.3 | 602 | 16.2 |
| 401.bzip2 | 937 | 10.3 | 927 | 10.4 | 933 | 10.3 | 868 | 11.1 | 868 | 11.1 | 870 | 11.1 |
| 403.gcc | 732 | 11.0 | 732 | 11.0 | 731 | 11.0 | 541 | 14.9 | 540 | 14.9 | 541 | 14.9 |
| 429.mcf | 520 | 17.5 | 527 | 17.3 | 521 | 17.5 | 498 | 18.3 | 497 | 18.3 | 498 | 18.3 |
| 445.gobmk | 814 | 12.9 | 813 | 12.9 | 814 | 12.9 | 715 | 14.7 | 715 | 14.7 | 716 | 14.7 |
| 456.hmmer | 884 | 10.6 | 885 | 10.5 | 885 | 10.5 | 513 | 18.2 | 513 | 18.2 | 513 | 18.2 |
| 458.sjeng | 994 | 12.2 | 994 | 12.2 | 992 | 12.2 | 896 | 13.5 | 896 | 13.5 | 896 | 13.5 |
| 462.libquantum | 404 | 51.3 | 400 | 51.8 | 402 | 51.6 | 297 | 69.7 | 297 | 69.8 | 305 | 68.0 |
| 464.h264ref | 1071 | 20.7 | 1071 | 20.7 | 1073 | 20.6 | 1011 | 21.9 | 1010 | 21.9 | 1010 | 21.9 |
| 471.omnetpp | 526 | 11.9 | 527 | 11.9 | 526 | 11.9 | 487 | 12.8 | 487 | 12.8 | 486 | 12.9 |
| 473.astar | 701 | 10.0 | 705 | 9.95 | 699 | 10.0 | 631 | 11.1 | 631 | 11.1 | 631 | 11.1 |
| 483.xalancbmk | 393 | 17.6 | 393 | 17.5 | 393 | 17.6 | 393 | 17.6 | 393 | 17.5 | 393 | 17.6 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M
Platform Notes
BIOS configuration: Power Regulator set to Static High Performance Mode
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
