CPU2006 license: | 55 | Test date: | Sep-2007 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Dec-2006 |
Tested by: | Dell Inc. | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5345 |
CPU Characteristics: | 1333MHz system bus |
CPU MHz: | 2333 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8x2 GB 667 MHz ECC CL5 FB-DIMM) |
Disk Subsystem: | 1 x 73 GB SAS 15k RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | 64-Bit SUSE LINUX Enterprise Server 10 |
Compiler: | Intel C++ and Fortran Compiler for Linux32 and Linux64 version 10.1 Build 20070725 |
Auto Parallel: | No |
File System: | ReiserFS |
System State: | Multi-user, run level 3 |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | SmartHeap library V8.1 |

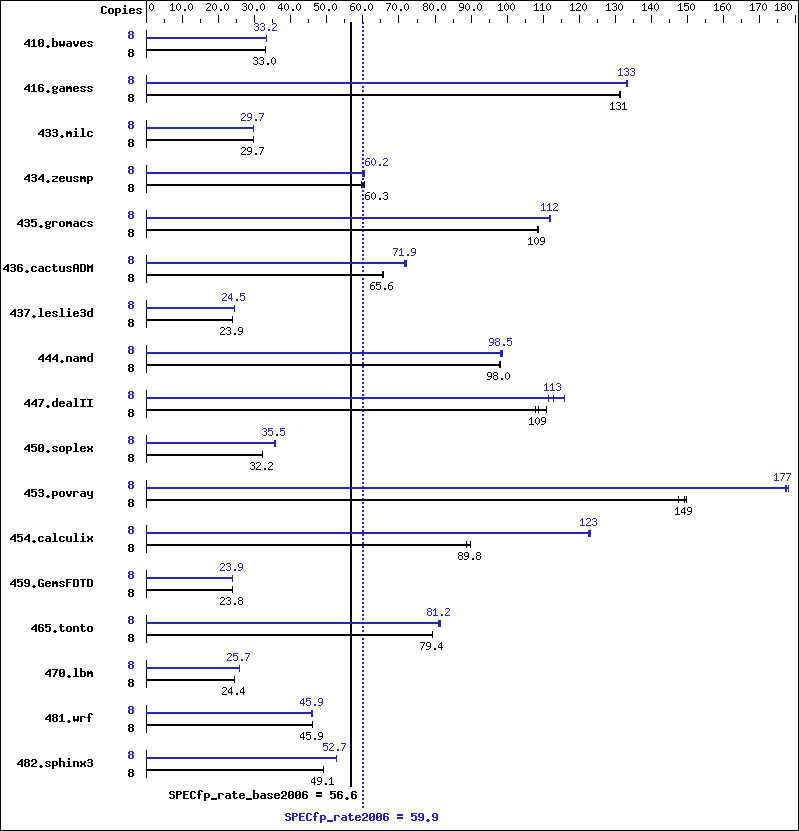

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 3299 | 33.0 | 3299 | 33.0 | 3299 | 33.0 | 8 | 3269 | 33.3 | 3270 | 33.2 | 3273 | 33.2 |
416.gamess | 8 | 1192 | 131 | 1194 | 131 | 1194 | 131 | 8 | 1174 | 133 | 1174 | 133 | 1177 | 133 |
433.milc | 8 | 2473 | 29.7 | 2473 | 29.7 | 2469 | 29.7 | 8 | 2469 | 29.7 | 2467 | 29.8 | 2472 | 29.7 |
434.zeusmp | 8 | 1206 | 60.3 | 1206 | 60.4 | 1219 | 59.7 | 8 | 1209 | 60.2 | 1213 | 60.0 | 1205 | 60.4 |
435.gromacs | 8 | 526 | 109 | 527 | 108 | 526 | 109 | 8 | 512 | 112 | 511 | 112 | 509 | 112 |
436.cactusADM | 8 | 1460 | 65.5 | 1454 | 65.7 | 1458 | 65.6 | 8 | 1327 | 72.0 | 1329 | 71.9 | 1337 | 71.5 |
437.leslie3d | 8 | 3143 | 23.9 | 3149 | 23.9 | 3145 | 23.9 | 8 | 3086 | 24.4 | 3072 | 24.5 | 3068 | 24.5 |
444.namd | 8 | 655 | 98.0 | 655 | 98.0 | 655 | 98.0 | 8 | 653 | 98.2 | 651 | 98.5 | 651 | 98.6 |
447.dealII | 8 | 848 | 108 | 841 | 109 | 826 | 111 | 8 | 811 | 113 | 791 | 116 | 821 | 112 |
450.soplex | 8 | 2071 | 32.2 | 2072 | 32.2 | 2073 | 32.2 | 8 | 1878 | 35.5 | 1873 | 35.6 | 1879 | 35.5 |
453.povray | 8 | 285 | 149 | 288 | 148 | 284 | 150 | 8 | 240 | 177 | 239 | 178 | 240 | 177 |
454.calculix | 8 | 744 | 88.7 | 735 | 89.8 | 735 | 89.8 | 8 | 536 | 123 | 538 | 123 | 538 | 123 |
459.GemsFDTD | 8 | 3578 | 23.7 | 3574 | 23.8 | 3565 | 23.8 | 8 | 3546 | 23.9 | 3545 | 23.9 | 3544 | 23.9 |
465.tonto | 8 | 991 | 79.4 | 994 | 79.2 | 991 | 79.4 | 8 | 966 | 81.5 | 970 | 81.2 | 971 | 81.1 |
470.lbm | 8 | 4511 | 24.4 | 4511 | 24.4 | 4513 | 24.4 | 8 | 4271 | 25.7 | 4271 | 25.7 | 4270 | 25.7 |
481.wrf | 8 | 1947 | 45.9 | 1946 | 45.9 | 1942 | 46.0 | 8 | 1946 | 45.9 | 1952 | 45.8 | 1942 | 46.0 |
482.sphinx3 | 8 | 3176 | 49.1 | 3180 | 49.0 | 3178 | 49.1 | 8 | 2962 | 52.6 | 2957 | 52.7 | 2961 | 52.7 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
BIOS Settings: Adjacent Cache Line Prefetch = Disabled (default Enabled) Hardware Prefetcher = Disabled (default Enabled)
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-fast |
-fast |
-fast |
-fast |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
470.lbm: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -scalar-rep- -prefetch -opt-malloc-options=3 |
482.sphinx3: | -fast -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -fast -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -ansi-alias |
410.bwaves: | -fast -prefetch |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -opt-malloc-options=3 |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -prefetch |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -prefetch -auto-ilp32 |
454.calculix: | -fast -unroll-aggressive -auto-ilp32 |
481.wrf: | -fast -auto-ilp32 |
