| CPU2006 license: | 9006 | Test date: | Oct-2007 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | May-2007 |
| Tested by: | NEC Corporation | Software Availability: | Apr-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5110 |
| CPU Characteristics: | 1.60 GHz, 4MB L2, 1066MHz bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x80 GB SATAII, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003, Standard x64 Edition Service Pack1 |
| Compiler: | Intel C++ Compiler for EM64T version 9.1 Build 20070322, Package-ID W_CC_C_9.1.037 Intel Fortran Compiler for EM64T version 9.1 Build 20070322, Package-ID W_FC_C_9.1.037 Microsoft Visual Studio 2005 (libr. & linker) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | None |

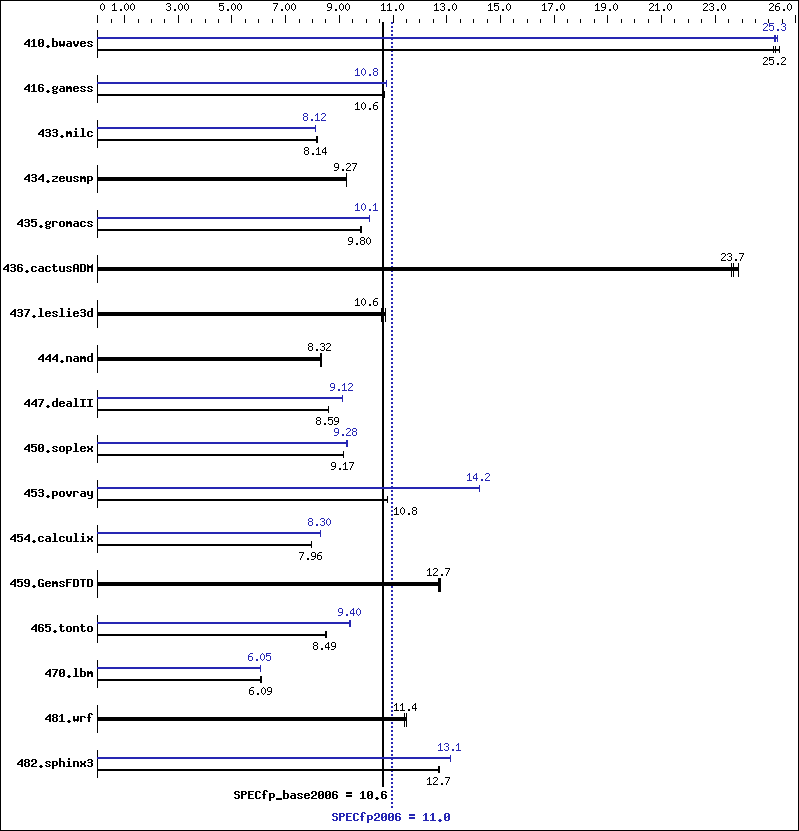

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 535 | 25.4 | 538 | 25.2 | 540 | 25.2 | 538 | 25.3 | 539 | 25.2 | 537 | 25.3 |
| 416.gamess | 1836 | 10.7 | 1840 | 10.6 | 1840 | 10.6 | 1820 | 10.8 | 1821 | 10.8 | 1819 | 10.8 |
| 433.milc | 1122 | 8.18 | 1128 | 8.14 | 1128 | 8.14 | 1130 | 8.12 | 1130 | 8.12 | 1130 | 8.12 |
| 434.zeusmp | 981 | 9.27 | 982 | 9.27 | 982 | 9.27 | 981 | 9.27 | 982 | 9.27 | 982 | 9.27 |
| 435.gromacs | 728 | 9.81 | 730 | 9.78 | 729 | 9.80 | 705 | 10.1 | 706 | 10.1 | 705 | 10.1 |
| 436.cactusADM | 500 | 23.9 | 506 | 23.6 | 505 | 23.7 | 500 | 23.9 | 506 | 23.6 | 505 | 23.7 |
| 437.leslie3d | 878 | 10.7 | 889 | 10.6 | 888 | 10.6 | 878 | 10.7 | 889 | 10.6 | 888 | 10.6 |
| 444.namd | 967 | 8.29 | 964 | 8.32 | 965 | 8.32 | 967 | 8.29 | 964 | 8.32 | 965 | 8.32 |
| 447.dealII | 1334 | 8.58 | 1332 | 8.59 | 1333 | 8.59 | 1254 | 9.12 | 1254 | 9.12 | 1254 | 9.12 |
| 450.soplex | 910 | 9.17 | 910 | 9.17 | 910 | 9.17 | 898 | 9.28 | 898 | 9.28 | 898 | 9.29 |
| 453.povray | 493 | 10.8 | 492 | 10.8 | 493 | 10.8 | 374 | 14.2 | 374 | 14.2 | 374 | 14.2 |
| 454.calculix | 1037 | 7.96 | 1037 | 7.96 | 1037 | 7.96 | 993 | 8.30 | 993 | 8.30 | 993 | 8.30 |
| 459.GemsFDTD | 830 | 12.8 | 834 | 12.7 | 836 | 12.7 | 830 | 12.8 | 834 | 12.7 | 836 | 12.7 |
| 465.tonto | 1155 | 8.52 | 1159 | 8.49 | 1161 | 8.48 | 1047 | 9.40 | 1046 | 9.41 | 1047 | 9.40 |
| 470.lbm | 2262 | 6.08 | 2256 | 6.09 | 2256 | 6.09 | 2270 | 6.05 | 2270 | 6.05 | 2270 | 6.05 |
| 481.wrf | 971 | 11.5 | 978 | 11.4 | 977 | 11.4 | 971 | 11.5 | 978 | 11.4 | 977 | 11.4 |
| 482.sphinx3 | 1534 | 12.7 | 1531 | 12.7 | 1531 | 12.7 | 1484 | 13.1 | 1484 | 13.1 | 1484 | 13.1 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -D_Complex= -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -D_Complex= -DSPEC_CPU_P64 |
| 436.cactusADM: | -D_Complex= -DSPEC_CPU_P64 -Qlowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -D_Complex= -DSPEC_CPU_P64 -DBOOST_NO_INTRINSIC_WCHAR_T -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -D_Complex= -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -D_Complex= -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -D_Complex= -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qparallel -Qcxx-features -F950000000 -link -FORCE:MULTIPLE |
Fortran benchmarks:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 -link -FORCE:MULTIPLE |
C++ benchmarks:
| 444.namd: | basepeak = yes |
| 447.dealII: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx-features -F950000000 -link -FORCE:MULTIPLE |
| 450.soplex: | Same as 447.dealII |
| 453.povray: | Same as 447.dealII |
Fortran benchmarks:
| 410.bwaves: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qparallel -F950000000 -link -FORCE:MULTIPLE |
| 416.gamess: | -fast -F950000000 -link -FORCE:MULTIPLE |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 -link -FORCE:MULTIPLE |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | Same as 435.gromacs |
| 481.wrf: | basepeak = yes |
