SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/120Bb-6
(Intel Xeon processor 5130)

CPU2006 license: 9006 Test date: Oct-2007
Test sponsor: NEC Corporation Hardware Availability: May-2007
Tested by: NEC Corporation Software Availability: Apr-2007

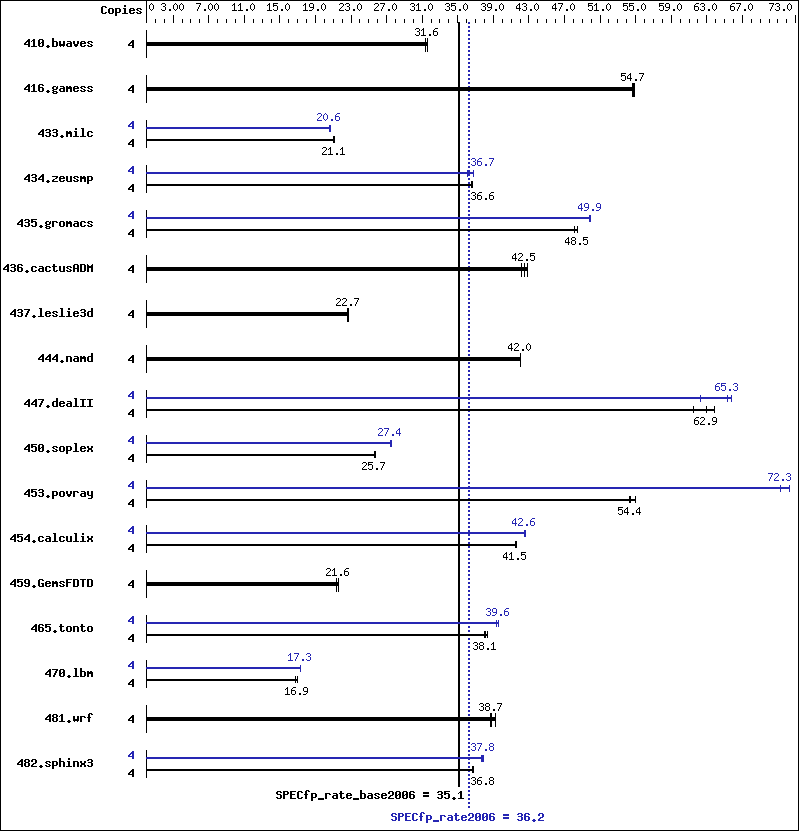

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5130
CPU Characteristics: 2.00 GHz, 4MB L2, 1333MHz bus
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x146.5 GB SAS, 10000RPM
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp on an x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 9.1 - Build 20070320, Package-ID:
l_cc_c_9.1.049
Intel Fortran Compiler for IA32/EM64T application,
Version 9.1 - Build 20070320, Package ID:
l_fc_c_9.1.045
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1720 31.6 1730 31.4 1721 31.6 4 1720 31.6 1730 31.4 1721 31.6
416.gamess 4 1434 54.6 1429 54.8 1431 54.7 4 1434 54.6 1429 54.8 1431 54.7
433.milc 4 1741 21.1 1739 21.1 1744 21.1 4 1780 20.6 1779 20.6 1781 20.6
434.zeusmp 4 994 36.6 996 36.5 993 36.6 4 991 36.7 1007 36.1 991 36.7
435.gromacs 4 589 48.5 594 48.1 589 48.5 4 573 49.9 573 49.9 572 49.9
436.cactusADM 4 1134 42.1 1115 42.9 1125 42.5 4 1134 42.1 1115 42.9 1125 42.5
437.leslie3d 4 1655 22.7 1666 22.6 1657 22.7 4 1655 22.7 1666 22.6 1657 22.7
444.namd 4 763 42.1 764 42.0 764 42.0 4 763 42.1 764 42.0 764 42.0
447.dealII 4 727 62.9 717 63.8 745 61.5 4 701 65.3 696 65.7 734 62.3
450.soplex 4 1299 25.7 1297 25.7 1302 25.6 4 1216 27.4 1216 27.4 1210 27.6
453.povray 4 387 55.0 391 54.4 392 54.3 4 294 72.3 295 72.3 298 71.3
454.calculix 4 793 41.6 795 41.5 796 41.4 4 775 42.6 776 42.5 775 42.6
459.GemsFDTD 4 1965 21.6 1966 21.6 1987 21.4 4 1965 21.6 1966 21.6 1987 21.4
465.tonto 4 1027 38.3 1033 38.1 1035 38.0 4 995 39.6 994 39.6 999 39.4
470.lbm 4 3247 16.9 3246 16.9 3275 16.8 4 3172 17.3 3174 17.3 3171 17.3
481.wrf 4 1154 38.7 1140 39.2 1153 38.7 4 1154 38.7 1140 39.2 1153 38.7
482.sphinx3 4 2120 36.8 2124 36.7 2118 36.8 4 2060 37.8 2069 37.7 2063 37.8

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 1333 MHz
 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 /opt/intel/cc/9.1.049/bin/icc   -I/opt/intel/cc/9.1.049/include   -L/opt/intel/cc/9.1.049/lib

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/9.1.049/bin/icpc   -I/opt/intel/cc/9.1.049/include   -L/opt/intel/cc/9.1.049/lib

Fortran benchmarks (except as noted below):

 ifort
434.zeusmp:  /opt/intel/fc/9.1.045/bin/ifort   -I/opt/intel/fc/9.1.045/include   -L/opt/intel/fc/9.1.045/lib

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
470.lbm:  Same as 433.milc
482.sphinx3:  -fast

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  -fast
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

435.gromacs:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
436.cactusADM:  basepeak = yes
454.calculix:  Same as 435.gromacs
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic91-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic91-linux-flags.xml.
