| CPU2006 license: | 20 | Test date: | Oct-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Mar-2007 |
| Tested by: | Bull SAS | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5335 |
| CPU Characteristics: | 2.00 GHz, 8 MB L2, 1333 MHz system bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2 GB) FB-DIMM PC2-5300F ECC CL5 |
| Disk Subsystem: | 1x147 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE LINUX Enterprise Server 10 Kernel 2.6.16.21-0.8-smp for x86_64 |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070725 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Multi-user run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap library V8.1 Binutils 2.17.50.0.15 |

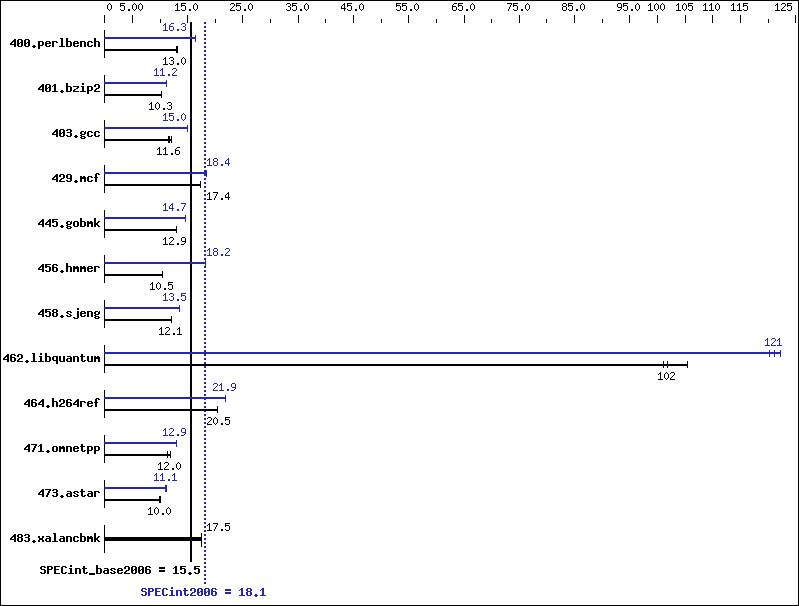

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 747 | 13.1 | 749 | 13.0 | 756 | 12.9 | 598 | 16.3 | 598 | 16.3 | 598 | 16.3 |
| 401.bzip2 | 936 | 10.3 | 933 | 10.3 | 934 | 10.3 | 864 | 11.2 | 864 | 11.2 | 867 | 11.1 |
| 403.gcc | 697 | 11.5 | 666 | 12.1 | 692 | 11.6 | 537 | 15.0 | 537 | 15.0 | 537 | 15.0 |
| 429.mcf | 526 | 17.3 | 525 | 17.4 | 525 | 17.4 | 496 | 18.4 | 497 | 18.4 | 495 | 18.4 |
| 445.gobmk | 811 | 12.9 | 811 | 12.9 | 812 | 12.9 | 716 | 14.6 | 716 | 14.7 | 715 | 14.7 |
| 456.hmmer | 892 | 10.5 | 891 | 10.5 | 892 | 10.5 | 513 | 18.2 | 514 | 18.2 | 513 | 18.2 |
| 458.sjeng | 1006 | 12.0 | 1000 | 12.1 | 1003 | 12.1 | 897 | 13.5 | 895 | 13.5 | 899 | 13.5 |
| 462.libquantum | 204 | 102 | 205 | 101 | 197 | 105 | 171 | 121 | 172 | 120 | 170 | 122 |
| 464.h264ref | 1082 | 20.5 | 1081 | 20.5 | 1081 | 20.5 | 1010 | 21.9 | 1010 | 21.9 | 1012 | 21.9 |
| 471.omnetpp | 522 | 12.0 | 546 | 11.4 | 522 | 12.0 | 484 | 12.9 | 483 | 12.9 | 484 | 12.9 |
| 473.astar | 700 | 10.0 | 712 | 9.86 | 698 | 10.1 | 630 | 11.1 | 637 | 11.0 | 631 | 11.1 |
| 483.xalancbmk | 394 | 17.5 | 394 | 17.5 | 394 | 17.5 | 394 | 17.5 | 394 | 17.5 | 394 | 17.5 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer for peak, are compiled in 64-bit mode
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -vec-guard-write -parallel -par-runtime-control |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
