SPEC® CINT2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Supermicro

Motherboard X7DWN+

SPECint®2006 = 26.7

CPU2006 license: 001176 Test date: Oct-2007
Test sponsor: Supermicro Hardware Availability: Nov-2007
Tested by: Supermicro Software Availability: Nov-2007

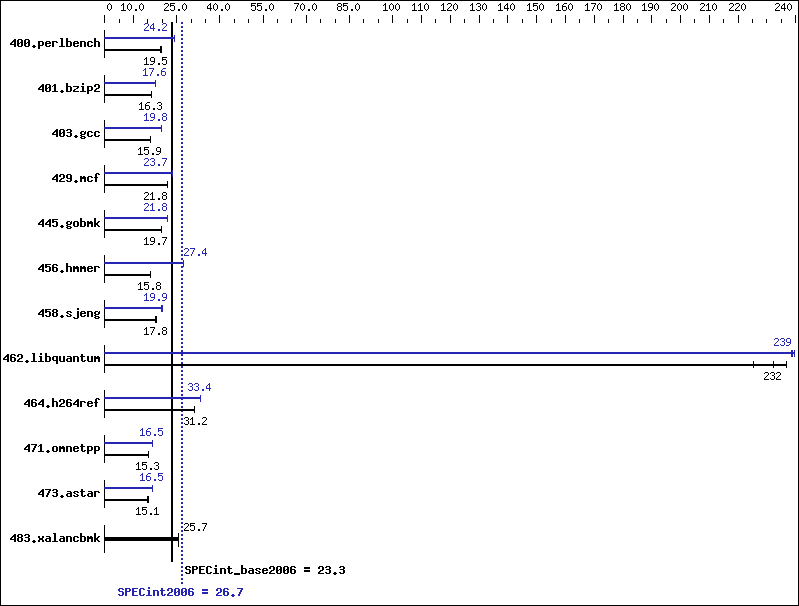

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5472
CPU Characteristics: Quad Core, 3.00GHz
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (16 X 1GB ECC PC2-6400, CL5, FBDIMM)
Disk Subsystem: Westren Digital WD5000YS 500GB SATA2, 7200RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64) SP1,
kernel 2.6.16.46-0.12-default
Compiler: Intel C++ Compiler for Linux32 and Linux64
version 10.1
Build 20070824
Auto Parallel: Yes
File System: ReiserFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap library V8.1
Binutils 2.17.50.0.15

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 498   19.6 501   19.5 501   19.5 404   24.2 405   24.1 403   24.3
401.bzip2 592   16.3 593   16.3 592   16.3 548   17.6 549   17.6 548   17.6
403.gcc 509   15.8 505   16.0 506   15.9 407   19.8 407   19.8 407   19.8
429.mcf 418   21.8 418   21.8 419   21.8 386   23.6 385   23.7 385   23.7
445.gobmk 532   19.7 532   19.7 533   19.7 481   21.8 481   21.8 481   21.8
456.hmmer 591   15.8 591   15.8 592   15.8 340   27.4 341   27.4 341   27.4
458.sjeng 677   17.9 680   17.8 679   17.8 608   19.9 609   19.9 608   19.9
462.libquantum 91.9 225   89.2 232   87.6 237   86.8 239   86.8 239   86.4 240
464.h264ref 710   31.2 710   31.2 709   31.2 662   33.4 663   33.4 663   33.4
471.omnetpp 408   15.3 408   15.3 407   15.3 379   16.5 379   16.5 379   16.5
473.astar 466   15.1 465   15.1 467   15.0 424   16.6 426   16.5 427   16.4
483.xalancbmk 269   25.7 269   25.7 269   25.6 269   25.7 269   25.7 269   25.6

General Notes

 Tested systems can be used with CSE-825TQ-R700LPV case,
 To ensure system stability, a 550W (minimum) ATX power supply
 [4-pin (+12V), 8-pin (+12V) and 24-pin are required]
 Product description located as of
 http://www.supermicro.com/products/motherboard/Xeon1333/5400/X7DWN+.cfm
 The system bus runs at 1600 MHz

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -vec-guard-write   -parallel   -par-runtime-control

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070824/Linux64/bin/icc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070824/Linux64/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070824/Linux64/include
456.hmmer:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070824/Linux64/bin/icc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070824/Linux64/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070824/Linux64/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
403.gcc:  -fast   -inline-calloc   -opt-malloc-options=3
429.mcf:  -fast   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -fast   -unroll2   -ansi-alias   -opt-multi-version-aggressive   -auto-ilp32
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4
462.libquantum:  -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always   -vec-guard-write   -opt-malloc-options=3   -parallel   -par-runtime-control
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.02.xml.
