| CPU2006 license: | 9006 | Test date: | Oct-2007 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | May-2007 |
| Tested by: | NEC Corporation | Software Availability: | Jun-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5110 |
| CPU Characteristics: | 1.60 GHz, 4 MB L2, 1066 MHz bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x146.5 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | 64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp for x86_64 |
| Compiler: | Intel C++ Compiler for IA32/EM64T application, Version 10.0 - Build 20070426 Package ID: l_cc_p_10.0.023 |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Multiuser, Runlevel 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap library 8.1 binutils-2.17.tar.gz, Version 2.17 |

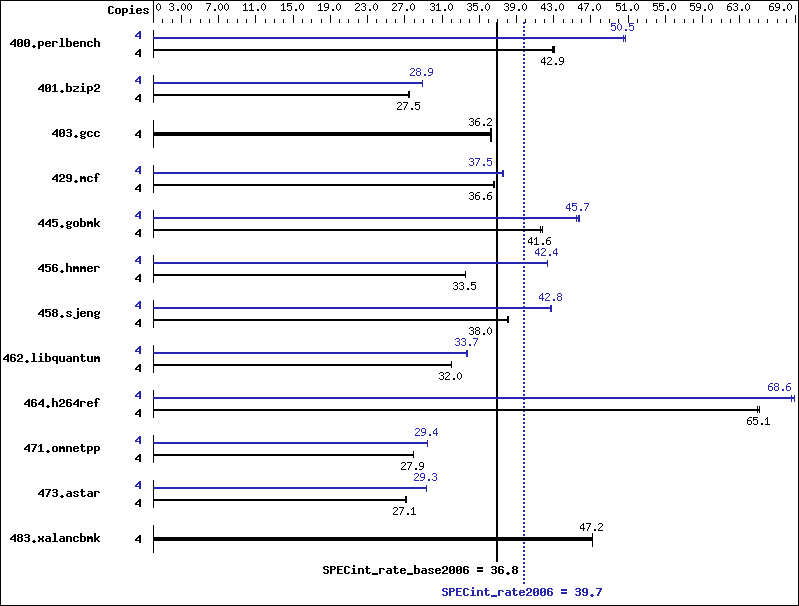

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 908 | 43.1 | 912 | 42.9 | 910 | 42.9 | 4 | 774 | 50.5 | 771 | 50.7 | 774 | 50.5 |
| 401.bzip2 | 4 | 1405 | 27.5 | 1402 | 27.5 | 1411 | 27.4 | 4 | 1334 | 28.9 | 1335 | 28.9 | 1336 | 28.9 |
| 403.gcc | 4 | 889 | 36.2 | 890 | 36.2 | 886 | 36.3 | 4 | 889 | 36.2 | 890 | 36.2 | 886 | 36.3 |
| 429.mcf | 4 | 997 | 36.6 | 998 | 36.6 | 996 | 36.6 | 4 | 971 | 37.6 | 973 | 37.5 | 973 | 37.5 |
| 445.gobmk | 4 | 1008 | 41.6 | 1004 | 41.8 | 1009 | 41.6 | 4 | 917 | 45.7 | 924 | 45.4 | 918 | 45.7 |
| 456.hmmer | 4 | 1115 | 33.5 | 1115 | 33.5 | 1115 | 33.5 | 4 | 882 | 42.3 | 881 | 42.4 | 881 | 42.4 |
| 458.sjeng | 4 | 1272 | 38.0 | 1268 | 38.2 | 1273 | 38.0 | 4 | 1132 | 42.8 | 1132 | 42.8 | 1134 | 42.7 |
| 462.libquantum | 4 | 2590 | 32.0 | 2591 | 32.0 | 2589 | 32.0 | 4 | 2461 | 33.7 | 2460 | 33.7 | 2461 | 33.7 |
| 464.h264ref | 4 | 1365 | 64.8 | 1360 | 65.1 | 1360 | 65.1 | 4 | 1286 | 68.9 | 1291 | 68.6 | 1292 | 68.5 |
| 471.omnetpp | 4 | 895 | 27.9 | 895 | 27.9 | 895 | 27.9 | 4 | 849 | 29.5 | 849 | 29.4 | 850 | 29.4 |
| 473.astar | 4 | 1035 | 27.1 | 1036 | 27.1 | 1034 | 27.1 | 4 | 958 | 29.3 | 958 | 29.3 | 956 | 29.4 |
| 483.xalancbmk | 4 | 585 | 47.2 | 585 | 47.2 | 585 | 47.2 | 4 | 585 | 47.2 | 585 | 47.2 | 585 | 47.2 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
| 456.hmmer: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | basepeak = yes |
