SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/120Li
(Intel Xeon processor 5160)

SPECfp®2006 = 17.2

CPU2006 license: 9006 Test date: Oct-2007
Test sponsor: NEC Corporation Hardware Availability: May-2007
Tested by: NEC Corporation Software Availability: Apr-2007

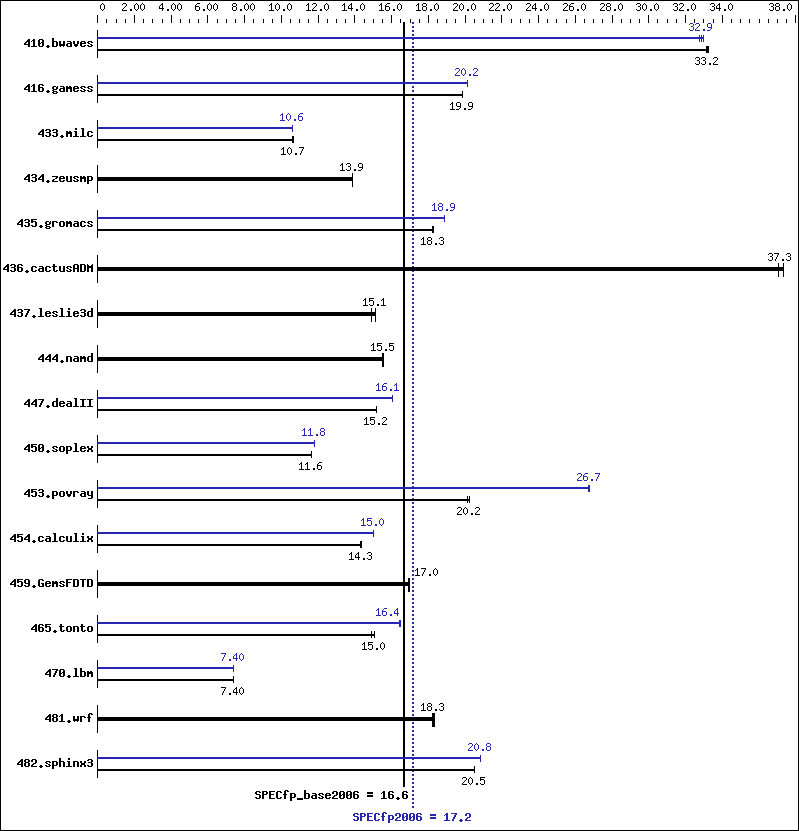

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5160
CPU Characteristics: 3.00 GHz, 4 MB L2, 1333 MHz bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (8x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x36.3 GB SAS, 15000RPM
Other Hardware: None
Software
Operating System: Windows Server 2003, Standard x64 Edition
Service Pack1
Compiler: Intel C++ Compiler for EM64T version 9.1
Build 20070322, Package-ID W_CC_C_9.1.037
Intel Fortran Compiler for EM64T version 9.1
Build 20070322, Package-ID W_FC_C_9.1.037
Microsoft Visual Studio 2005 (libr. & linker)
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 410 33.1  409 33.2  409 33.2  412 33.0  413 32.9  415 32.8
416.gamess 987 19.8  986 19.9  986 19.9  971 20.2  972 20.2  972 20.2
433.milc 864 10.6  860 10.7  860 10.7  864 10.6  864 10.6  864 10.6
434.zeusmp 657 13.8  656 13.9  656 13.9  657 13.8  656 13.9  656 13.9
435.gromacs 390 18.3  390 18.3  392 18.2  379 18.9  379 18.9  379 18.9
436.cactusADM 320 37.3  320 37.3  322 37.1  320 37.3  320 37.3  322 37.1
437.leslie3d 622 15.1  623 15.1  630 14.9  622 15.1  623 15.1  630 14.9
444.namd 516 15.5  517 15.5  515 15.6  516 15.5  517 15.5  515 15.6
447.dealII 754 15.2  754 15.2  753 15.2  712 16.1  712 16.1  712 16.1
450.soplex 716 11.6  716 11.6  716 11.6  706 11.8  706 11.8  706 11.8
453.povray 263 20.2  264 20.2  263 20.2  199 26.7  199 26.8  199 26.7
454.calculix 576 14.3  575 14.3  575 14.3  550 15.0  550 15.0  550 15.0
459.GemsFDTD 625 17.0  626 17.0  627 16.9  625 17.0  626 17.0  627 16.9
465.tonto 654 15.1  654 15.0  659 14.9  600 16.4  597 16.5  600 16.4
470.lbm 1857 7.40 1861 7.38 1857 7.40 1857 7.40 1856 7.40 1856 7.40
481.wrf 610 18.3  611 18.3  613 18.2  610 18.3  611 18.3  613 18.2
482.sphinx3 951 20.5  950 20.5  949 20.5  935 20.8  936 20.8  935 20.8

Base Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc8   -Qc99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -D_Complex=   -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -D_Complex=   -DSPEC_CPU_P64
436.cactusADM:  -D_Complex=   -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -D_Complex=   -DSPEC_CPU_P64   -DBOOST_NO_INTRINSIC_WCHAR_T   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -D_Complex=   -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -D_Complex=   -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -D_Complex=   -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qparallel   -F950000000    -link -FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qparallel   -Qcxx-features   -F950000000    -link -FORCE:MULTIPLE

Fortran benchmarks:

 -fast   -Qparallel   -F950000000    -link -FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   -Qparallel   -F950000000    -link -FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc8   -Qc99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000    -link -FORCE:MULTIPLE

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx-features   -F950000000    -link -FORCE:MULTIPLE
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qparallel   -F950000000    -link -FORCE:MULTIPLE
416.gamess:  -fast   -F950000000    -link -FORCE:MULTIPLE
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 410.bwaves

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000    -link -FORCE:MULTIPLE
436.cactusADM:  basepeak = yes
454.calculix:  Same as 435.gromacs
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic91-FP-win-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic91-FP-win-flags.xml.
