SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Intel Corporation

Asus P5E3 Deluxe (Intel Core 2 Extreme QX9650)

CPU2006 license: 13 Test date: Nov-2007
Test sponsor: Intel Corporation Hardware Availability: Nov-2007
Tested by: Intel Corporation Software Availability: Nov-2007

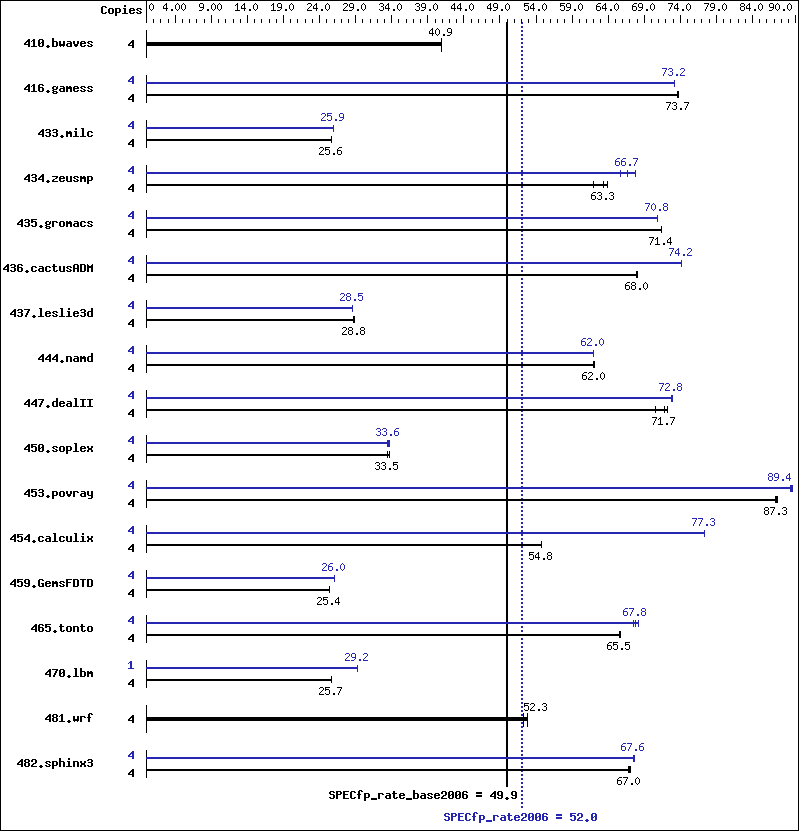

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Extreme QX9650
CPU Characteristics: 3.00 GHz 1333 MHz FSB
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 4 GB (4x1GB Corsair TWIN3X2048-1333C9DHX
DDR3-1333 CL9)
Disk Subsystem: Seagate 320GB NCQ SATA, 16MB cache, 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista64 Ultimate
Compiler: Intel C++ Compiler for IA32 version 10.1
Build 20070913 Package ID: w_cc_p_10.1.011
Intel Fortran Compiler for IA32 version 10.1
Build 20070913 Package ID: w_fc_p_10.1.011
Microsoft Visual Studio 2005 SP1 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.1 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1329 40.9 1330 40.9 1331 40.9 4 1329 40.9 1330 40.9 1331 40.9
416.gamess 4 1063 73.7 1063 73.7 1064 73.6 4 1070 73.2 1070 73.2 1070 73.2
433.milc 4 1433 25.6 1432 25.6 1434 25.6 4 1416 25.9 1416 25.9 1415 26.0
434.zeusmp 4 575 63.3 588 61.9 570 63.9 4 546 66.7 537 67.8 554 65.7
435.gromacs 4 400 71.3 400 71.4 400 71.4 4 403 70.8 404 70.8 403 70.8
436.cactusADM 4 703 68.0 702 68.1 703 68.0 4 644 74.2 645 74.1 644 74.2
437.leslie3d 4 1308 28.8 1306 28.8 1306 28.8 4 1318 28.5 1319 28.5 1314 28.6
444.namd 4 517 62.1 517 62.0 518 62.0 4 517 62.0 517 62.0 517 62.0
447.dealII 4 633 72.3 638 71.7 649 70.6 4 628 72.9 629 72.8 628 72.8
450.soplex 4 992 33.6 1000 33.4 997 33.5 4 993 33.6 990 33.7 998 33.4
453.povray 4 243 87.4 244 87.1 244 87.3 4 238 89.3 238 89.4 238 89.5
454.calculix 4 603 54.7 603 54.8 603 54.8 4 427 77.3 426 77.4 427 77.3
459.GemsFDTD 4 1677 25.3 1671 25.4 1669 25.4 4 1631 26.0 1633 26.0 1627 26.1
465.tonto 4 601 65.5 601 65.5 599 65.7 4 577 68.2 583 67.5 580 67.8
470.lbm 4 2138 25.7 2139 25.7 2139 25.7 1 470 29.2 471 29.2 470 29.3
481.wrf 4 854 52.3 846 52.8 856 52.2 4 854 52.3 846 52.8 856 52.2
482.sphinx3 4 1164 67.0 1163 67.1 1167 66.8 4 1155 67.5 1153 67.6 1154 67.6

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Product description located as of 11/2007:
 http://www.asus.com/products.aspx?l1=3&l2=11&l3=572&l4=0&model=1872&modelmenu=1
 The system bus runs at 1333 MHz
 System was configured with Asus EN8800GTX discrete graphics card
 Binaries were built on Windows Vista32
 The following VS 2005 SP1 updates were applied: KB926601 and KB932232
 The start command with the /affinity switch was used to bind processes to cores

Base Compiler Invocation

C benchmarks:

 icl -Qvc8   -Qc99

C++ benchmarks:

 icl -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc8   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F1000000000

C++ benchmarks:

 -fast   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F1000000000

Benchmarks using both Fortran and C:

 -fast   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc8   -Qc99

C++ benchmarks:

 icl -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc8   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -Qunroll2   -Oa   /F1000000000
470.lbm:  -fast   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F1000000000
482.sphinx3:  -fast   -Qunroll2   /F1000000000

C++ benchmarks:

444.namd:  -fast   -Oa   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
447.dealII:  -fast   -Qunroll2   -Qprefetch   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
450.soplex:  -fast   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
453.povray:  -fast   -Qunroll4   -Qansi-alias   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -fast   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   /F1000000000
437.leslie3d:  -fast   -Qprefetch   /F1000000000
459.GemsFDTD:  -fast   -Qunroll2   -Ob0   -Qprefetch   /F1000000000
465.tonto:  -fast   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  -fast   -Oa   -Qprefetch   /F1000000000
436.cactusADM:  -fast   -Qunroll2   -Qprefetch   /F1000000000
454.calculix:  -fast   -Qunroll-aggressive   /F1000000000
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.09.xml.
