| CPU2006 license: | 001176 | Test date: | Nov-2007 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Nov-2007 |
| Tested by: | Supermicro | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5365 |
| CPU Characteristics: | Quad Core, 3.00GHz |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 X 2GB ECC PC2-5300, CL5, FBDIMM) |
| Disk Subsystem: | Western DigitalD WD1600YS-01SHB1 160GB SATA II, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | 64-Bit Suse Linux Enterprise Server 10 w/ SP1 |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070725 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap library V8.1 Binutils 2.17.50.0.15 |

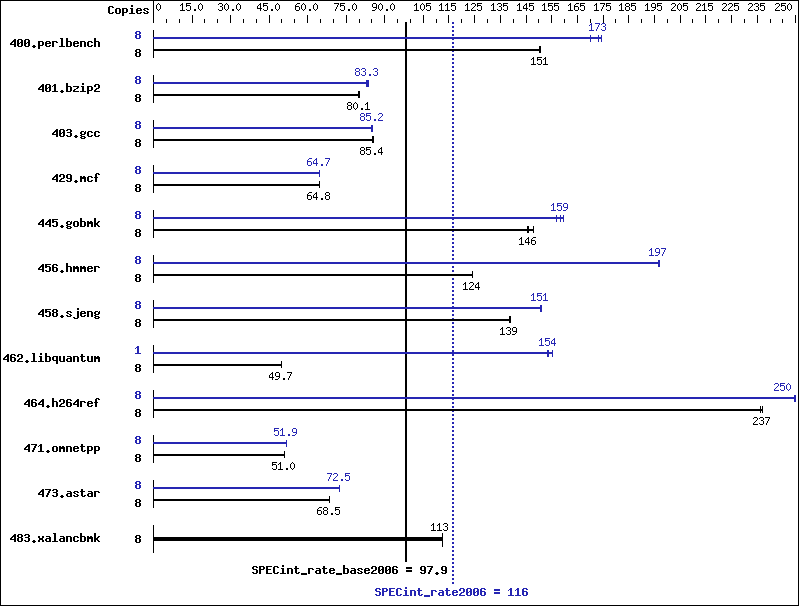

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 519 | 151 | 520 | 150 | 519 | 151 | 8 | 459 | 170 | 448 | 175 | 451 | 173 |
| 401.bzip2 | 8 | 964 | 80.1 | 960 | 80.4 | 968 | 79.8 | 8 | 929 | 83.1 | 927 | 83.3 | 923 | 83.6 |
| 403.gcc | 8 | 755 | 85.3 | 753 | 85.5 | 754 | 85.4 | 8 | 756 | 85.2 | 756 | 85.2 | 760 | 84.8 |
| 429.mcf | 8 | 1126 | 64.8 | 1127 | 64.7 | 1126 | 64.8 | 8 | 1129 | 64.6 | 1127 | 64.7 | 1129 | 64.7 |
| 445.gobmk | 8 | 576 | 146 | 577 | 146 | 567 | 148 | 8 | 526 | 160 | 529 | 159 | 535 | 157 |
| 456.hmmer | 8 | 601 | 124 | 601 | 124 | 601 | 124 | 8 | 379 | 197 | 380 | 196 | 380 | 197 |
| 458.sjeng | 8 | 698 | 139 | 696 | 139 | 699 | 139 | 8 | 643 | 151 | 641 | 151 | 643 | 151 |
| 462.libquantum | 8 | 3336 | 49.7 | 3337 | 49.7 | 3336 | 49.7 | 1 | 135 | 153 | 133 | 155 | 135 | 154 |
| 464.h264ref | 8 | 747 | 237 | 749 | 236 | 747 | 237 | 8 | 708 | 250 | 710 | 249 | 708 | 250 |
| 471.omnetpp | 8 | 981 | 51.0 | 979 | 51.1 | 980 | 51.0 | 8 | 963 | 51.9 | 964 | 51.9 | 963 | 51.9 |
| 473.astar | 8 | 820 | 68.5 | 819 | 68.5 | 821 | 68.4 | 8 | 775 | 72.5 | 775 | 72.5 | 775 | 72.5 |
| 483.xalancbmk | 8 | 490 | 113 | 491 | 113 | 491 | 112 | 8 | 490 | 113 | 491 | 113 | 491 | 112 |
General Notes
Tested systems can be used with SC-808T-980 case, To ensure system stability, a 550W (minimum) ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required] Product description located as of http://www.supermicro.com/products/motherboard/Xeon1333/5000P/X7DBT-INF.cfm The system bus runs at 1333 MHz BIOS Setting: Default
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
