SPEC® CINT2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Supermicro

Motherboard X7DWA-N

CPU2006 license: 001176 Test date: Oct-2007
Test sponsor: Supermicro Hardware Availability: Nov-2007
Tested by: Supermicro Software Availability: Nov-2007

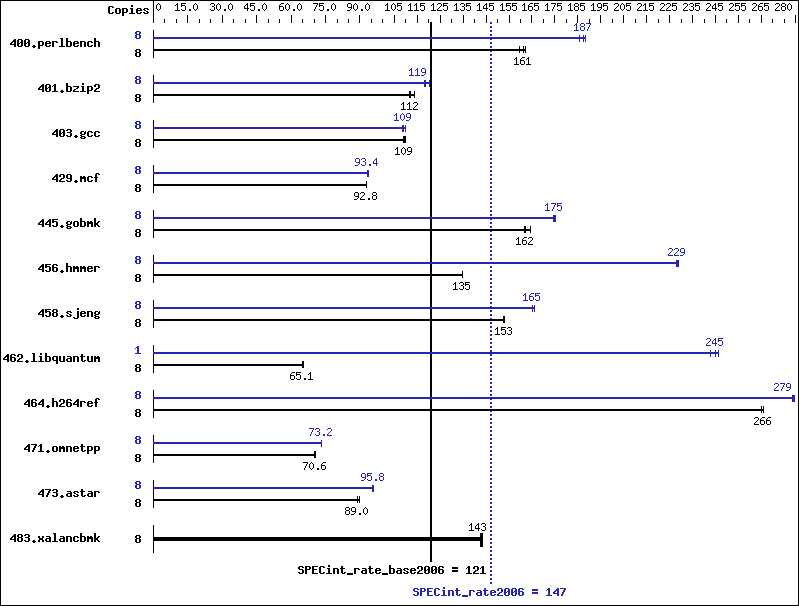

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5482
CPU Characteristics: Quad Core, 3.20GHz
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 * 2 GB PC2-6400 FBDIMM, CL-5-5-5, ECC)
Disk Subsystem: WD WD5000YS Caviar RE2, 500GB SATA, 7200RPM
Other Hardware: None
Software
Operating System: 64-Bit Suse Linux Enterprise Server 10 w/ SP1
Compiler: Intel C++ Compiler for Linux32 and Linux64
version 10.1
Build 20070725
Auto Parallel: Yes
File System: ReiserFS
System State: Multi-user, run level 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap library V8.1
Binutils 2.17.50.0.15

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 482 162   490 160   485 161   8 421   186   415   188   417   187
401.bzip2 8 688 112   692 112   679 114   8 654   118   651   119   642   120
403.gcc 8 587 110   591 109   589 109   8 592   109   591   109   587   110
429.mcf 8 786 92.8 784 93.0 786 92.8 8 781   93.4 782   93.3 780   93.6
445.gobmk 8 511 164   519 162   517 162   8 480   175   482   174   479   175
456.hmmer 8 555 135   555 135   555 135   8 326   229   326   229   327   228
458.sjeng 8 632 153   633 153   635 152   8 585   165   583   166   586   165
462.libquantum 8 2550 65.0 2548 65.1 2542 65.2 1 84.6 245   84.1 246   85.3 243
464.h264ref 8 667 265   666 266   666 266   8 635   279   635   279   634   279
471.omnetpp 8 708 70.6 707 70.7 713 70.1 8 684   73.2 683   73.3 683   73.2
473.astar 8 626 89.7 631 89.0 631 89.0 8 588   95.5 586   95.8 586   95.9
483.xalancbmk 8 387 143   386 143   385 143   8 387   143   386   143   385   143

General Notes

 Tested systems can be used with CSE-825TQ-R700LPV case,
 To ensure system stability, a 500W (minimum)
 ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required]
 Product description located as of
 http://www.supermicro.com/products/motherboard/Xeon1333/5400/X7WA-N.cfm
 The system bus runs at 1600 MHz
 BIOS Setting: Default

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -inline-calloc   -opt-malloc-options=3

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/bin/icc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/include
456.hmmer:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/bin/icc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch
403.gcc:  -fast   -inline-calloc   -opt-malloc-options=3
429.mcf:  -fast   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -fast   -unroll2   -ansi-alias   -opt-multi-version-aggressive
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4
462.libquantum:  -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always   -vec-guard-write   -opt-malloc-options=3   -parallel   -par-runtime-control
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.02.xml.
