SPEC® CINT2006 Result

Fujitsu Siemens Computers

PRIMERGY BX620 S4, Intel Xeon processor E5420,
2.50 GHz

SPECint®_rate2006 = 97.4

SPECint_rate_base2006 = 97.4

CPU2006 license:	22	Test date:	Nov-2007
Test sponsor:	Fujitsu Siemens Computers	Hardware Availability:	Dec-2007
Tested by:	Fujitsu Siemens Computers	Software Availability:	Nov-2007

Hardware
CPU Name:	Intel Xeon E5420
CPU Characteristics:	1333 MHz system bus
CPU MHz:	2500
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (8x2 GB PC2-5300F, 2 rank, CAS 5-5-5, with ECC)
Disk Subsystem:	Seagate ST973451SS (SAS, 73GB, 15000rpm)
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp
Compiler:	Intel C++ Compiler for Linux32 and Linux64 Version 10.1 - Build 20070725
Auto Parallel:	No
File System:	ext2
System State:	Multiuser, Runlevel 3
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	Smart Heap Library, Version 8.1 binutils-2.17.tar.gz, Version 2.17

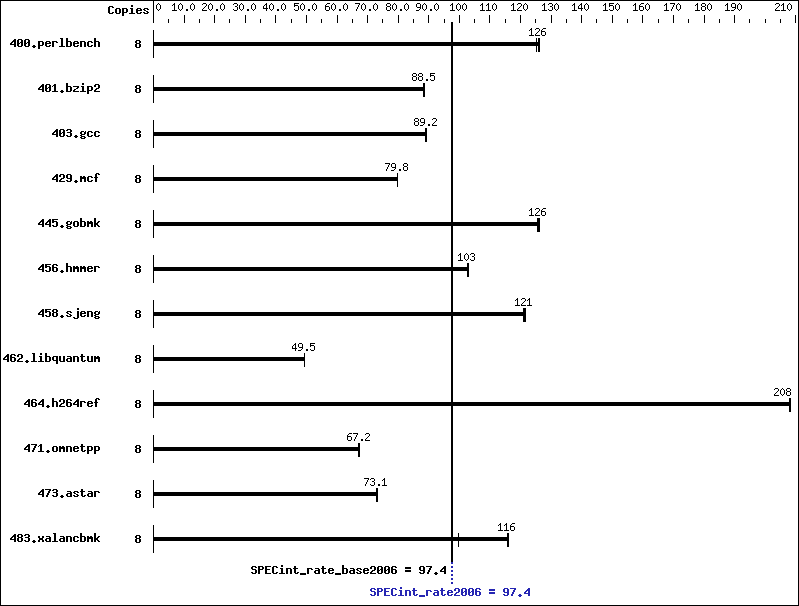

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	8	620	126	624	125	619	126	8	620	126	624	125	619	126
401.bzip2	8	873	88.4	872	88.5	870	88.7	8	873	88.4	872	88.5	870	88.7
403.gcc	8	722	89.2	725	88.8	721	89.4	8	722	89.2	725	88.8	721	89.4
429.mcf	8	913	79.9	914	79.8	914	79.8	8	913	79.9	914	79.8	914	79.8
445.gobmk	8	666	126	666	126	669	125	8	666	126	666	126	669	125
456.hmmer	8	725	103	726	103	726	103	8	725	103	726	103	726	103
458.sjeng	8	796	122	798	121	799	121	8	796	122	798	121	799	121
462.libquantum	8	3350	49.5	3349	49.5	3351	49.5	8	3350	49.5	3349	49.5	3351	49.5
464.h264ref	8	852	208	851	208	851	208	8	852	208	851	208	851	208
471.omnetpp	8	741	67.5	744	67.2	745	67.1	8	741	67.5	744	67.2	745	67.1
473.astar	8	769	73.1	770	72.9	765	73.4	8	769	73.1	770	72.9	765	73.4
483.xalancbmk	8	476	116	554	99.6	476	116	8	476	116	554	99.6	476	116

General Notes


 This result has been produced with binaries provided and compiled by Intel.

 BIOS configuration:
 Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable

 For information about Fujitsu Siemens Computers please see:
 http://www.fujitsu-siemens.com

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LINUX_IA32
462.libquantum:	-DSPEC_CPU_LINUX
483.xalancbmk:	-DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

-fast -inline-calloc -opt-malloc-options=3

C++ benchmarks:

-xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:

-Dalloca=_alloca

Peak Optimization Flags

C benchmarks:

400.perlbench:	basepeak = yes
401.bzip2:	basepeak = yes
403.gcc:	basepeak = yes
429.mcf:	basepeak = yes
445.gobmk:	basepeak = yes
456.hmmer:	basepeak = yes
458.sjeng:	basepeak = yes
462.libquantum:	basepeak = yes
464.h264ref:	basepeak = yes

C++ benchmarks:

471.omnetpp:	basepeak = yes
473.astar:	basepeak = yes
483.xalancbmk:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.06.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.06.xml.
