SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision T7400 (Intel Xeon X5482, 3.20 GHz)

SPECfp®2006 = 22.2

CPU2006 license: 55 Test date: Dec-2007
Test sponsor: Dell Inc. Hardware Availability: Nov-2007
Tested by: Dell Inc. Software Availability: Nov-2007

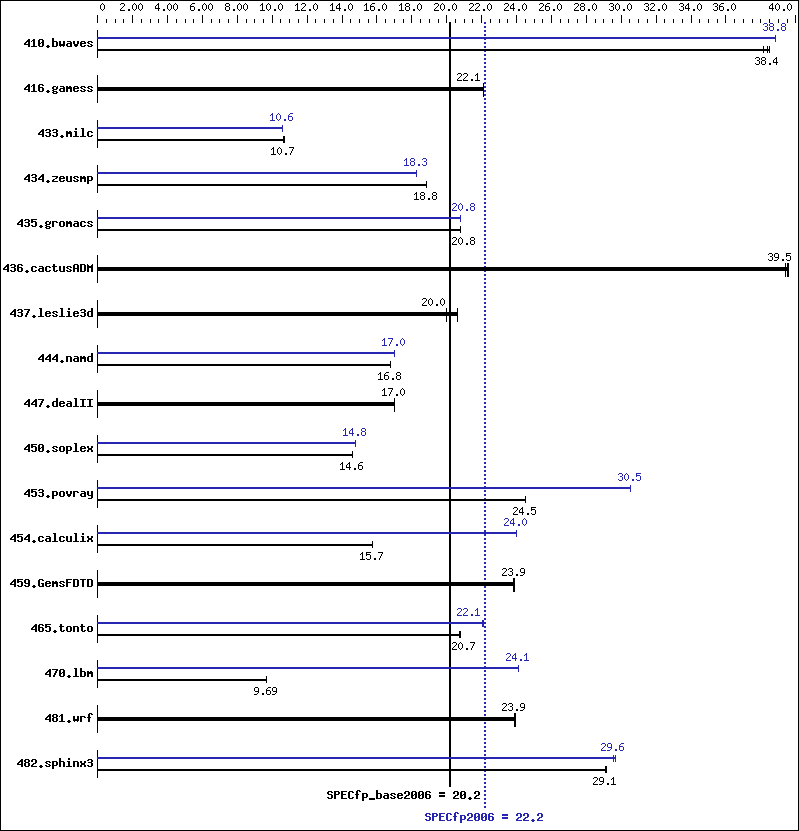

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5482
CPU Characteristics: 1600 MHz Bus Speed
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB 800 MHz FB-DIMM CL5)
Disk Subsystem: 1 x 73 GB SAS 10K RPM
Other Hardware: None
Software
Operating System: Windows XP Professional x64 Edition SP2
Compiler: Intel C++ Compiler for Intel 64, Version 10.1
Build 20070809 Package ID: w_cc_p_10.1.011
Intel Visual Fortran Compiler for Intel 64,
Version 10.0
Build 20070809 Package ID: w_fc_p_10.1.011
Microsoft Visual Studio 2005 SP1
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.0 for x64

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 354 38.4  353 38.5  356 38.2  350 38.8 350 38.9 350 38.8
416.gamess 887 22.1  887 22.1  886 22.1  887 22.1 887 22.1 886 22.1
433.milc 857 10.7  861 10.7  863 10.6  869 10.6 866 10.6 869 10.6
434.zeusmp 483 18.9  483 18.8  483 18.8  498 18.3 498 18.3 498 18.3
435.gromacs 344 20.8  344 20.8  344 20.8  344 20.8 344 20.8 344 20.8
436.cactusADM 303 39.4  303 39.5  302 39.6  303 39.4 303 39.5 302 39.6
437.leslie3d 456 20.6  471 20.0  470 20.0  456 20.6 471 20.0 470 20.0
444.namd 477 16.8  477 16.8  477 16.8  471 17.0 471 17.0 471 17.0
447.dealII 672 17.0  672 17.0  672 17.0  672 17.0 672 17.0 672 17.0
450.soplex 571 14.6  572 14.6  571 14.6  565 14.8 565 14.8 564 14.8
453.povray 217 24.5  217 24.5  217 24.5  174 30.5 174 30.5 174 30.5
454.calculix 524 15.7  524 15.7  524 15.7  344 24.0 344 24.0 344 24.0
459.GemsFDTD 445 23.9  445 23.8  444 23.9  445 23.9 445 23.8 444 23.9
465.tonto 475 20.7  474 20.8  475 20.7  447 22.0 445 22.1 445 22.1
470.lbm 1418 9.69 1418 9.69 1418 9.69 570 24.1 570 24.1 570 24.1
481.wrf 467 23.9  468 23.9  467 23.9  467 23.9 468 23.9 467 23.9
482.sphinx3 669 29.2  670 29.1  670 29.1  659 29.6 657 29.7 659 29.6

General Notes

 Binaries were built on Windows Vista Ultimate (64-bit)

 BIOS Settings
   Adjacent Cache Line Prefetch set to ON

Base Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qauto-ilp32   -Qparallel   /F1000000000   shlw64mt.lib   libguide40.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qauto-ilp32   -Qparallel   -Qcxx_features   /F1000000000   shlw64mt.lib   libguide40.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   -Qauto-ilp32   -Qparallel   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   -Qauto-ilp32   -Qparallel   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Oa   /F1000000000   shlw64mt.lib   libguide40.lib    -link /FORCE:MULTIPLE
470.lbm:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F1000000000   shlw64mt.lib   libguide40.lib    -link /FORCE:MULTIPLE
482.sphinx3:  -fast   -Qauto-ilp32   -Qunroll2   /F1000000000   shlw64mt.lib   libguide40.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Oa   -Qcxx_features   /F1000000000   shlw64mt.lib   libguide40.lib    -link /FORCE:MULTIPLE
447.dealII:  basepeak = yes
450.soplex:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qparallel   -Qcxx_features   /F1000000000   shlw64mt.lib   libguide40.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll4   -Qansi-alias   -Qcxx_features   /F1000000000   shlw64mt.lib   libguide40.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -fast   -Qauto-ilp32   -Qparallel   -Qprefetch   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
416.gamess:  basepeak = yes
434.zeusmp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll4   -Qauto   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Oa   -Qprefetch   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
436.cactusADM:  basepeak = yes
454.calculix:  -fast   -Qauto-ilp32   -Qunroll-aggressive   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.ic10.1.windows.flags.20090714.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.ic10.1.windows.flags.20090714.01.xml.
