SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Intel Corporation

Lenovo ThinkPad T61 (Intel Core 2 Duo T9500)

CPU2006 license: 13 Test date: Dec-2007
Test sponsor: Intel Corporation Hardware Availability: Jan-2008
Tested by: Intel Corporation Software Availability: Nov-2007

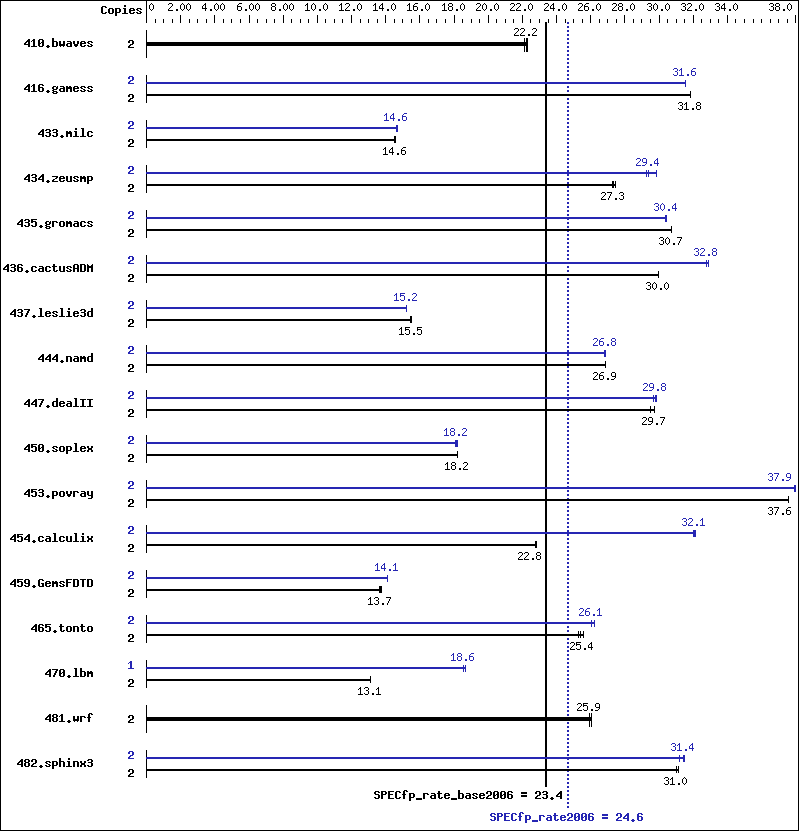

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Duo T9500
CPU Characteristics:
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 2 GB (2x1GB Hynix DDR2-667 CL5)
Disk Subsystem: Hitachi 100 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate (32-bit)
Compiler: Intel C++ Compiler for IA32 version 10.1
Build 20070913 Package ID: w_cc_p_10.1.011
Intel Fortran Compiler for IA32 version 10.1
Build 20070913 Package ID: w_fc_p_10.1.011
Microsoft Visual Studio 2005 SP1 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None
SmartHeap Library Version 8.1 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 1220 22.3 1229 22.1 1224 22.2 2 1220 22.3 1229 22.1 1224 22.2
416.gamess 2 1230 31.8 1230 31.8 1230 31.8 2 1241 31.6 1241 31.6 1242 31.5
433.milc 2 1257 14.6 1263 14.5 1258 14.6 2 1251 14.7 1255 14.6 1255 14.6
434.zeusmp 2 666 27.3 664 27.4 668 27.3 2 619 29.4 622 29.3 610 29.9
435.gromacs 2 465 30.7 465 30.7 465 30.7 2 469 30.4 470 30.4 470 30.4
436.cactusADM 2 798 30.0 798 30.0 797 30.0 2 727 32.9 729 32.8 729 32.8
437.leslie3d 2 1214 15.5 1216 15.5 1213 15.5 2 1234 15.2 1237 15.2 1235 15.2
444.namd 2 597 26.9 597 26.9 597 26.9 2 597 26.9 598 26.8 598 26.8
447.dealII 2 770 29.7 775 29.5 769 29.7 2 772 29.7 766 29.9 768 29.8
450.soplex 2 918 18.2 915 18.2 917 18.2 2 922 18.1 917 18.2 918 18.2
453.povray 2 283 37.6 283 37.6 283 37.6 2 280 38.0 281 37.9 281 37.9
454.calculix 2 725 22.8 725 22.8 723 22.8 2 514 32.1 514 32.1 515 32.0
459.GemsFDTD 2 1551 13.7 1554 13.7 1541 13.8 2 1504 14.1 1505 14.1 1504 14.1
465.tonto 2 778 25.3 775 25.4 770 25.6 2 751 26.2 755 26.1 755 26.1
470.lbm 2 2093 13.1 2093 13.1 2092 13.1 1 736 18.7 740 18.6 740 18.6
481.wrf 2 862 25.9 862 25.9 858 26.0 2 862 25.9 862 25.9 858 26.0
482.sphinx3 2 1252 31.1 1256 31.0 1257 31.0 2 1238 31.5 1249 31.2 1241 31.4

General Notes

 The system bus runs at 800 MHz
 Binaries were built on Windows Vista (32-bit)
 The following VS 2005 SP1 updates were applied: KB926601 and KB932232

Base Compiler Invocation

C benchmarks:

 icl -Qvc8   -Qc99

C++ benchmarks:

 icl -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc8   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F1000000000

C++ benchmarks:

 -fast   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F1000000000

Benchmarks using both Fortran and C:

 -fast   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc8   -Qc99

C++ benchmarks:

 icl -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc8   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -Qunroll2   -Oa   /F1000000000
470.lbm:  -fast   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F1000000000
482.sphinx3:  -fast   -Qunroll2   /F1000000000

C++ benchmarks:

444.namd:  -fast   -Oa   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
447.dealII:  -fast   -Qunroll2   -Qprefetch   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
450.soplex:  -fast   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
453.povray:  -fast   -Qunroll4   -Qansi-alias   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -fast   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   /F1000000000
437.leslie3d:  -fast   -Qprefetch   /F1000000000
459.GemsFDTD:  -fast   -Qunroll2   -Ob0   -Qprefetch   /F1000000000
465.tonto:  -fast   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  -fast   -Oa   -Qprefetch   /F1000000000
436.cactusADM:  -fast   -Qunroll2   -Qprefetch   /F1000000000
454.calculix:  -fast   -Qunroll-aggressive   /F1000000000
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.09.xml.
