| CPU2006 license: | 11 | Test date: | Dec-2007 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Jan-2008 |
| Tested by: | IBM Corporation | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5420 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 2493 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2 GB DDR2-5300F ECC) |
| Disk Subsystem: | 1 x 36 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64), Kernel 2.6.16.21-0.8-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap 8.1 Binutils 2.17.50.0.15 |

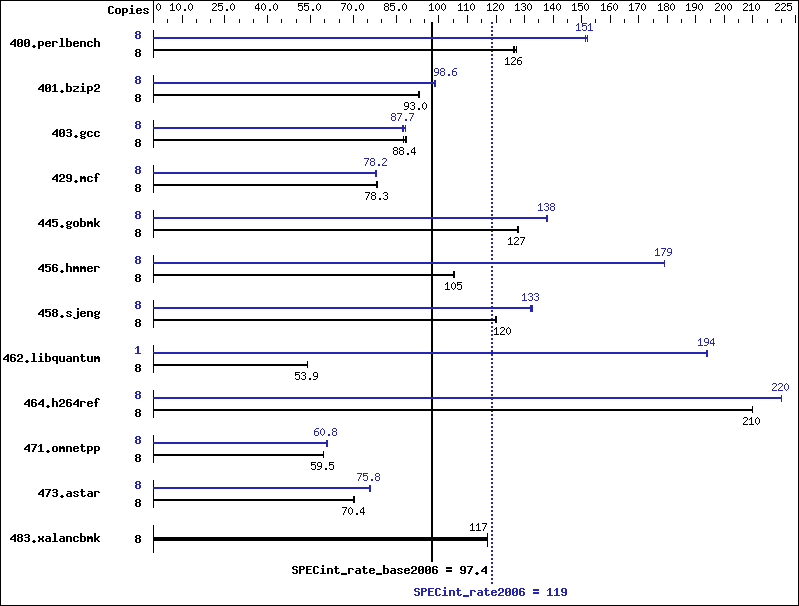

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 619 | 126 | 614 | 127 | 618 | 126 | 8 | 516 | 151 | 514 | 152 | 517 | 151 |
| 401.bzip2 | 8 | 830 | 93.0 | 827 | 93.4 | 830 | 93.0 | 8 | 783 | 98.6 | 784 | 98.4 | 781 | 98.8 |
| 403.gcc | 8 | 734 | 87.7 | 725 | 88.8 | 729 | 88.4 | 8 | 734 | 87.7 | 738 | 87.2 | 730 | 88.3 |
| 429.mcf | 8 | 930 | 78.5 | 931 | 78.3 | 933 | 78.2 | 8 | 933 | 78.2 | 933 | 78.2 | 937 | 77.9 |
| 445.gobmk | 8 | 658 | 127 | 656 | 128 | 658 | 127 | 8 | 609 | 138 | 610 | 138 | 607 | 138 |
| 456.hmmer | 8 | 709 | 105 | 710 | 105 | 709 | 105 | 8 | 417 | 179 | 417 | 179 | 417 | 179 |
| 458.sjeng | 8 | 807 | 120 | 806 | 120 | 807 | 120 | 8 | 732 | 132 | 730 | 133 | 730 | 133 |
| 462.libquantum | 8 | 3073 | 53.9 | 3072 | 54.0 | 3074 | 53.9 | 1 | 107 | 194 | 107 | 194 | 107 | 194 |
| 464.h264ref | 8 | 844 | 210 | 843 | 210 | 843 | 210 | 8 | 804 | 220 | 805 | 220 | 805 | 220 |
| 471.omnetpp | 8 | 840 | 59.5 | 840 | 59.5 | 840 | 59.5 | 8 | 823 | 60.8 | 822 | 60.8 | 823 | 60.8 |
| 473.astar | 8 | 796 | 70.5 | 801 | 70.1 | 797 | 70.4 | 8 | 741 | 75.7 | 741 | 75.8 | 740 | 75.9 |
| 483.xalancbmk | 8 | 472 | 117 | 472 | 117 | 472 | 117 | 8 | 472 | 117 | 472 | 117 | 472 | 117 |
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode Hardware Sector Prefetch Enabled and Adjacent Sector Prefetch Disabled OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M Powersaved dameon was disabled in OS taskset utility used to bind CPU(s) to processes
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
