| CPU2006 license: | 22 | Test date: | Jan-2008 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Jan-2008 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5260 |
| CPU Characteristics: | |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1 x SATA II, 400 GB, 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64, Version 10.1, Build 20070913 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library, Version 8.1 binutils-2.17.50.0.5-0.1.x86_64 |

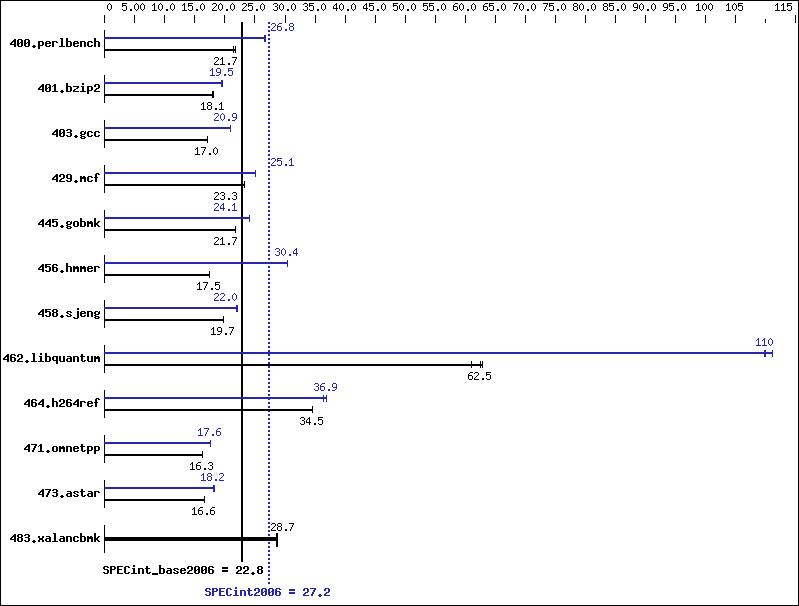

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 457 | 21.4 | 449 | 21.7 | 451 | 21.7 | 365 | 26.8 | 368 | 26.6 | 364 | 26.8 |
| 401.bzip2 | 532 | 18.1 | 534 | 18.1 | 537 | 18.0 | 495 | 19.5 | 494 | 19.5 | 494 | 19.5 |
| 403.gcc | 471 | 17.1 | 473 | 17.0 | 472 | 17.0 | 385 | 20.9 | 385 | 20.9 | 384 | 21.0 |
| 429.mcf | 391 | 23.3 | 392 | 23.3 | 392 | 23.3 | 364 | 25.0 | 363 | 25.1 | 363 | 25.1 |
| 445.gobmk | 483 | 21.7 | 483 | 21.7 | 483 | 21.7 | 435 | 24.1 | 435 | 24.1 | 435 | 24.1 |
| 456.hmmer | 533 | 17.5 | 533 | 17.5 | 533 | 17.5 | 307 | 30.4 | 307 | 30.4 | 307 | 30.4 |
| 458.sjeng | 613 | 19.7 | 611 | 19.8 | 613 | 19.7 | 552 | 21.9 | 551 | 22.0 | 550 | 22.0 |
| 462.libquantum | 329 | 62.9 | 332 | 62.5 | 339 | 61.1 | 188 | 110 | 186 | 111 | 189 | 110 |
| 464.h264ref | 640 | 34.6 | 641 | 34.5 | 641 | 34.5 | 600 | 36.9 | 607 | 36.4 | 599 | 37.0 |
| 471.omnetpp | 384 | 16.3 | 383 | 16.3 | 383 | 16.3 | 357 | 17.5 | 356 | 17.6 | 355 | 17.6 |
| 473.astar | 422 | 16.6 | 424 | 16.6 | 422 | 16.6 | 386 | 18.2 | 386 | 18.2 | 388 | 18.1 |
| 483.xalancbmk | 241 | 28.7 | 241 | 28.7 | 241 | 28.6 | 241 | 28.7 | 241 | 28.7 | 241 | 28.6 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores (default)
Platform Notes
BIOS configuration: Enhanced Speedstep Technology = Disable Hardware Prefetch = Enable, Adjacent Sector Prefetch = Enable SnoopFilter = Disable
General Notes
All binaries were built with 32-bit Intel compiler except: 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel compiler by changing the path for include and library files. For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -vec-guard-write -parallel -par-runtime-control |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
