CPU2006 license: | 11 | Test date: | Feb-2008 |
---|---|---|---|
Test sponsor: | IBM Corporation | Hardware Availability: | Feb-2007 |
Tested by: | IBM Corporation | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5320 |
CPU Characteristics: | 1066MHz system bus |
CPU MHz: | 1866 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8 x 2 GB DDR2-5300F ECC) |
Disk Subsystem: | 1 x 36 GB SAS, 15000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSE Linux Enterprise Server 10 (x86_64), Kernel 2.6.16.21-0.8-smp |
Compiler: | Intel C++ and Fortran Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008, l_fc_p_10.1.008 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Multi-user, run level 3 |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.17.50.0.15 |

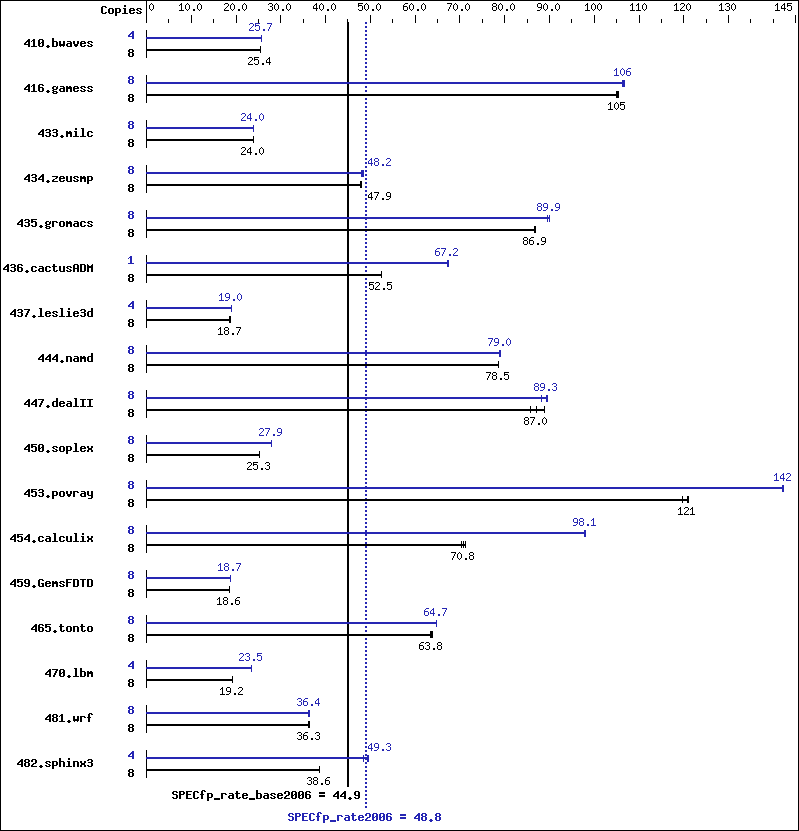

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 4285 | 25.4 | 4284 | 25.4 | 4285 | 25.4 | 4 | 2121 | 25.6 | 2119 | 25.7 | 2118 | 25.7 |
416.gamess | 8 | 1487 | 105 | 1492 | 105 | 1489 | 105 | 8 | 1474 | 106 | 1468 | 107 | 1471 | 106 |
433.milc | 8 | 3062 | 24.0 | 3063 | 24.0 | 3064 | 24.0 | 8 | 3065 | 24.0 | 3064 | 24.0 | 3063 | 24.0 |
434.zeusmp | 8 | 1518 | 47.9 | 1516 | 48.0 | 1525 | 47.7 | 8 | 1510 | 48.2 | 1519 | 47.9 | 1503 | 48.4 |
435.gromacs | 8 | 658 | 86.9 | 658 | 86.9 | 658 | 86.8 | 8 | 635 | 89.9 | 637 | 89.7 | 635 | 89.9 |
436.cactusADM | 8 | 1818 | 52.6 | 1824 | 52.4 | 1820 | 52.5 | 1 | 177 | 67.4 | 178 | 67.2 | 178 | 67.2 |
437.leslie3d | 8 | 4037 | 18.6 | 4017 | 18.7 | 4030 | 18.7 | 4 | 1974 | 19.0 | 1978 | 19.0 | 1970 | 19.1 |
444.namd | 8 | 817 | 78.5 | 817 | 78.5 | 817 | 78.6 | 8 | 812 | 79.0 | 812 | 79.0 | 814 | 78.8 |
447.dealII | 8 | 1052 | 87.0 | 1029 | 89.0 | 1068 | 85.7 | 8 | 1021 | 89.6 | 1025 | 89.3 | 1036 | 88.3 |
450.soplex | 8 | 2635 | 25.3 | 2636 | 25.3 | 2640 | 25.3 | 8 | 2387 | 27.9 | 2398 | 27.8 | 2391 | 27.9 |
453.povray | 8 | 355 | 120 | 352 | 121 | 351 | 121 | 8 | 299 | 142 | 300 | 142 | 299 | 142 |
454.calculix | 8 | 938 | 70.4 | 932 | 70.8 | 927 | 71.2 | 8 | 673 | 98.1 | 673 | 98.1 | 674 | 97.9 |
459.GemsFDTD | 8 | 4572 | 18.6 | 4568 | 18.6 | 4580 | 18.5 | 8 | 4543 | 18.7 | 4539 | 18.7 | 4536 | 18.7 |
465.tonto | 8 | 1235 | 63.8 | 1231 | 64.0 | 1240 | 63.5 | 8 | 1216 | 64.7 | 1216 | 64.7 | 1216 | 64.7 |
470.lbm | 8 | 5741 | 19.1 | 5739 | 19.2 | 5739 | 19.2 | 4 | 2337 | 23.5 | 2336 | 23.5 | 2337 | 23.5 |
481.wrf | 8 | 2464 | 36.3 | 2459 | 36.3 | 2457 | 36.4 | 8 | 2455 | 36.4 | 2469 | 36.2 | 2456 | 36.4 |
482.sphinx3 | 8 | 4030 | 38.7 | 4035 | 38.6 | 4038 | 38.6 | 4 | 1609 | 48.4 | 1583 | 49.3 | 1575 | 49.5 |
All benchmarks compiled in 64-bit mode except 437.leslie3d, 450.soplex, 470.lbm and 482.sphinx3, at peak, are compiled in 32-bit mode Hardware Sector Prefetch Disabled and Adjacent Sector Prefetch Disabled OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M Powersaved dameon was disabled in OS taskset utility used to bind CPU(s) to processes
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-fast |
-fast |
-fast |
-fast |
/opt/intel/cc/10.1.008/bin/icc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include | |
433.milc: | icc |
icpc | |
450.soplex: | /opt/intel/cc/10.1.008/bin/icpc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include |
ifort | |
437.leslie3d: | /opt/intel/fc/10.1.008/bin/ifort -L/opt/intel/fc/10.1.008/lib -I/opt/intel/fc/10.1.008/include |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
470.lbm: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -scalar-rep- -prefetch -opt-malloc-options=3 |
482.sphinx3: | -fast -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -fast -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -ansi-alias |
410.bwaves: | -fast -prefetch |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -opt-malloc-options=3 |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -prefetch |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -prefetch -parallel -auto-ilp32 |
454.calculix: | -fast -unroll-aggressive -auto-ilp32 |
481.wrf: | -fast -auto-ilp32 |
