| CPU2006 license: | 13 | Test date: | Feb-2008 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Mar-2008 |
| Tested by: | Intel Corporation | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core 2 Quad Q9450 |
| CPU Characteristics: | 2.66 GHz, 1333 FSB |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 4 GB (4x1GB Micron DDR2-800 CL5) |
| Disk Subsystem: | Seagate 320GB NCQ SATA, 16MB cache, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Vista Ultimate (64-bit) |
| Compiler: | Intel C++ Compiler for IA32 version 10.1 Build 20070913 Package ID: w_cc_p_10.1.011 Microsoft Visual Studio 2005 SP1 (for libraries) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.1 from http://www.microquill.com/ |

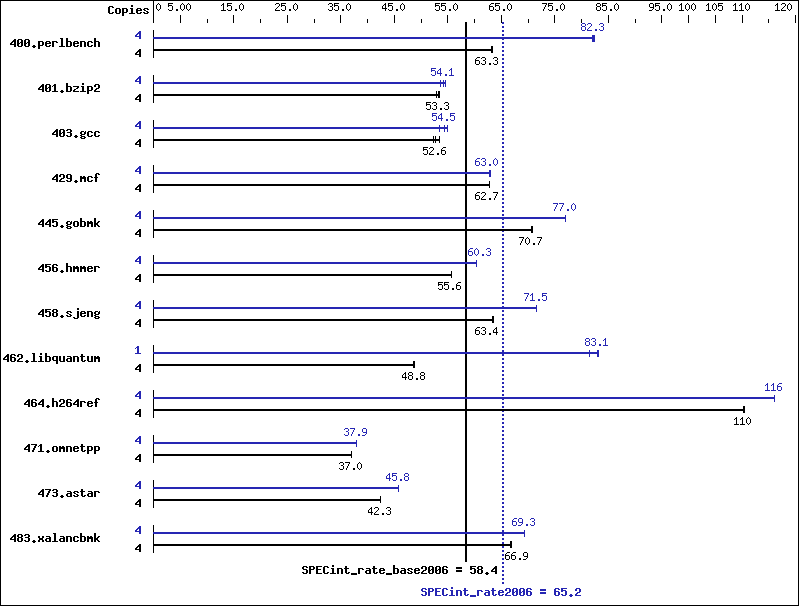

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 617 | 63.3 | 618 | 63.3 | 619 | 63.1 | 4 | 475 | 82.3 | 476 | 82.1 | 475 | 82.3 |
| 401.bzip2 | 4 | 723 | 53.4 | 724 | 53.3 | 730 | 52.9 | 4 | 713 | 54.1 | 708 | 54.5 | 720 | 53.6 |
| 403.gcc | 4 | 615 | 52.4 | 612 | 52.6 | 603 | 53.4 | 4 | 591 | 54.5 | 587 | 54.9 | 602 | 53.4 |
| 429.mcf | 4 | 581 | 62.8 | 582 | 62.7 | 581 | 62.7 | 4 | 579 | 63.0 | 579 | 63.0 | 580 | 62.9 |
| 445.gobmk | 4 | 593 | 70.7 | 593 | 70.7 | 594 | 70.7 | 4 | 545 | 77.0 | 546 | 76.9 | 545 | 77.0 |
| 456.hmmer | 4 | 671 | 55.6 | 671 | 55.6 | 671 | 55.6 | 4 | 619 | 60.3 | 619 | 60.3 | 619 | 60.3 |
| 458.sjeng | 4 | 764 | 63.4 | 763 | 63.4 | 762 | 63.5 | 4 | 676 | 71.5 | 677 | 71.5 | 676 | 71.6 |
| 462.libquantum | 4 | 1699 | 48.8 | 1698 | 48.8 | 1703 | 48.7 | 1 | 249 | 83.1 | 249 | 83.1 | 254 | 81.5 |
| 464.h264ref | 4 | 803 | 110 | 803 | 110 | 802 | 110 | 4 | 762 | 116 | 762 | 116 | 762 | 116 |
| 471.omnetpp | 4 | 675 | 37.0 | 676 | 37.0 | 676 | 37.0 | 4 | 659 | 37.9 | 660 | 37.9 | 660 | 37.9 |
| 473.astar | 4 | 663 | 42.3 | 663 | 42.4 | 663 | 42.3 | 4 | 614 | 45.8 | 614 | 45.8 | 614 | 45.7 |
| 483.xalancbmk | 4 | 413 | 66.9 | 414 | 66.7 | 413 | 66.9 | 4 | 398 | 69.3 | 398 | 69.3 | 398 | 69.3 |
General Notes
Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply Product description located as of 03/2008: http://www.intel.com/products/motherboard/DQ35JO/index.htm The system bus runs at 1333 MHz System was configured with Asus EN8800GTX discrete graphics card Binaries were built on Windows Vista Ultimate (32-bit) The following VS 2005 SP1 updates were applied: KB926601 and KB932232 OMP_NUM_THREADS was set to number of logical processors as seen by the OS KMP_AFFINITY was set to physical,0 submit was disabled for 462.libquantum at peak.
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -fast -Qvec-guard-write /F512000000 |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qprefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qprefetch /F512000000 |
| 403.gcc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 |
| 429.mcf: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qprefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 445.gobmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxT -O2 -Qipo -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias -Qopt-multi-version-aggressive /F512000000 |
| 458.sjeng: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 /F512000000 |
| 462.libquantum: | -fast -Qunroll4 -Ob0 -Qprefetch -Qopt-streaming-stores:always -Qparallel -Qpar-runtime-control /F512000000 |
| 464.h264ref: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias /F512000000 |
C++ benchmarks:
| 471.omnetpp: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qopt-ra-region-strategy=block -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qopt-ra-region-strategy=routine -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
