CPU2006 license: | 55 | Test date: | Feb-2008 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Mar-2008 |
Tested by: | Dell Inc. | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5460 |
CPU Characteristics: | 1333 MHz system bus |
CPU MHz: | 3166 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (4x4 GB DDR2-667) |
Disk Subsystem: | 1 x 300 GB SAS 15k RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ and Fortran Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008, l_fc_p_10.1.008 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

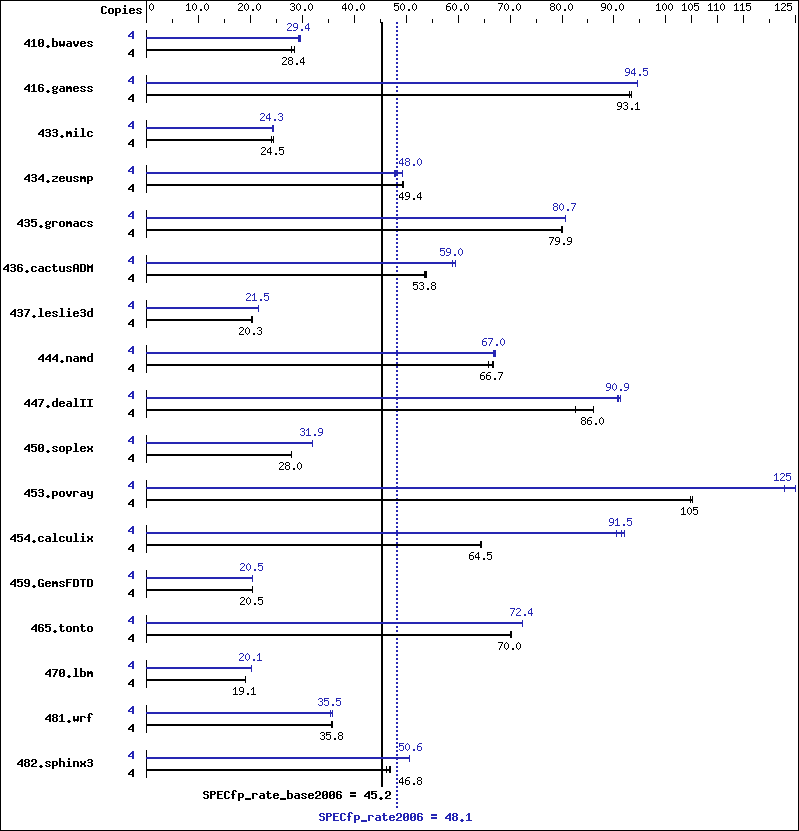

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 4 | 1941 | 28.0 | 1912 | 28.4 | 1913 | 28.4 | 4 | 1838 | 29.6 | 1849 | 29.4 | 1856 | 29.3 |
416.gamess | 4 | 840 | 93.3 | 841 | 93.1 | 842 | 93.1 | 4 | 829 | 94.5 | 829 | 94.5 | 829 | 94.4 |
433.milc | 4 | 1521 | 24.1 | 1497 | 24.5 | 1499 | 24.5 | 4 | 1505 | 24.4 | 1513 | 24.3 | 1511 | 24.3 |
434.zeusmp | 4 | 740 | 49.2 | 738 | 49.4 | 736 | 49.4 | 4 | 739 | 49.2 | 758 | 48.0 | 763 | 47.7 |
435.gromacs | 4 | 358 | 79.9 | 358 | 79.9 | 357 | 80.0 | 4 | 354 | 80.7 | 354 | 80.7 | 354 | 80.7 |
436.cactusADM | 4 | 894 | 53.4 | 888 | 53.9 | 889 | 53.8 | 4 | 811 | 58.9 | 810 | 59.0 | 804 | 59.4 |
437.leslie3d | 4 | 1843 | 20.4 | 1853 | 20.3 | 1853 | 20.3 | 4 | 1750 | 21.5 | 1750 | 21.5 | 1748 | 21.5 |
444.namd | 4 | 481 | 66.7 | 480 | 66.8 | 488 | 65.8 | 4 | 481 | 66.7 | 479 | 67.0 | 478 | 67.1 |
447.dealII | 4 | 531 | 86.2 | 532 | 86.0 | 554 | 82.6 | 4 | 502 | 91.2 | 505 | 90.7 | 503 | 90.9 |
450.soplex | 4 | 1193 | 28.0 | 1196 | 27.9 | 1193 | 28.0 | 4 | 1047 | 31.9 | 1046 | 31.9 | 1047 | 31.9 |
453.povray | 4 | 203 | 105 | 203 | 105 | 203 | 105 | 4 | 170 | 125 | 170 | 125 | 173 | 123 |
454.calculix | 4 | 511 | 64.5 | 512 | 64.5 | 513 | 64.3 | 4 | 361 | 91.5 | 365 | 90.4 | 359 | 91.9 |
459.GemsFDTD | 4 | 2078 | 20.4 | 2075 | 20.5 | 2070 | 20.5 | 4 | 2075 | 20.5 | 2088 | 20.3 | 2074 | 20.5 |
465.tonto | 4 | 560 | 70.3 | 562 | 70.0 | 562 | 70.0 | 4 | 544 | 72.4 | 543 | 72.5 | 543 | 72.4 |
470.lbm | 4 | 2883 | 19.1 | 2882 | 19.1 | 2880 | 19.1 | 4 | 2729 | 20.1 | 2729 | 20.1 | 2728 | 20.1 |
481.wrf | 4 | 1251 | 35.7 | 1249 | 35.8 | 1245 | 35.9 | 4 | 1262 | 35.4 | 1248 | 35.8 | 1258 | 35.5 |
482.sphinx3 | 4 | 1690 | 46.1 | 1666 | 46.8 | 1657 | 47.0 | 4 | 1539 | 50.6 | 1542 | 50.5 | 1537 | 50.7 |
OMP_NUM_THREADS set to number of cores KMP_STACK_SIZE set to 64M KMP_AFFINITY set to physical,0
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
BIOS Settings: Adjacent Cache Line Prefetch = Disabled (default Enabled) Hardware Prefetcher = Disabled (default Enabled)
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-fast |
-fast |
-fast |
-fast |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
470.lbm: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -scalar-rep- -prefetch -opt-malloc-options=3 |
482.sphinx3: | -fast -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -fast -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -ansi-alias |
410.bwaves: | -fast -prefetch |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -opt-malloc-options=3 |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -prefetch |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -prefetch -auto-ilp32 |
454.calculix: | -fast -unroll-aggressive -auto-ilp32 |
481.wrf: | -fast -auto-ilp32 |
