SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL385 G5
(2.3 GHz AMD Opteron 2356)

CPU2006 license: 3 Test date: Mar-2008
Test sponsor: Hewlett-Packard Company Hardware Availability: Mar-2008
Tested by: Hewlett-Packard Company Software Availability: May-2008

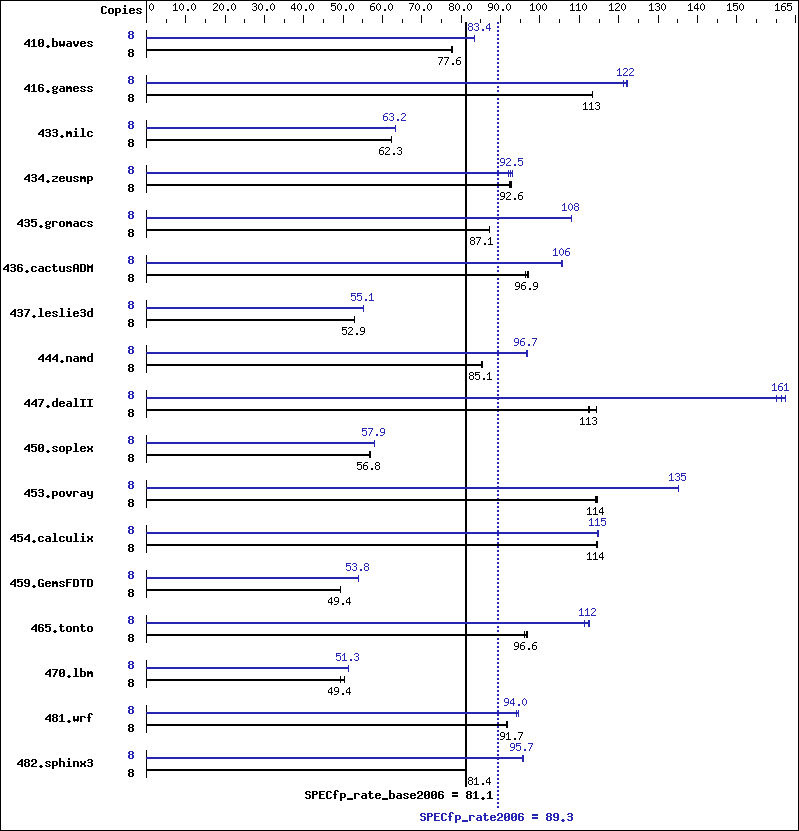

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2356
CPU Characteristics:
CPU MHz: 2300
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 2 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (8x4 GB, PC2-5300P CL5)
Disk Subsystem: 2x72 GB 15 K SAS
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: PGI Server Complete Version 7.2
PathScale Compiler Suite, Release Pre-3.2 Beta
Auto Parallel: No
File System: ext2
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils-2.18.50

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 1402 77.6 1398 77.8 1401 77.6 8 1304 83.4 1303 83.4 1305 83.3
416.gamess 8 1381 113   1383 113   1381 113   8 1283 122   1283 122   1292 121
433.milc 8 1180 62.3 1179 62.3 1179 62.3 8 1160 63.3 1161 63.2 1161 63.2
434.zeusmp 8 786 92.6 788 92.4 784 92.9 8 792 91.9 783 93.0 787 92.5
435.gromacs 8 656 87.1 656 87.1 656 87.1 8 529 108   529 108   529 108
436.cactusADM 8 993 96.3 987 96.9 986 97.0 8 907 105   905 106   903 106
437.leslie3d 8 1421 52.9 1420 53.0 1421 52.9 8 1362 55.2 1366 55.0 1364 55.1
444.namd 8 754 85.1 752 85.3 754 85.1 8 664 96.7 664 96.6 663 96.7
447.dealII 8 801 114   814 112   812 113   8 567 161   571 160   563 162
450.soplex 8 1175 56.8 1176 56.7 1174 56.8 8 1151 57.9 1150 58.0 1152 57.9
453.povray 8 372 114   371 115   373 114   8 315 135   315 135   315 135
454.calculix 8 577 114   576 115   578 114   8 576 115   574 115   575 115
459.GemsFDTD 8 1719 49.4 1719 49.4 1719 49.4 8 1579 53.8 1578 53.8 1579 53.8
465.tonto 8 820 96.0 813 96.8 815 96.6 8 700 112   699 113   708 111
470.lbm 8 2228 49.3 2186 50.3 2226 49.4 8 2142 51.3 2143 51.3 2143 51.3
481.wrf 8 974 91.7 977 91.5 973 91.8 8 951 94.0 951 94.0 946 94.5
482.sphinx3 8 1916 81.4 1915 81.4 1915 81.4 8 1628 95.8 1632 95.5 1630 95.7

Operating System Notes

 Environment stack size set to 'unlimited'
 Max locked memory set to 2097152
 PGI_HUGE_PAGES set to 896.
 Total number of huge pages available is 7168.
 NCPUS set to number of cores
 numactl used to bind processes to CPUs

Platform Notes

BIOS configuration:
  Power Regulator set to Static High Performance Mode

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -fast   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   --zc_eh   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

 -fast   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -fast   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

Peak Compiler Invocation

C benchmarks (except as noted below):

 pathcc
433.milc:  pgcc

C++ benchmarks (except as noted below):

 pathCC
444.namd:  pgcpp

Fortran benchmarks (except as noted below):

 pathf95
410.bwaves:  pgf95
434.zeusmp:  pgf95

Benchmarks using both Fortran and C (except as noted below):

 pgcc   pgf95
436.cactusADM:  pathcc   pathf95
481.wrf:  pathcc   pathf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -fastsse   -Msmartalloc=huge:150   -Msafeptr   -Mfprelaxed   -Mipa=jobs:4   -Mipa=inline   -Mipa=arg   -Mipa=const   -Mipa=ptr   -Mipa=shape   -tp barcelona-64   -Bstatic_pgi
470.lbm:  -march=barcelona   -Ofast   -CG:sse_cse_regs=0   -CG:locs_shallow_depth=1   -m3dnow
482.sphinx3:  -march=barcelona   -Ofast   -LNO:vintr=2   -CG:locs_shallow_depth=1

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo(pass 2)   -fast   -Mfprelaxed   -Msmartalloc=huge:150   --zc_eh   -Mnodepchk   -Munroll=n:4   -Munroll=m:8   -tp barcelona-64   -Bstatic_pgi
447.dealII:  -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -OPT:malloc_alg=1   -m32   -fno-exceptions
450.soplex:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -TENV:frame_pointer=off   -LNO:prefetch=1   -OPT:malloc_alg=1   -CG:load_exe=0
453.povray:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast

Fortran benchmarks:

410.bwaves:  -Mpfi(pass 1)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo(pass 2)   -fastsse   -Mfprelaxed   -Msmartalloc   -Mprefetch=distance:12   -Mprefetch=nta   -tp barcelona-64   -Bstatic_pgi
416.gamess:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  -fastsse   -Mfprelaxed   -Msmartalloc=huge:150   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
437.leslie3d:  -march=barcelona   -Ofast   -m3dnow   -OPT:unroll_size=256   -CG:load_exe=0
459.GemsFDTD:  -march=barcelona   -Ofast   -LNO:fission=2   -LNO:simd=2   -LNO:prefetch_ahead=1   -CG:load_exe=0
465.tonto:  -march=barcelona   -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525

Benchmarks using both Fortran and C:

435.gromacs:  -fast   -Mfpapprox=rsqrt   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi
436.cactusADM:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:blocking=off
454.calculix:  -fastsse   -Mfprelaxed   -Msmartalloc=huge:150   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
481.wrf:  -march=barcelona   -Ofast   -LNO:blocking=off   -LNO:prefetch_ahead=10   -m3dnow   -LANG:copyinout=off   -IPA:callee_limit=5000

Peak Other Flags

C benchmarks:

433.milc:  -w

C++ benchmarks:

444.namd:  -w

Fortran benchmarks:

410.bwaves:  -w
434.zeusmp:  -w

Benchmarks using both Fortran and C:

435.gromacs:  -w
454.calculix:  -w

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-PGI72-PS32-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-PGI72-PS32-flags.xml.
