SPEC® CFP2006 Result

HITACHI

BladeSymphony BS320 es (Intel Xeon L5320)

SPECfp®2006 = 14.3

SPECfp_base2006 = 12.2

CPU2006 license:	872	Test date:	Mar-2008
Test sponsor:	HITACHI	Hardware Availability:	Dec-2007
Tested by:	HITACHI	Software Availability:	Nov-2007

Hardware
CPU Name:	Intel Xeon L5320
CPU Characteristics:	1066MHz system bus
CPU MHz:	1860
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1, 2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB(4 x 4 GB PC2-5300F CAS 5-5-5)
Disk Subsystem:	1 x 147 GB 10000 rpm SAS
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 5.1 (Tikanga) Kernel 2.6.18-53.el5 on an x86_64
Compiler:	Intel C++ and Fortran Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008, l_fc_p_10.1.008
Auto Parallel:	Yes
File System:	ext3
System State:	Multi-user run level 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

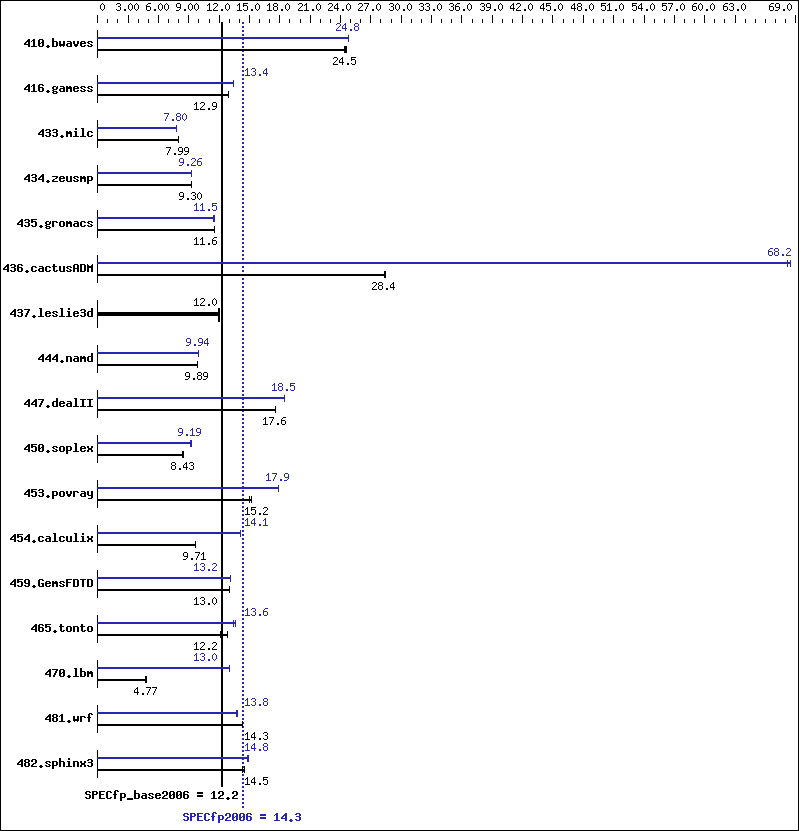

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	553	24.6	556	24.4	554	24.5	548	24.8	549	24.8	548	24.8
416.gamess	1514	12.9	1513	12.9	1513	12.9	1463	13.4	1464	13.4	1462	13.4
433.milc	1149	7.99	1151	7.97	1148	7.99	1178	7.80	1177	7.80	1181	7.77
434.zeusmp	980	9.28	979	9.30	979	9.30	983	9.26	985	9.24	982	9.26
435.gromacs	618	11.6	617	11.6	618	11.6	625	11.4	619	11.5	619	11.5
436.cactusADM	422	28.3	420	28.4	421	28.4	175	68.4	175	68.2	175	68.2
437.leslie3d	786	12.0	784	12.0	786	12.0	786	12.0	784	12.0	786	12.0
444.namd	810	9.90	811	9.89	811	9.89	808	9.93	806	9.95	807	9.94
447.dealII	651	17.6	652	17.6	652	17.5	619	18.5	619	18.5	620	18.5
450.soplex	989	8.43	990	8.43	994	8.39	907	9.19	909	9.18	905	9.22
453.povray	350	15.2	355	15.0	351	15.2	297	17.9	298	17.9	298	17.8
454.calculix	850	9.71	850	9.71	850	9.71	584	14.1	584	14.1	584	14.1
459.GemsFDTD	816	13.0	817	13.0	817	13.0	806	13.2	807	13.2	808	13.1
465.tonto	808	12.2	769	12.8	806	12.2	725	13.6	725	13.6	732	13.4
470.lbm	2888	4.76	2881	4.77	2870	4.79	1056	13.0	1054	13.0	1056	13.0
481.wrf	782	14.3	781	14.3	780	14.3	812	13.8	810	13.8	812	13.8
482.sphinx3	1339	14.6	1340	14.5	1361	14.3	1308	14.9	1316	14.8	1316	14.8

General Notes

'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
OMP_NUM_THREADS set to number of cores
KMP_AFFINITY set to physical,0

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-fast -parallel

C++ benchmarks:

-fast -parallel

Fortran benchmarks:

-fast -parallel

Benchmarks using both Fortran and C:

-fast -parallel

Peak Compiler Invocation

C benchmarks (except as noted below):

	/opt/intel/cc/10.1.008/bin/icc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include
433.milc:	icc

C++ benchmarks (except as noted below):

	icpc
450.soplex:	/opt/intel/cc/10.1.008/bin/icpc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:	-prof_gen(pass 1) -prof_use(pass 2) -fast -fno-alias -auto-ilp32
470.lbm:	-prof_gen(pass 1) -prof_use(pass 2) -fast -unroll2 -scalar-rep- -prefetch -opt-malloc-options=3
482.sphinx3:	-fast -unroll2

C++ benchmarks:

444.namd:	-prof_gen(pass 1) -prof_use(pass 2) -fast -fno-alias -auto-ilp32
447.dealII:	-prof_gen(pass 1) -prof_use(pass 2) -fast -unroll2 -ansi-alias -scalar-rep-
450.soplex:	-prof_gen(pass 1) -prof_use(pass 2) -fast -opt-malloc-options=3
453.povray:	-prof_gen(pass 1) -prof_use(pass 2) -fast -unroll4 -ansi-alias

Fortran benchmarks:

410.bwaves:	-fast -prefetch -parallel
416.gamess:	-prof_gen(pass 1) -prof_use(pass 2) -fast -unroll2 -Ob0 -ansi-alias -scalar-rep-
434.zeusmp:	-prof_gen(pass 1) -prof_use(pass 2) -fast
437.leslie3d:	basepeak = yes
459.GemsFDTD:	-prof_gen(pass 1) -prof_use(pass 2) -fast -unroll2 -Ob0 -prefetch -parallel
465.tonto:	-prof_gen(pass 1) -prof_use(pass 2) -fast -unroll4 -auto

Benchmarks using both Fortran and C:

435.gromacs:	-prof_gen(pass 1) -prof_use(pass 2) -fast -prefetch -auto-ilp32
436.cactusADM:	-prof_gen(pass 1) -prof_use(pass 2) -fast -unroll2 -prefetch -parallel -auto-ilp32
454.calculix:	-fast -unroll-aggressive -auto-ilp32
481.wrf:	-fast -parallel -prefetch -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10.1-FP-intel64-linux-flags.20090713.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10.1-FP-intel64-linux-flags.20090713.01.xml.
