SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/120Ei
(Intel Xeon E5205)

CPU2006 license: 9006 Test date: Apr-2008
Test sponsor: NEC Corporation Hardware Availability: Apr-2008
Tested by: NEC Corporation Software Availability: Nov-2007

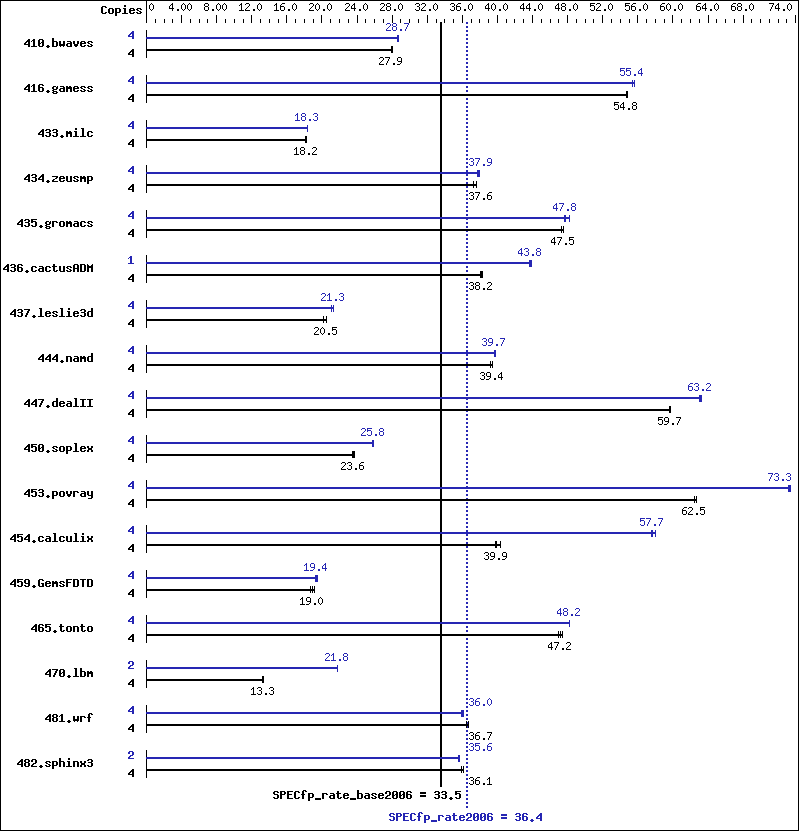

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5205
CPU Characteristics: 1.86 GHz, 6 MB L2, 1066 MHz bus
CPU MHz: 1867
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (8x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x250 GB SATAII, 7200RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ and Fortran Compiler for Linux32 and
Linux64
version 10.1 Build 20070913 Package ID:
l_cc_p_10.1.008,
l_fc_p_10.1.008
Auto Parallel: Yes
File System: ext2
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils-2.17.tar.gz, Version 2.17

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1942 28.0 1946 27.9 1946 27.9 4 1893 28.7 1901 28.6 1895 28.7
416.gamess 4 1430 54.8 1430 54.8 1431 54.7 4 1414 55.4 1409 55.6 1413 55.4
433.milc 4 2022 18.2 2016 18.2 2015 18.2 4 2005 18.3 2002 18.3 2002 18.3
434.zeusmp 4 976 37.3 968 37.6 968 37.6 4 958 38.0 964 37.8 961 37.9
435.gromacs 4 601 47.5 604 47.3 602 47.5 4 593 48.2 599 47.7 598 47.8
436.cactusADM 4 1248 38.3 1253 38.2 1256 38.0 1 273 43.7 272 43.9 273 43.8
437.leslie3d 4 1861 20.2 1836 20.5 1835 20.5 4 1767 21.3 1767 21.3 1779 21.1
444.namd 4 818 39.2 813 39.5 814 39.4 4 808 39.7 808 39.7 808 39.7
447.dealII 4 767 59.6 766 59.8 766 59.7 4 724 63.2 723 63.3 726 63.0
450.soplex 4 1420 23.5 1413 23.6 1407 23.7 4 1292 25.8 1292 25.8 1295 25.8
453.povray 4 340 62.6 341 62.4 341 62.5 4 291 73.2 290 73.4 290 73.3
454.calculix 4 829 39.8 826 39.9 819 40.3 4 569 58.0 573 57.6 572 57.7
459.GemsFDTD 4 2211 19.2 2237 19.0 2269 18.7 4 2179 19.5 2205 19.2 2188 19.4
465.tonto 4 830 47.4 838 47.0 834 47.2 4 816 48.2 817 48.2 816 48.2
470.lbm 4 4166 13.2 4135 13.3 4130 13.3 2 1263 21.8 1264 21.7 1262 21.8
481.wrf 4 1219 36.7 1218 36.7 1226 36.4 4 1245 35.9 1238 36.1 1242 36.0
482.sphinx3 4 2157 36.1 2170 35.9 2160 36.1 2 1097 35.5 1091 35.7 1096 35.6

Compiler Invocation Notes

  OMP_NUM_THREADS set to number of cores

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

Platform Notes

Bios settings:
Hardware Prefetcher:          Enabled
Adjacent Cache Line Prefetch: Enabled
Intel SpeedStep Technology:   Disabled

General Notes

All benchmarks compiled in 64-bit mode except 437.leslie3d,
450.soplex, 470.lbm and 482.sphinx3, for peak, are
compiled in 32-bit mode

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks (except as noted below):

 /opt/intel/cc/10.1.008/bin/icc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/10.1.008/bin/icpc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /opt/intel/fc/10.1.008/bin/ifort   -L/opt/intel/fc/10.1.008/lib   -I/opt/intel/fc/10.1.008/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast   -prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -opt-malloc-options=3
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -parallel   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  -fast   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-Intel-ic10.1-FP-intel64-linux-flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-Intel-ic10.1-FP-intel64-linux-flags.20090714.xml.
