SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge R805, AMD Opteron 2360 SE (2.50 GHz)

CPU2006 license: 55 Test date: Apr-2008
Test sponsor: Dell Inc. Hardware Availability: Jun-2008
Tested by: Dell Inc. Software Availability: May-2008

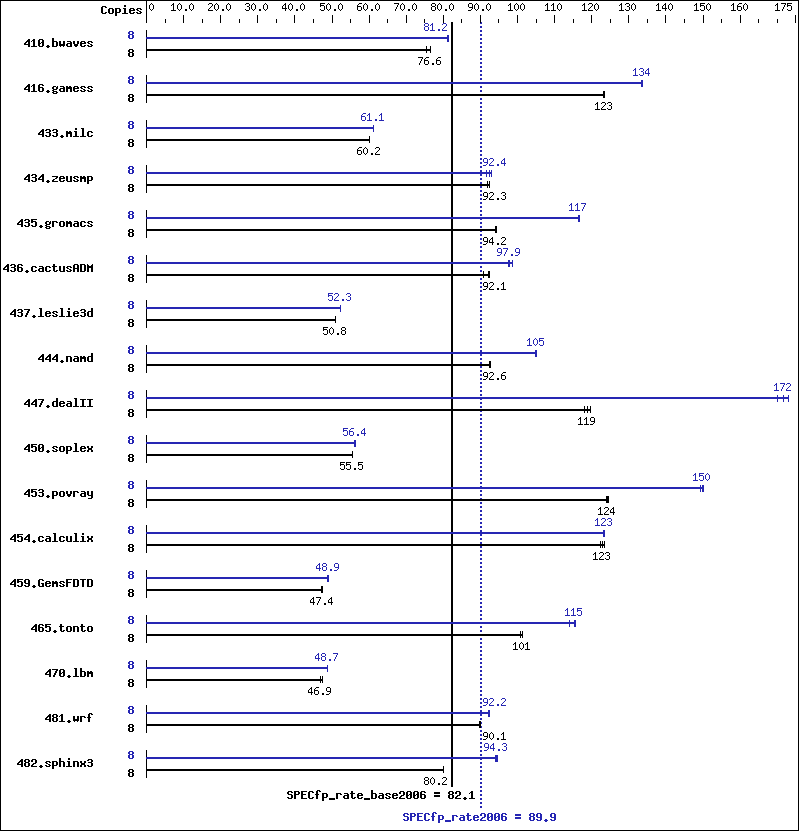

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2360 SE
CPU Characteristics:
CPU MHz: 2500
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 2 MB I+D on chip per chip
Other Cache: None
Memory: 16 GB (8x2GB, DDR2-667, CL5, Reg, Dual Rank)
Disk Subsystem: 1x73GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: PGI Server Complete Version 7.2
PathScale Compiler Suite Version 3.1
Auto Parallel: No
File System: ReiserFS
System State: Run Level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 1440 75.5 1420 76.6 1418 76.7 8 1334 81.5 1340 81.1 1339 81.2
416.gamess 8 1270 123   1272 123   1270 123   8 1174 133   1171 134   1171 134
433.milc 8 1219 60.2 1219 60.2 1220 60.2 8 1201 61.1 1202 61.1 1203 61.1
434.zeusmp 8 789 92.3 791 92.0 788 92.4 8 795 91.6 782 93.0 788 92.4
435.gromacs 8 606 94.2 607 94.1 607 94.2 8 490 117   489 117   490 117
436.cactusADM 8 1053 90.8 1033 92.5 1038 92.1 8 976 97.9 970 98.6 980 97.5
437.leslie3d 8 1479 50.8 1480 50.8 1480 50.8 8 1437 52.3 1436 52.4 1438 52.3
444.namd 8 693 92.6 693 92.6 693 92.6 8 611 105   611 105   613 105
447.dealII 8 770 119   775 118   765 120   8 529 173   533 172   538 170
450.soplex 8 1203 55.5 1202 55.5 1202 55.5 8 1188 56.1 1184 56.4 1183 56.4
453.povray 8 344 124   343 124   342 124   8 284 150   285 149   284 150
454.calculix 8 539 122   537 123   535 123   8 535 123   535 123   535 123
459.GemsFDTD 8 1791 47.4 1791 47.4 1795 47.3 8 1736 48.9 1734 49.0 1735 48.9
465.tonto 8 780 101   776 101   777 101   8 690 114   680 116   682 115
470.lbm 8 2343 46.9 2321 47.4 2342 46.9 8 2254 48.8 2255 48.7 2255 48.7
481.wrf 8 996 89.7 992 90.1 992 90.1 8 968 92.3 970 92.2 970 92.1
482.sphinx3 8 1945 80.2 1945 80.2 1945 80.2 8 1650 94.5 1653 94.3 1660 94.0

Operating System Notes

 'numactl' was used to bind copies to the cores
 Environment variable PGI_HUGE_PAGES set to 150
 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2457600' was used to set environment locked pages in memory quantity
 Set vm/nr_hugepages=1200 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -fast   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   --zc_eh   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

 -fast   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -fast   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

Peak Compiler Invocation

C benchmarks (except as noted below):

 pathcc
433.milc:  pgcc

C++ benchmarks (except as noted below):

 pathCC
444.namd:  pgcpp

Fortran benchmarks (except as noted below):

 pathf95
410.bwaves:  pgf95
434.zeusmp:  pgf95

Benchmarks using both Fortran and C (except as noted below):

 pgcc   pgf95
436.cactusADM:  pathcc   pathf95
481.wrf:  pathcc   pathf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -fastsse   -Msmartalloc=huge:150   -Msafeptr   -Mfprelaxed   -Mipa=jobs:4   -Mipa=inline   -Mipa=arg   -Mipa=const   -Mipa=ptr   -Mipa=shape   -tp barcelona-64   -Bstatic_pgi
470.lbm:  -march=barcelona   -Ofast   -m3dnow
482.sphinx3:  -march=barcelona   -Ofast

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo(pass 2)   -fast   -Mfprelaxed   -Msmartalloc=huge:150   --zc_eh   -Mnodepchk   -Munroll=n:4   -Munroll=m:8   -tp barcelona-64   -Bstatic_pgi
447.dealII:  -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -OPT:malloc_alg=1   -m32   -fno-exceptions
450.soplex:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -TENV:frame_pointer=off   -LNO:prefetch=1
453.povray:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:load_exe=0

Fortran benchmarks:

410.bwaves:  -Mpfi(pass 1)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo(pass 2)   -fastsse   -Mfprelaxed   -Msmartalloc   -Mprefetch=distance:12   -Mprefetch=nta   -tp barcelona-64   -Bstatic_pgi
416.gamess:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  -fastsse   -Mfprelaxed   -Msmartalloc=huge:150   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
437.leslie3d:  -march=barcelona   -Ofast   -m3dnow   -OPT:unroll_size=256   -CG:load_exe=0   -OPT:malloc_alg=1
459.GemsFDTD:  -march=barcelona   -Ofast   -LNO:fission=2   -LNO:simd=2   -OPT:malloc_alg=1
465.tonto:  -march=barcelona   -Ofast   -OPT:malloc_alg=1   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525

Benchmarks using both Fortran and C:

435.gromacs:  -fast   -Mfpapprox=rsqrt   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi
436.cactusADM:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -WOPT:aggstr=0
454.calculix:  -fastsse   -Mfprelaxed   -Msmartalloc=huge:150   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
481.wrf:  -march=barcelona   -Ofast   -LNO:blocking=off   -LNO:prefetch_ahead=10   -OPT:malloc_alg=1   -m3dnow   -LANG:copyinout=off   -IPA:callee_limit=5000

Peak Other Flags

C benchmarks:

433.milc:  -w

C++ benchmarks:

444.namd:  -w

Fortran benchmarks:

410.bwaves:  -w
434.zeusmp:  -w

Benchmarks using both Fortran and C:

435.gromacs:  -w
454.calculix:  -w

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090713.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090713.xml.
