SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision T3400 (Intel E8500, 3.16 GHz)

SPECfp®2006 = 22.1

CPU2006 license: 55 Test date: Apr-2008
Test sponsor: Dell Inc. Hardware Availability: Jan-2008
Tested by: Dell Inc. Software Availability: Mar-2008

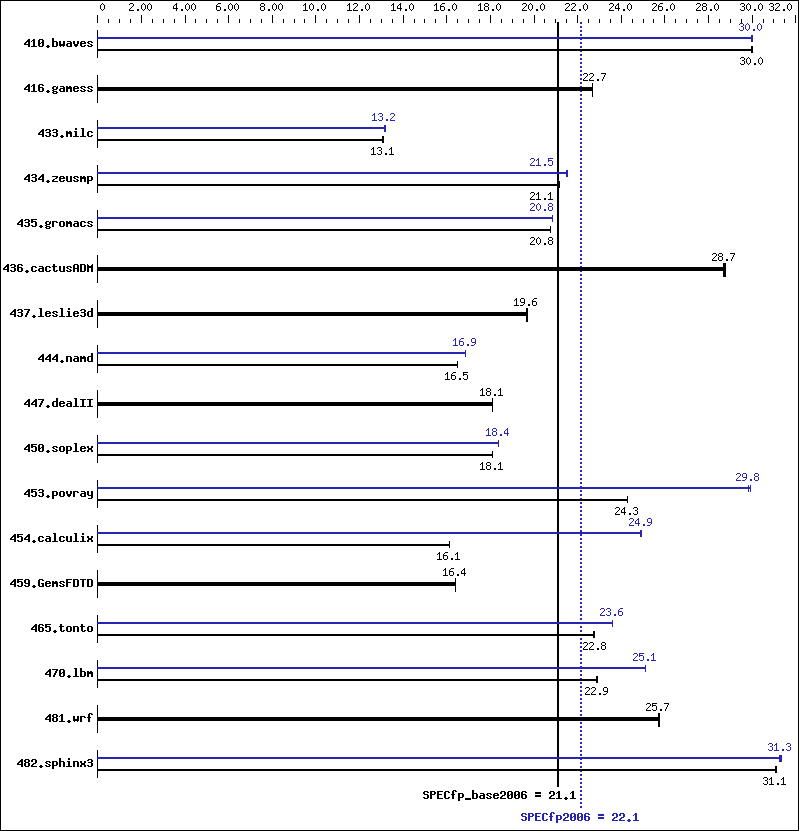

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Duo E8500
CPU Characteristics: 1333 MHz Bus Speed
CPU MHz: 3166
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB 800 MHz ECC CL6 DDR2)
Disk Subsystem: 1 x 160 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate (64-bit)
Compiler: Intel C++ Compiler for Intel 64, Version 10.1
Build 20080312 Package ID: w_cc_p_10.1.021
Intel Visual Fortran Compiler for Intel 64,
Version 10.0
Build 20080312 Package ID: w_fc_p_10.1.021
Microsoft Visual Studio 2005 SP1
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1 for x64

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 453 30.0 454 30.0 453 30.0 453 30.0 453 30.0 453 30.0
416.gamess 864 22.7 863 22.7 863 22.7 864 22.7 863 22.7 863 22.7
433.milc 702 13.1 701 13.1 701 13.1 697 13.2 697 13.2 698 13.2
434.zeusmp 431 21.1 431 21.1 430 21.1 423 21.5 423 21.5 423 21.5
435.gromacs 344 20.8 344 20.8 344 20.8 343 20.8 343 20.8 343 20.8
436.cactusADM 416 28.7 415 28.8 416 28.7 416 28.7 415 28.8 416 28.7
437.leslie3d 478 19.6 478 19.6 477 19.7 478 19.6 478 19.6 477 19.7
444.namd 486 16.5 486 16.5 486 16.5 475 16.9 475 16.9 475 16.9
447.dealII 633 18.1 633 18.1 633 18.1 633 18.1 633 18.1 633 18.1
450.soplex 461 18.1 460 18.1 461 18.1 453 18.4 453 18.4 453 18.4
453.povray 219 24.3 219 24.3 219 24.3 178 29.9 178 29.8 178 29.8
454.calculix 511 16.1 511 16.1 511 16.1 331 24.9 331 24.9 331 24.9
459.GemsFDTD 647 16.4 647 16.4 647 16.4 647 16.4 647 16.4 647 16.4
465.tonto 433 22.7 432 22.8 432 22.8 417 23.6 417 23.6 417 23.6
470.lbm 599 22.9 601 22.9 600 22.9 547 25.1 547 25.1 547 25.1
481.wrf 434 25.8 435 25.7 434 25.7 434 25.8 435 25.7 434 25.7
482.sphinx3 628 31.1 627 31.1 627 31.1 623 31.3 623 31.3 622 31.3

Base Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qauto-ilp32   -Qparallel   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qauto-ilp32   -Qparallel   -Qcxx_features   /F1000000000   shlw64m.lib   libguide40.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   -Qparallel   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   -Qauto-ilp32   -Qparallel   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Oa   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
470.lbm:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
482.sphinx3:  -fast   -Qauto-ilp32   -Qunroll2   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Oa   -Qcxx_features   /F1000000000   shlw64m.lib   libguide40.lib    -link /FORCE:MULTIPLE
447.dealII:  basepeak = yes
450.soplex:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qparallel   -Qcxx_features   /F1000000000   shlw64m.lib   libguide40.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll4   -Qansi-alias   -Qcxx_features   /F1000000000   shlw64m.lib   libguide40.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -fast   -Qauto-ilp32   -Qparallel   -Qprefetch   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
416.gamess:  basepeak = yes
434.zeusmp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll4   -Qauto   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Oa   -Qprefetch   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
436.cactusADM:  basepeak = yes
454.calculix:  -fast   -Qauto-ilp32   -Qunroll-aggressive   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.ic10.1.windows.flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.ic10.1.windows.flags.20090714.xml.
