SPEC® CINT2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter HS21 (Intel Xeon L5240)

CPU2006 license: 11 Test date: Feb-2008
Test sponsor: IBM Corporation Hardware Availability: May-2008
Tested by: IBM Corporation Software Availability: Nov-2007

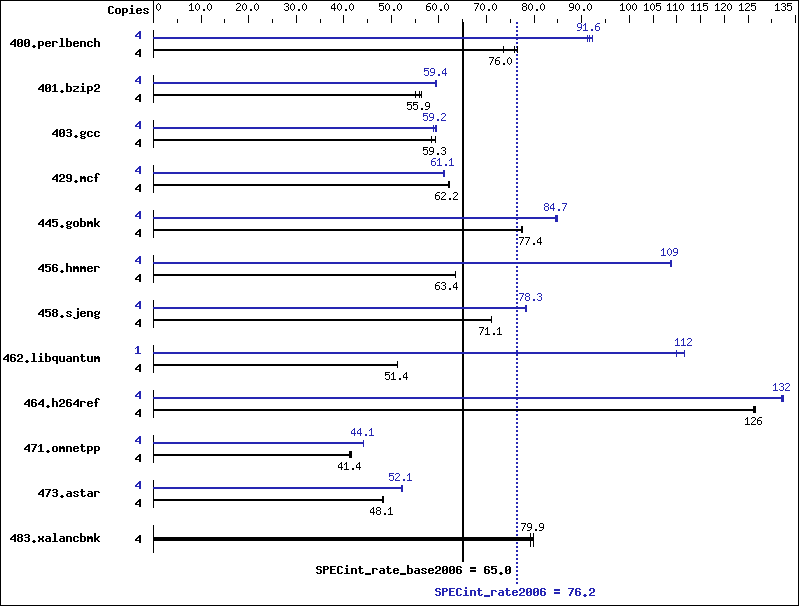

Benchmark results graph
Hardware
CPU Name: Intel Xeon L5240
CPU Characteristics: 1333MHz system bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2 GB DDR2-5300F ECC)
Disk Subsystem: 1 x 36 GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64),
Kernel 2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler 10.1 for Linux
Build 20070913 Package ID: l_cc_p_10.1.008
Auto Parallel: Yes
File System: ReiserFS
System State: Multi-user, run level 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap 8.1
Binutils 2.17.50.0.15

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 531 73.5 510 76.6 514 76.0 4 427 91.6 428 91.3 424 92.2
401.bzip2 4 686 56.3 690 55.9 700 55.1 4 649 59.4 651 59.3 649 59.5
403.gcc 4 551 58.5 543 59.3 543 59.3 4 542 59.4 548 58.8 544 59.2
429.mcf 4 587 62.2 587 62.2 588 62.0 4 597 61.1 596 61.2 598 61.0
445.gobmk 4 542 77.4 542 77.4 541 77.6 4 494 85.0 497 84.4 496 84.7
456.hmmer 4 589 63.4 589 63.4 588 63.5 4 344 109   343 109   343 109
458.sjeng 4 682 71.0 681 71.1 681 71.1 4 619 78.2 618 78.3 618 78.3
462.libquantum 4 1613 51.4 1613 51.4 1614 51.3 1 185 112   188 110   186 112
464.h264ref 4 702 126   700 126   701 126   4 670 132   668 132   670 132
471.omnetpp 4 604 41.4 600 41.7 606 41.2 4 567 44.1 567 44.1 566 44.1
473.astar 4 584 48.0 582 48.3 584 48.1 4 539 52.1 539 52.1 537 52.3
483.xalancbmk 4 345 79.9 348 79.3 345 79.9 4 345 79.9 348 79.3 345 79.9

General Notes

 All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer,
 for peak, are compiled in 64-bit mode
 Hardware Sector Prefetch Enabled and Adjacent Sector Prefetch Enabled
 OMP_NUM_THREADS set to number of cores
 KMP_AFFINITY set to physical,0
 KMP_STACKSIZE set to 64M
 taskset utility used to bind CPU(s) to processes

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -inline-calloc   -opt-malloc-options=3

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.1.008/bin/icc   -L/opt/intel/cce/10.1.008/lib   -I/opt/intel/cce/10.1.008/include
456.hmmer:  /opt/intel/cce/10.1.008/bin/icc   -L/opt/intel/cce/10.1.008/lib   -I/opt/intel/cce/10.1.008/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch
403.gcc:  -fast   -inline-calloc   -opt-malloc-options=3
429.mcf:  -fast   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -fast   -unroll2   -ansi-alias   -opt-multi-version-aggressive
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4
462.libquantum:  -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always   -vec-guard-write   -opt-malloc-options=3   -parallel   -par-runtime-control
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10.1-int-linux64-revC.20090713.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10.1-int-linux64-revC.20090713.xml.
