SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/120Gd
(Intel Xeon E5405)

CPU2006 license: 9006 Test date: May-2008
Test sponsor: NEC Corporation Hardware Availability: Apr-2008
Tested by: NEC Corporation Software Availability: Nov-2007

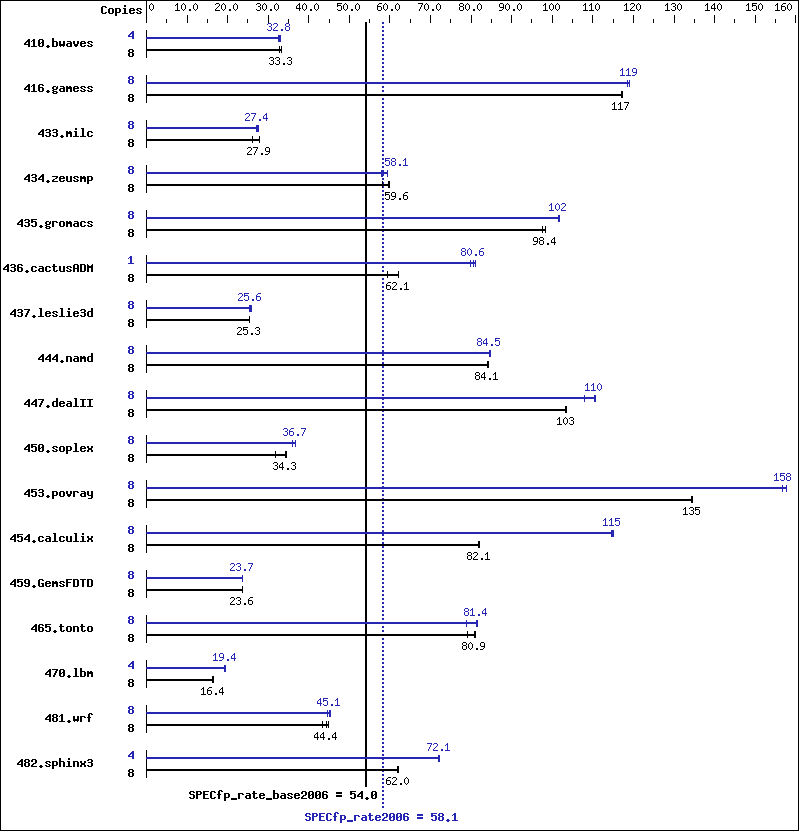

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5405
CPU Characteristics: 2.00 GHz, 2x6 MB L2 shared, 1333 MHz bus
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x250 GB SATAII, 7200RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ and Fortran Compiler for Linux32 and
Linux64
version 10.1 Build 20070913 Package ID:
l_cc_p_10.1.008,
l_fc_p_10.1.008
Auto Parallel: Yes
File System: ext2
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils-2.17.tar.gz, Version 2.17

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3306 32.9 3264 33.3 3270 33.3 4 1641 33.1 1667 32.6 1658 32.8
416.gamess 8 1337 117   1336 117   1338 117   8 1317 119   1315 119   1321 119
433.milc 8 2804 26.2 2633 27.9 2626 28.0 8 2667 27.5 2680 27.4 2699 27.2
434.zeusmp 8 1254 58.1 1222 59.6 1217 59.8 8 1224 59.5 1252 58.1 1255 58.0
435.gromacs 8 585 97.7 581 98.4 581 98.4 8 562 102   562 102   562 102
436.cactusADM 8 1608 59.5 1540 62.1 1536 62.2 1 148 80.6 147 81.1 150 79.9
437.leslie3d 8 2974 25.3 2972 25.3 2976 25.3 8 2913 25.8 2954 25.5 2939 25.6
444.namd 8 764 84.0 762 84.2 763 84.1 8 759 84.5 757 84.8 759 84.5
447.dealII 8 886 103   884 104   885 103   8 828 110   848 108   827 111
450.soplex 8 2107 31.7 1940 34.4 1948 34.3 8 1855 36.0 1816 36.7 1811 36.8
453.povray 8 317 134   316 135   316 135   8 270 158   271 157   270 158
454.calculix 8 804 82.1 808 81.7 803 82.2 8 576 115   573 115   575 115
459.GemsFDTD 8 3583 23.7 3604 23.6 3597 23.6 8 3600 23.6 3583 23.7 3583 23.7
465.tonto 8 995 79.1 973 80.9 971 81.1 8 999 78.8 967 81.4 964 81.7
470.lbm 8 6761 16.3 6706 16.4 6702 16.4 4 2846 19.3 2830 19.4 2817 19.5
481.wrf 8 2060 43.4 2012 44.4 1997 44.7 8 2000 44.7 1983 45.1 1972 45.3
482.sphinx3 8 2520 61.9 2513 62.0 2515 62.0 4 1085 71.9 1081 72.1 1080 72.2

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs
  OMP_NUM_THREADS set to number of cores

Platform Notes

Bios settings:
Hardware Prefetcher:          Disabled
Adjacent Cache Line Prefetch: Disabled
Intel SpeedStep Technology:   Disabled

General Notes

All benchmarks compiled in 64-bit mode except 437.leslie3d,
450.soplex, 470.lbm and 482.sphinx3, for peak, are
compiled in 32-bit mode

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks (except as noted below):

 /opt/intel/cc/10.1.008/bin/icc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/10.1.008/bin/icpc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /opt/intel/fc/10.1.008/bin/ifort   -L/opt/intel/fc/10.1.008/lib   -I/opt/intel/fc/10.1.008/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast   -prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -opt-malloc-options=3
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -parallel   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  -fast   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-Intel-ic10.1-FP-intel64-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-Intel-ic10.1-FP-intel64-linux-flags.xml.
