SPEC® CINT2006 Result

Dell Inc.

PowerEdge 2970 (AMD Opteron 2347 HE, 1.9 GHz)

SPECint®_rate2006 = 87.4

SPECint_rate_base2006 = 76.0

CPU2006 license:	55	Test date:	Jun-2008
Test sponsor:	Dell Inc.	Hardware Availability:	Apr-2008
Tested by:	Dell Inc.	Software Availability:	Jun-2008

Hardware
CPU Name:	AMD Opteron 2347 HE
CPU Characteristics:
CPU MHz:	1900
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	2 MB I+D on chip per chip
Other Cache:	None
Memory:	16 GB (4 x 4GB, DDR2-667, CL5)
Disk Subsystem:	1 x 73GB 2.5" SAS 10000 RPM
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp
Compiler:	PGI Server Complete Version 7.2 PathScale Compiler Suite Version 3.1
Auto Parallel:	No
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap 8.0 32-bit Library for Linux

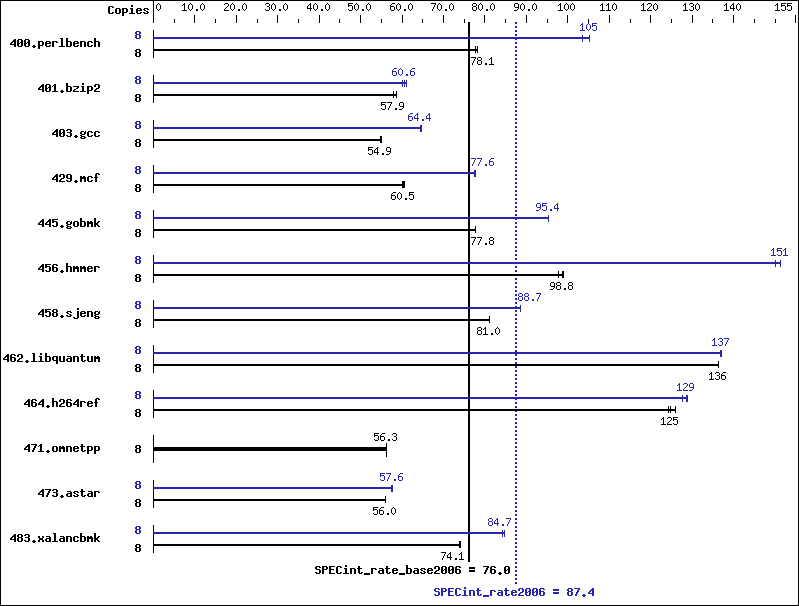

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	8	1005	77.8	999	78.3	1001	78.1	8	755	104	742	105	742	105
401.bzip2	8	1314	58.7	1334	57.9	1334	57.9	8	1283	60.2	1274	60.6	1262	61.2
403.gcc	8	1174	54.9	1171	55.0	1176	54.7	8	994	64.8	999	64.4	1001	64.4
429.mcf	8	1212	60.2	1207	60.5	1207	60.5	8	940	77.6	941	77.6	939	77.7
445.gobmk	8	1079	77.8	1079	77.8	1079	77.8	8	880	95.4	880	95.4	879	95.4
456.hmmer	8	763	97.8	754	98.9	756	98.8	8	497	150	494	151	493	151
458.sjeng	8	1195	81.0	1195	81.0	1194	81.1	8	1092	88.7	1092	88.7	1092	88.6
462.libquantum	8	1215	136	1215	136	1216	136	8	1209	137	1210	137	1211	137
464.h264ref	8	1406	126	1424	124	1420	125	8	1373	129	1376	129	1386	128
471.omnetpp	8	889	56.3	889	56.3	890	56.2	8	889	56.3	889	56.3	890	56.2
473.astar	8	1003	56.0	1003	56.0	1004	55.9	8	976	57.5	975	57.6	976	57.6
483.xalancbmk	8	745	74.1	746	74.0	745	74.1	8	652	84.7	651	84.8	655	84.3

Operating System Notes

 'numactl' was used to bind copies to the cores
 Environment variable PGI_HUGE_PAGES set to 150
 'ulimit -s unlimited' was used to set environment stack size
 mount -t hugetlbfs nodev /mnt/hugepages
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit
 Set vm/nr_hugepages=1200 in /etc/sysctl.conf

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

-fast -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:150 -tp barcelona-64 -Bstatic_pgi

C++ benchmarks:

-fastsse -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:150 --zc_eh -tp barcelona -Bstatic_pgi

Base Other Flags

C benchmarks:

-w -Mipa=jobs:4

C++ benchmarks:

-w -Mipa=jobs:4

Peak Compiler Invocation

C benchmarks (except as noted below):

	pgcc
400.perlbench:	pathcc
403.gcc:	pathcc
445.gobmk:	pathcc

C++ benchmarks (except as noted below):

	pathCC
471.omnetpp:	pgcpp

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -IPA:plimit=20000 -LNO:opt=0 -WOPT:if_conv=0 -CG:local_sched_alg=1
401.bzip2:	-Mpfi(pass 1) -Mpfo(pass 2) -fast -O4 -Msmartalloc=huge:150 -Mnounroll -tp barcelona-64 -Bstatic_pgi
403.gcc:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:Ofast
429.mcf:	-fastsse -Mipa=fast -Mipa=inline:1 -Msmartalloc=huge:150 -tp barcelona -Bstatic_pgi
445.gobmk:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:alias=restrict -LNO:opt=0 -CG:p2align=on
456.hmmer:	-fastsse -Munroll=n:8 -Msmartalloc=huge:150 -Mfprelaxed -Mvect=partial -Msafeptr -Mipa=const -Mipa=ptr -Mipa=arg -Mipa=inline -tp barcelona-64 -Bstatic_pgi
458.sjeng:	-Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline:1(pass 2) -Mipa=noarg(pass 2) -Mpfo(pass 2) -fastsse -Msmartalloc=huge:150 -Mfprelaxed -tp barcelona-64 -Bstatic_pgi
462.libquantum:	-fastsse -Mfprelaxed -Msmartalloc=huge:150 -Munroll=m:8 -Mipa=fast -Mipa=inline -Mipa=noarg -tp barcelona-64 -Bstatic_pgi
464.h264ref:	-Mpfi=indirect(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo=indirect(pass 2) -fastsse -Msmartalloc=huge:150 -Mfprelaxed -tp barcelona-64 -Bstatic_pgi

C++ benchmarks:

471.omnetpp:	basepeak = yes
473.astar:	-march=barcelona -Ofast -TENV:frame_pointer=off -WOPT:if_conv=0 -GRA:optimize_boundary=on -IPA:plimit=525 -m32 -lsmartheap
483.xalancbmk:	-march=barcelona -Ofast -m32 -OPT:unroll_times_max=8 -CG:push_pop_int_saved_regs=off -CG:ptr_load_use=0 -lsmartheap

Peak Other Flags

C benchmarks (except as noted below):

	-w -Mipa=jobs:4(pass 2)
400.perlbench:	No flags used
401.bzip2:	-w
403.gcc:	No flags used
445.gobmk:	No flags used

C++ benchmarks (except as noted below):

	-L/root/work/cpu2006/amd123GH.libs/32
471.omnetpp:	-w -Mipa=jobs:4

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd421GH-flags.20090713.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/amd421GH-flags.20090713.01.xml.
