CPU2006 license: | 20 | Test date: | Jul-2008 |
---|---|---|---|
Test sponsor: | Bull SAS | Hardware Availability: | Jan-2008 |
Tested by: | Bull SAS | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5450 |
CPU Characteristics: | 1333 MHz system bus |
CPU MHz: | 3000 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8x2 GB) FB-DIMM PC2-5300F ECC CL5 |
Disk Subsystem: | 1x73 GB SAS, 10000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE LINUX Enterprise Server 10 SP1 Kernel 2.6.16.46-0.12-smp for x86_64 |
Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
Auto Parallel: | Yes |
File System: | ext2 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.17.50.0.15 SmartHeap library V8.1 |

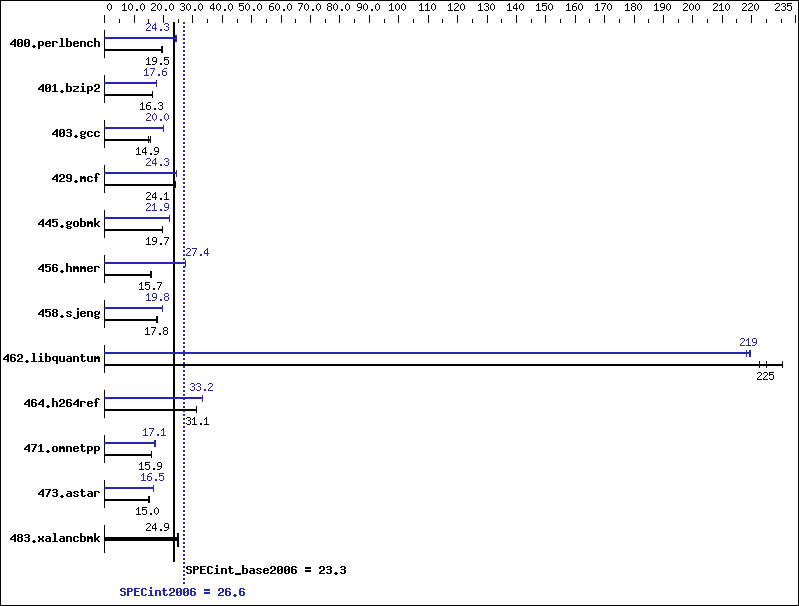

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 503 | 19.4 | 499 | 19.6 | 501 | 19.5 | 404 | 24.2 | 401 | 24.4 | 403 | 24.3 |
401.bzip2 | 591 | 16.3 | 592 | 16.3 | 596 | 16.2 | 548 | 17.6 | 547 | 17.6 | 548 | 17.6 |
403.gcc | 544 | 14.8 | 542 | 14.9 | 514 | 15.7 | 402 | 20.0 | 401 | 20.1 | 402 | 20.0 |
429.mcf | 379 | 24.0 | 379 | 24.1 | 379 | 24.1 | 376 | 24.3 | 375 | 24.3 | 375 | 24.3 |
445.gobmk | 534 | 19.7 | 533 | 19.7 | 533 | 19.7 | 479 | 21.9 | 480 | 21.9 | 480 | 21.9 |
456.hmmer | 593 | 15.7 | 592 | 15.8 | 593 | 15.7 | 340 | 27.4 | 340 | 27.5 | 340 | 27.4 |
458.sjeng | 680 | 17.8 | 680 | 17.8 | 685 | 17.7 | 613 | 19.8 | 612 | 19.8 | 616 | 19.6 |
462.libquantum | 92.1 | 225 | 89.9 | 231 | 93.1 | 223 | 94.4 | 220 | 94.9 | 218 | 94.5 | 219 |
464.h264ref | 708 | 31.3 | 713 | 31.1 | 711 | 31.1 | 667 | 33.2 | 667 | 33.2 | 664 | 33.3 |
471.omnetpp | 393 | 15.9 | 392 | 15.9 | 393 | 15.9 | 365 | 17.1 | 365 | 17.1 | 368 | 17.0 |
473.astar | 466 | 15.1 | 469 | 15.0 | 467 | 15.0 | 425 | 16.5 | 424 | 16.5 | 425 | 16.5 |
483.xalancbmk | 277 | 24.9 | 278 | 24.8 | 277 | 25.0 | 277 | 24.9 | 278 | 24.8 | 277 | 25.0 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to null
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode BIOS settings : Hardware Prefetcher : Enabled Adjacent Cache-Line Prefetch : Enabled
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast -vec-guard-write -parallel -par-runtime-control |
-xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
429.mcf: | -fast -prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive -auto-ilp32 |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
