SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY TX150 S6, Intel Xeon X3370, 3.0 GHz

CPU2006 license: 22 Test date: Aug-2008
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Oct-2008
Tested by: Fujitsu Siemens Computers Software Availability: May-2008

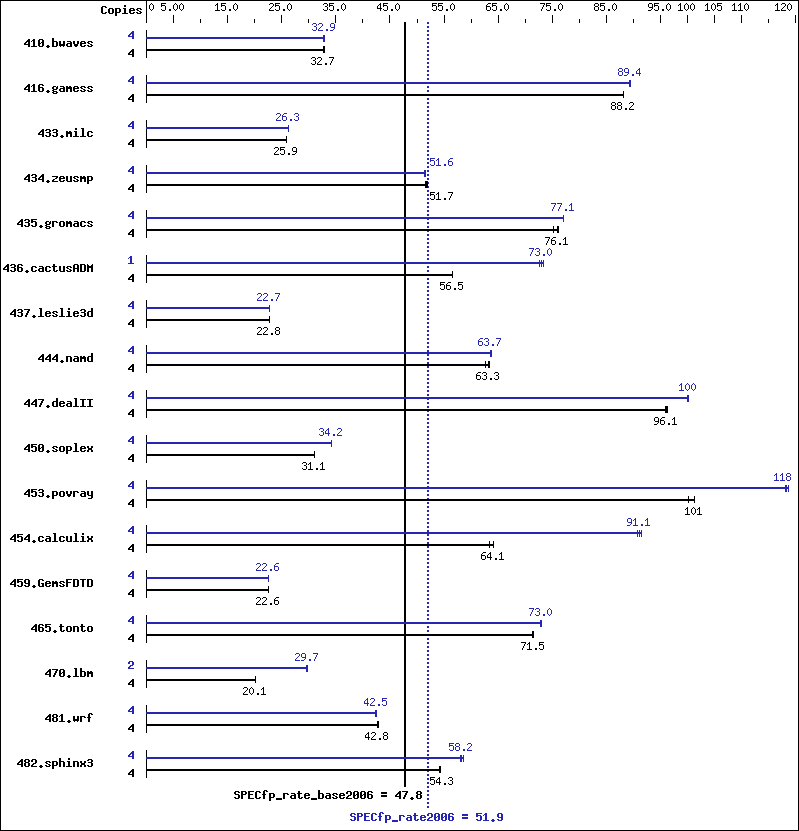

Benchmark results graph
Hardware
CPU Name: Intel Xeon X3370
CPU Characteristics: 1333 MHz system bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB PC2-6400E, 2 rank, CL 6-6-6, ECC)
Disk Subsystem: 1x SATA, 80 GB, 7200 rpm
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64)
with SP2, kernel 2.6.16.60-0.21-smp
Compiler: Intel C++ and Fortran Compiler
for Linux32 and Linux64
Version 10.1 - Build 20070913
Auto Parallel: Yes
File System: ext3
System State: Multi-User Run Level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils-2.17.50.0.5-0.1.x86_64

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1654 32.9 1660 32.7 1665 32.6 4 1653 32.9 1650 32.9 1658 32.8
416.gamess 4 888 88.2 887 88.3 889 88.1 4 877 89.3 876 89.4 876 89.4
433.milc 4 1417 25.9 1416 25.9 1417 25.9 4 1399 26.3 1398 26.3 1399 26.3
434.zeusmp 4 702 51.9 703 51.7 707 51.5 4 705 51.6 706 51.6 709 51.4
435.gromacs 4 375 76.2 380 75.2 376 76.1 4 370 77.1 370 77.1 371 77.0
436.cactusADM 4 846 56.5 844 56.6 846 56.5 1 165 72.6 163 73.4 164 73.0
437.leslie3d 4 1653 22.7 1651 22.8 1652 22.8 4 1656 22.7 1655 22.7 1656 22.7
444.namd 4 513 62.6 506 63.4 507 63.3 4 504 63.6 504 63.7 503 63.8
447.dealII 4 477 96.0 476 96.1 475 96.3 4 457 100   457 100   458 100
450.soplex 4 1073 31.1 1074 31.1 1075 31.0 4 977 34.1 976 34.2 976 34.2
453.povray 4 210 101   212 100   210 101   4 180 118   179 119   180 118
454.calculix 4 521 63.4 514 64.1 515 64.1 4 364 90.7 362 91.1 361 91.5
459.GemsFDTD 4 1879 22.6 1877 22.6 1877 22.6 4 1888 22.5 1882 22.6 1881 22.6
465.tonto 4 552 71.3 550 71.5 551 71.5 4 539 73.1 540 73.0 540 72.9
470.lbm 4 2733 20.1 2733 20.1 2733 20.1 2 925 29.7 925 29.7 927 29.6
481.wrf 4 1044 42.8 1045 42.8 1047 42.7 4 1055 42.4 1050 42.5 1049 42.6
482.sphinx3 4 1434 54.3 1440 54.2 1435 54.3 4 1329 58.7 1340 58.2 1344 58.0

Compiler Invocation Notes

 All binaries were built with 64-bit Intel compiler except:
 450.soplex, 470.lbm and 482.sphinx3 in peak were built with 32-bit Intel compiler.

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 OMP_NUM_THREADS set to number of cores (default)

Platform Notes

 BIOS configuration:
 Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable

General Notes


 For information about Fujitsu Siemens Computers please see:
 http://www.fujitsu-siemens.com

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks (except as noted below):

 /opt/intel/cc/10.1.008/bin/icc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/10.1.008/bin/icpc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /opt/intel/fc/10.1.008/bin/ifort   -L/opt/intel/fc/10.1.008/lib   -I/opt/intel/fc/10.1.008/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast   -prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -opt-malloc-options=3
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -parallel   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  -fast   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/flags-ic101-linux-intel64.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/flags-ic101-linux-intel64.xml.
