SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter LS42 (AMD Opteron 8347 HE)

CPU2006 license: 11 Test date: Jun-2008
Test sponsor: IBM Corporation Hardware Availability: Sep-2008
Tested by: IBM Corporation Software Availability: May-2008

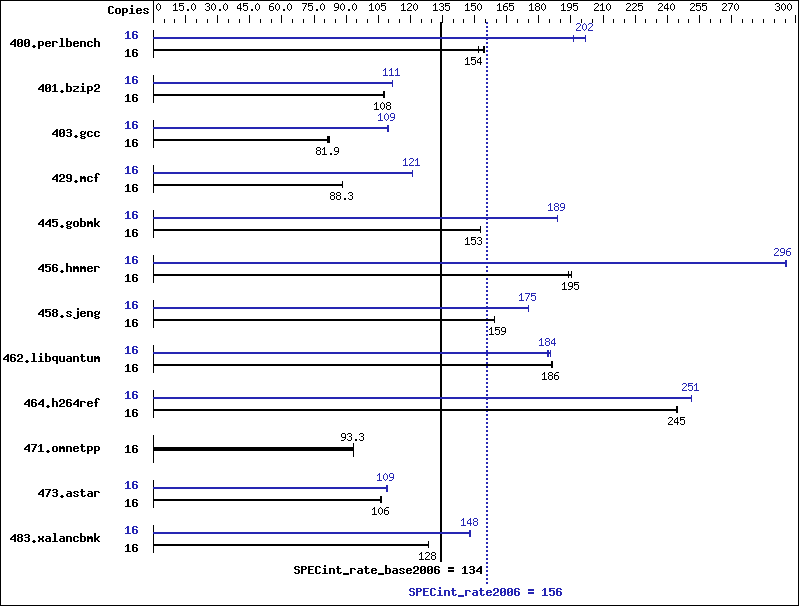

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8347 HE
CPU Characteristics:
CPU MHz: 1900
FPU: Integrated
CPU(s) enabled: 16 cores, 4 chips, 4 cores/chip
CPU(s) orderable: 1,2,3,4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 2 MB I+D on chip per chip
Other Cache: None
Memory: 64 GB (16 x 4 GB DDR2-6400 ECC)
Disk Subsystem: 1 x 73 GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: PGI Server Complete Version 7.2
PathScale Compiler Suite Version 3.1
Auto Parallel: No
File System: ext2
System State: Run level 3 (Full multiuser with network)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap 8.0 32-bit Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 16 1028 152   1013 154   1010 155   16 775 202   796 196   775 202
401.bzip2 16 1433 108   1436 108   1437 107   16 1386 111   1385 111   1383 112
403.gcc 16 1586 81.2 1573 81.9 1565 82.3 16 1181 109   1181 109   1175 110
429.mcf 16 1652 88.3 1649 88.5 1652 88.3 16 1205 121   1206 121   1207 121
445.gobmk 16 1099 153   1098 153   1099 153   16 890 189   890 189   890 189
456.hmmer 16 765 195   764 195   771 194   16 505 296   505 296   506 295
458.sjeng 16 1217 159   1216 159   1215 159   16 1105 175   1106 175   1106 175
462.libquantum 16 1781 186   1785 186   1782 186   16 1790 185   1800 184   1797 184
464.h264ref 16 1447 245   1446 245   1451 244   16 1408 252   1409 251   1409 251
471.omnetpp 16 1072 93.3 1072 93.3 1072 93.3 16 1072 93.3 1072 93.3 1072 93.3
473.astar 16 1057 106   1054 107   1055 106   16 1029 109   1031 109   1032 109
483.xalancbmk 16 859 129   861 128   859 128   16 746 148   746 148   747 148

Operating System Notes

 'numactl' was used to bind copies to the cores
 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 4915200'  was used to set environment locked pages in memory limit
 Environment variable PGI_HUGE_PAGES set to 896
 Set vm/nr_hugepages=14336 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages
 Processor Performance States Disabled in BIOS
 Memory ChipKill Disabled in BIOS

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -fastsse   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   --zc_eh   -tp barcelona   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -w   -Mipa=jobs:4

C++ benchmarks:

 -w   -Mipa=jobs:4

Peak Compiler Invocation

C benchmarks (except as noted below):

 pgcc
400.perlbench:  pathcc
403.gcc:  pathcc
445.gobmk:  pathcc

C++ benchmarks (except as noted below):

 pathCC
471.omnetpp:  pgcpp

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -IPA:plimit=20000   -LNO:opt=0   -WOPT:if_conv=0   -CG:local_sched_alg=1
401.bzip2:  -Mpfi(pass 1)   -Mpfo(pass 2)   -fast   -O4   -Msmartalloc=huge:150   -Mnounroll   -tp barcelona-64   -Bstatic_pgi
403.gcc:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:Ofast
429.mcf:  -fastsse   -Mipa=fast   -Mipa=inline:1   -Msmartalloc=huge:150   -tp barcelona   -Bstatic_pgi
445.gobmk:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=restrict   -LNO:opt=0   -CG:p2align=on
456.hmmer:  -fastsse   -Munroll=n:8   -Msmartalloc=huge:150   -Mfprelaxed   -Mvect=partial   -Msafeptr   -Mipa=const   -Mipa=ptr   -Mipa=arg   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
458.sjeng:  -Mpfi(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline:1(pass 2)   -Mipa=noarg(pass 2)   -Mpfo(pass 2)   -fastsse   -Msmartalloc=huge:150   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
462.libquantum:  -fastsse   -Mfprelaxed   -Msmartalloc=huge:150   -Munroll=m:8   -Mipa=fast   -Mipa=inline   -Mipa=noarg   -tp barcelona-64   -Bstatic_pgi
464.h264ref:  -Mpfi=indirect(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo=indirect(pass 2)   -fastsse   -Msmartalloc=huge:150   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  -march=barcelona   -Ofast   -TENV:frame_pointer=off   -WOPT:if_conv=0   -GRA:optimize_boundary=on   -IPA:plimit=525   -m32   -lsmartheap
483.xalancbmk:  -march=barcelona   -Ofast   -m32   -OPT:unroll_times_max=8   -CG:push_pop_int_saved_regs=off   -CG:ptr_load_use=0   -lsmartheap

Peak Other Flags

C benchmarks (except as noted below):

 -w   -Mipa=jobs:4(pass 2)
400.perlbench:  No flags used
401.bzip2:  -w
403.gcc:  No flags used
445.gobmk:  No flags used

C++ benchmarks (except as noted below):

 -L/root/work/cpu2006/amd123GH.libs/32
471.omnetpp:  -w   -Mipa=jobs:4

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090714.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090714.01.xml.
