CPU2006 license: | 11 | Test date: | Jul-2008 |
---|---|---|---|
Test sponsor: | IBM Corporation | Hardware Availability: | Sep-2008 |
Tested by: | IBM Corporation | Software Availability: | May-2008 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 2347 HE |
CPU Characteristics: | |
CPU MHz: | 1900 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per core |
L3 Cache: | 2 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 32 GB (8 x 4 GB DDR2-6400 ECC) |
Disk Subsystem: | 1 x 73 GB SAS, 10000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
Compiler: | PGI Server Complete Version 7.2 PathScale Compiler Suite Version 3.1 |
Auto Parallel: | No |
File System: | ext2 |
System State: | Run level 3 (Full multiuser with network) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

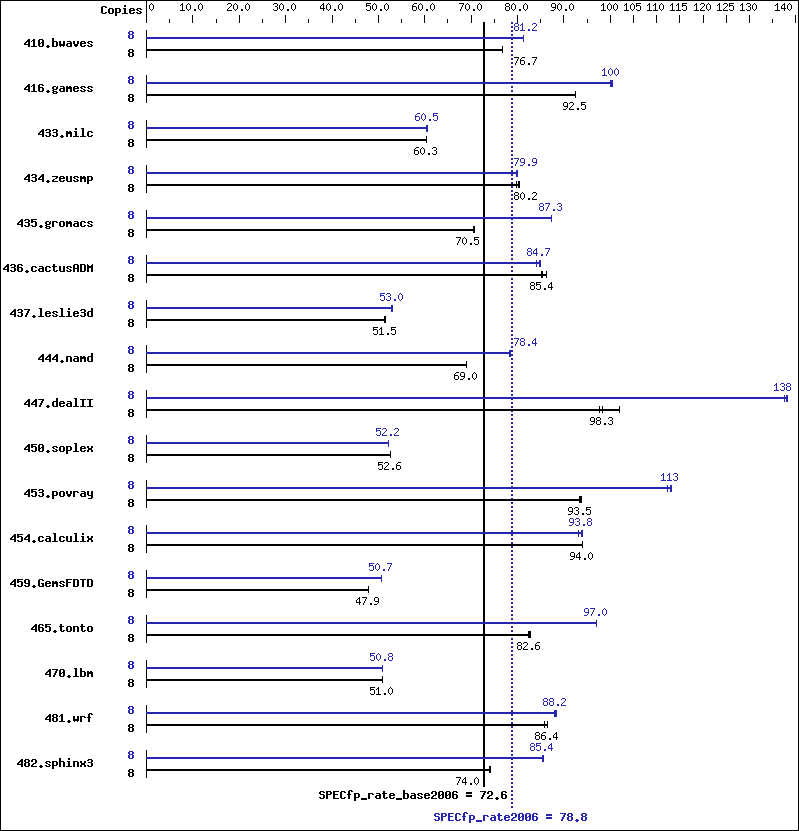

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 1418 | 76.7 | 1418 | 76.7 | 1415 | 76.8 | 8 | 1338 | 81.3 | 1339 | 81.2 | 1339 | 81.2 |
416.gamess | 8 | 1693 | 92.5 | 1692 | 92.6 | 1694 | 92.4 | 8 | 1566 | 100 | 1561 | 100 | 1560 | 100 |
433.milc | 8 | 1218 | 60.3 | 1215 | 60.4 | 1217 | 60.3 | 8 | 1214 | 60.5 | 1216 | 60.4 | 1213 | 60.6 |
434.zeusmp | 8 | 905 | 80.4 | 913 | 79.8 | 907 | 80.2 | 8 | 913 | 79.7 | 911 | 79.9 | 911 | 79.9 |
435.gromacs | 8 | 807 | 70.8 | 810 | 70.5 | 810 | 70.5 | 8 | 654 | 87.3 | 654 | 87.3 | 654 | 87.3 |
436.cactusADM | 8 | 1108 | 86.2 | 1122 | 85.2 | 1120 | 85.4 | 8 | 1128 | 84.7 | 1125 | 85.0 | 1137 | 84.0 |
437.leslie3d | 8 | 1460 | 51.5 | 1460 | 51.5 | 1463 | 51.4 | 8 | 1415 | 53.1 | 1418 | 53.0 | 1421 | 52.9 |
444.namd | 8 | 931 | 68.9 | 929 | 69.0 | 930 | 69.0 | 8 | 818 | 78.4 | 817 | 78.5 | 820 | 78.2 |
447.dealII | 8 | 931 | 98.3 | 936 | 97.7 | 898 | 102 | 8 | 663 | 138 | 662 | 138 | 665 | 138 |
450.soplex | 8 | 1269 | 52.6 | 1268 | 52.6 | 1271 | 52.5 | 8 | 1277 | 52.2 | 1278 | 52.2 | 1277 | 52.2 |
453.povray | 8 | 455 | 93.5 | 456 | 93.4 | 454 | 93.7 | 8 | 377 | 113 | 378 | 112 | 376 | 113 |
454.calculix | 8 | 702 | 94.0 | 702 | 94.0 | 703 | 93.9 | 8 | 704 | 93.8 | 708 | 93.2 | 703 | 93.9 |
459.GemsFDTD | 8 | 1774 | 47.8 | 1773 | 47.9 | 1771 | 47.9 | 8 | 1674 | 50.7 | 1674 | 50.7 | 1675 | 50.7 |
465.tonto | 8 | 955 | 82.4 | 951 | 82.8 | 954 | 82.6 | 8 | 811 | 97.1 | 812 | 97.0 | 811 | 97.0 |
470.lbm | 8 | 2157 | 51.0 | 2161 | 50.9 | 2156 | 51.0 | 8 | 2162 | 50.8 | 2162 | 50.8 | 2162 | 50.8 |
481.wrf | 8 | 1034 | 86.4 | 1041 | 85.9 | 1033 | 86.5 | 8 | 1011 | 88.4 | 1013 | 88.2 | 1015 | 88.0 |
482.sphinx3 | 8 | 2106 | 74.0 | 2103 | 74.1 | 2106 | 74.0 | 8 | 1827 | 85.3 | 1825 | 85.4 | 1821 | 85.6 |
'numactl' was used to bind copies to the cores 'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2457600' was used to set environment locked pages in memory limit Environment variable PGI_HUGE_PAGES set to 896 Set vm/nr_hugepages=7168 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages Processor Performance States Disabled in BIOS Memory ChipKill Disabled in BIOS
pgcc |
pgcpp |
pgf95 |
pgcc pgf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -Mnomain |
436.cactusADM: | -DSPEC_CPU_LP64 -Mnomain |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -Mnomain |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-fast -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:150 -tp barcelona-64 -Bstatic_pgi |
-fast -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:150 --zc_eh -tp barcelona-64 -Bstatic_pgi |
-fast -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:150 -tp barcelona-64 -Bstatic_pgi |
-fast -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:150 -tp barcelona-64 -Bstatic_pgi |
-w -Mipa=jobs:4 |
-w -Mipa=jobs:4 |
-w -Mipa=jobs:4 |
-w -Mipa=jobs:4 |
pathcc | |
433.milc: | pgcc |
pathCC | |
444.namd: | pgcpp |
pathf95 | |
410.bwaves: | pgf95 |
434.zeusmp: | pgf95 |
pgcc pgf95 | |
436.cactusADM: | pathcc pathf95 |
481.wrf: | pathcc pathf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -Mnomain |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -Mnomain |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore |
482.sphinx3: | -DSPEC_CPU_LP64 |
433.milc: | -fastsse -Msmartalloc=huge:150 -Msafeptr -Mfprelaxed -Mipa=inline -Mipa=arg -Mipa=const -Mipa=ptr -Mipa=shape -tp barcelona-64 -Bstatic_pgi |
470.lbm: | -march=barcelona -Ofast -m3dnow |
482.sphinx3: | -march=barcelona -Ofast |
444.namd: | -Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo(pass 2) -fast -Mfprelaxed -Msmartalloc=huge:150 --zc_eh -Mnodepchk -Munroll=n:4 -Munroll=m:8 -tp barcelona-64 -Bstatic_pgi |
447.dealII: | -march=barcelona -Ofast -static -INLINE:aggressive=on -OPT:malloc_alg=1 -m32 -fno-exceptions |
450.soplex: | -march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -TENV:frame_pointer=off -LNO:prefetch=1 |
453.povray: | -march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -CG:load_exe=0 |
410.bwaves: | -Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo(pass 2) -fastsse -Mfprelaxed -Msmartalloc -Mprefetch=distance:12 -Mprefetch=nta -tp barcelona-64 -Bstatic_pgi |
416.gamess: | -march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256 |
434.zeusmp: | -fastsse -Mfprelaxed -Msmartalloc=huge:150 -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi |
437.leslie3d: | -march=barcelona -Ofast -m3dnow -OPT:unroll_size=256 -CG:load_exe=0 -OPT:malloc_alg=1 |
459.GemsFDTD: | -march=barcelona -Ofast -LNO:fission=2 -LNO:simd=2 -OPT:malloc_alg=1 |
465.tonto: | -march=barcelona -Ofast -OPT:malloc_alg=1 -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525 |
433.milc: | -w -Mipa=jobs:4 |
444.namd: | -w -Mipa=jobs:4(pass 2) |
410.bwaves: | -w -Mipa=jobs:4(pass 2) |
434.zeusmp: | -w -Mipa=jobs:4 |
435.gromacs: | -w -Mipa=jobs:4 |
454.calculix: | -w -Mipa=jobs:4 |
