SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge M600 (Intel Xeon L5240, 3.00GHz)

CPU2006 license: 55 Test date: Aug-2008
Test sponsor: Dell Inc. Hardware Availability: May-2008
Tested by: Dell Inc. Software Availability: May-2008

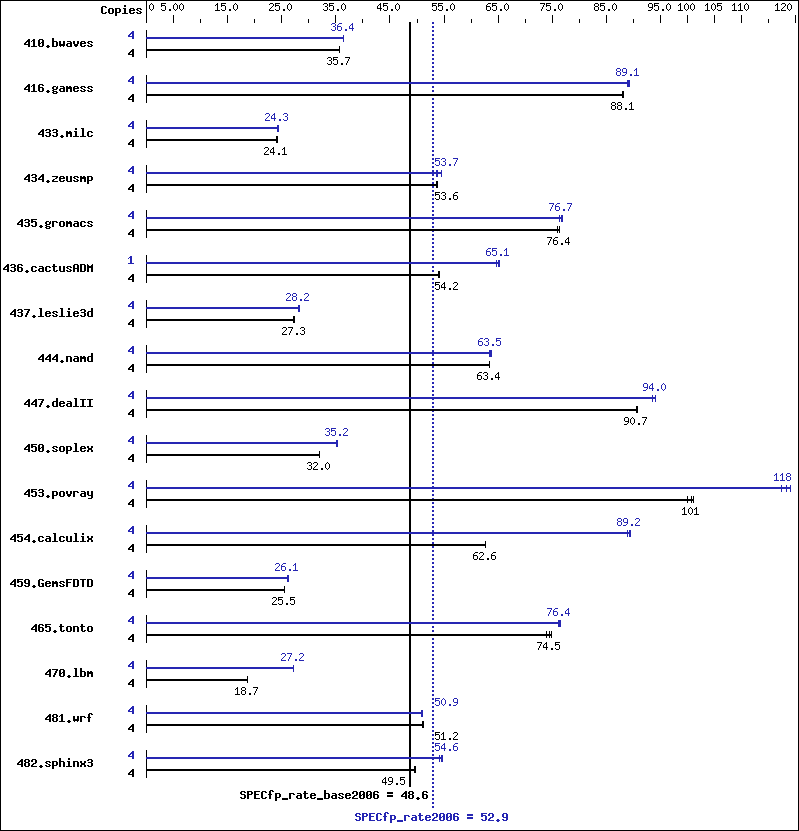

Benchmark results graph
Hardware
CPU Name: Intel Xeon L5240
CPU Characteristics:
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 16 GB (4x4 GB 667 MHz ECC CL5 FB-DIMM)
Disk Subsystem: 1 x 80 GB 5400 RPM SATA
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP2,
Kernel 2.6.16-60.0.21-smp
Compiler: Intel C++ and Fortran Compiler 10.1 for Linux
Build 20080312 Package ID: l_cc_p_10.1.015,
l_fc_p_10.1.015
Auto Parallel: Yes
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Binutils 2.18.50.0.7.20080502

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1528 35.6 1525 35.7 1523 35.7 4 1493 36.4 1495 36.4 1493 36.4
416.gamess 4 889 88.1 889 88.1 889 88.1 4 881 88.9 877 89.3 879 89.1
433.milc 4 1531 24.0 1523 24.1 1517 24.2 4 1510 24.3 1511 24.3 1514 24.3
434.zeusmp 4 680 53.6 678 53.7 679 53.6 4 679 53.6 678 53.7 667 54.6
435.gromacs 4 374 76.4 374 76.4 376 75.9 4 373 76.7 374 76.3 371 76.9
436.cactusADM 4 887 53.9 882 54.2 882 54.2 1 184 65.1 183 65.2 185 64.7
437.leslie3d 4 1381 27.2 1378 27.3 1377 27.3 4 1336 28.1 1335 28.2 1333 28.2
444.namd 4 506 63.4 506 63.4 506 63.4 4 503 63.8 505 63.5 505 63.5
447.dealII 4 505 90.6 504 90.8 505 90.7 4 489 93.6 487 94.0 486 94.1
450.soplex 4 1043 32.0 1044 32.0 1044 32.0 4 947 35.2 951 35.1 946 35.3
453.povray 4 213 100   211 101   211 101   4 181 117   180 118   179 119
454.calculix 4 527 62.6 527 62.6 527 62.6 4 370 89.2 371 88.9 369 89.5
459.GemsFDTD 4 1663 25.5 1658 25.6 1663 25.5 4 1625 26.1 1622 26.2 1623 26.1
465.tonto 4 526 74.8 532 74.0 528 74.5 4 516 76.2 515 76.4 514 76.5
470.lbm 4 2948 18.6 2945 18.7 2945 18.7 4 2021 27.2 2017 27.2 2017 27.3
481.wrf 4 872 51.2 875 51.0 874 51.2 4 877 50.9 878 50.9 879 50.9
482.sphinx3 4 1577 49.4 1571 49.6 1574 49.5 4 1428 54.6 1441 54.1 1427 54.6

Submit Notes

The config file option 'submit' was used.

Operating System Notes

 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run

Platform Notes

 BIOS Settings:
 Adjacent Cache Line Prefetch = Disabled (default Enabled)
 Hardware Prefetcher = Disabled (default Enabled)

General Notes

 All benchmarks compiled in 64-bit mode except 437.leslie3d, 450.soplex,
 470.lbm and 482.sphinx3, at peak, are compiled in 32-bit mode
 taskset was used to bind processes to cores except
 for 436.cactusADM peak
 OMP_NUM_THREADS set to number of processors
 KMP_AFFINITY set to "physical,0"
 KMP_STACKSIZE set to 64M

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks (except as noted below):

 /opt/intel/cc/10.1.015/bin/icc   -L/opt/intel/cc/10.1.015/lib   -I/opt/intel/cc/10.1.015/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/10.1.015/bin/icpc   -L/opt/intel/cc/10.1.015/lib   -I/opt/intel/cc/10.1.015/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /opt/intel/fc/10.1.015/bin/ifort   -L/opt/intel/fc/10.1.015/lib   -I/opt/intel/fc/10.1.015/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast   -prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -opt-malloc-options=3
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -parallel   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  -fast   -auto-ilp32

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10.1-fp-linux64-revD.20090713.html,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.20090713.07.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic10.1-fp-linux64-revD.20090713.xml,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.20090713.07.xml.
