CPU2006 license: | 55 | Test date: | Sep-2008 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Sep-2008 |
Tested by: | Dell Inc. | Software Availability: | Nov-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5460 |
CPU Characteristics: | |
CPU MHz: | 3166 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8 x 2 GB, DDR2-667 MHz, CL5, Reg, Dual Rank) |
Disk Subsystem: | 2 x 73 GB GB SAS, 15000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16-60.0.21-smp |
Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

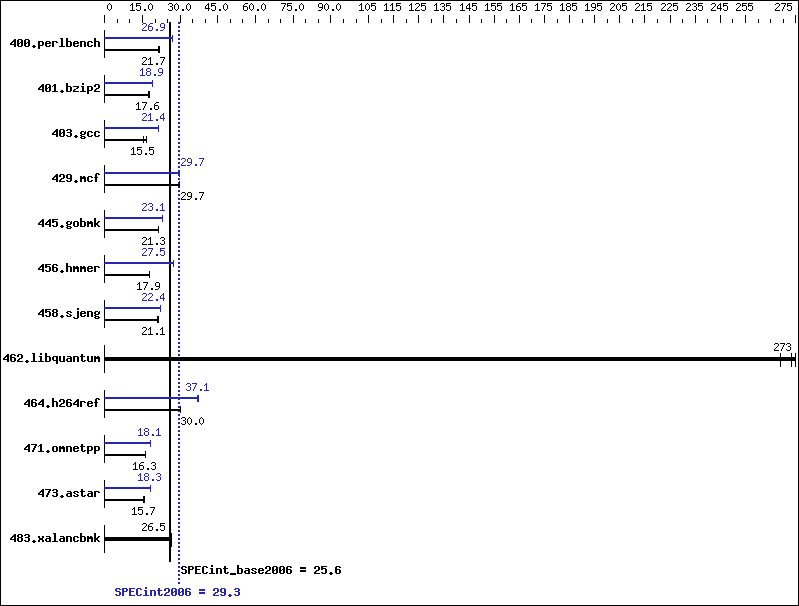

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 453 | 21.6 | 451 | 21.7 | 450 | 21.7 | 363 | 27.0 | 363 | 26.9 | 364 | 26.8 |
401.bzip2 | 549 | 17.6 | 548 | 17.6 | 548 | 17.6 | 510 | 18.9 | 510 | 18.9 | 510 | 18.9 |
403.gcc | 490 | 16.4 | 518 | 15.5 | 520 | 15.5 | 375 | 21.5 | 375 | 21.4 | 376 | 21.4 |
429.mcf | 308 | 29.7 | 307 | 29.7 | 307 | 29.7 | 307 | 29.7 | 307 | 29.7 | 307 | 29.7 |
445.gobmk | 492 | 21.3 | 492 | 21.3 | 492 | 21.3 | 454 | 23.1 | 453 | 23.1 | 454 | 23.1 |
456.hmmer | 522 | 17.9 | 522 | 17.9 | 522 | 17.9 | 340 | 27.4 | 340 | 27.5 | 340 | 27.5 |
458.sjeng | 573 | 21.1 | 574 | 21.1 | 569 | 21.3 | 541 | 22.4 | 542 | 22.3 | 541 | 22.4 |
462.libquantum | 75.4 | 275 | 77.1 | 269 | 75.8 | 273 | 75.4 | 275 | 77.1 | 269 | 75.8 | 273 |
464.h264ref | 737 | 30.0 | 737 | 30.0 | 734 | 30.2 | 596 | 37.1 | 597 | 37.1 | 596 | 37.1 |
471.omnetpp | 382 | 16.3 | 384 | 16.3 | 383 | 16.3 | 345 | 18.1 | 346 | 18.1 | 346 | 18.1 |
473.astar | 450 | 15.6 | 448 | 15.7 | 448 | 15.7 | 384 | 18.3 | 384 | 18.3 | 384 | 18.3 |
483.xalancbmk | 260 | 26.5 | 261 | 26.5 | 261 | 26.4 | 260 | 26.5 | 261 | 26.5 | 261 | 26.4 |
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0"
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.1 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch -ansi-alias |
403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
429.mcf: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
462.libquantum: | basepeak = yes |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
