SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision R5400 (Intel X5270, 3.50 GHz)

SPECfp®2006 = 21.2

CPU2006 license: 55 Test date: Sep-2008
Test sponsor: Dell Inc. Hardware Availability: Oct-2008
Tested by: Dell Inc. Software Availability: Mar-2008

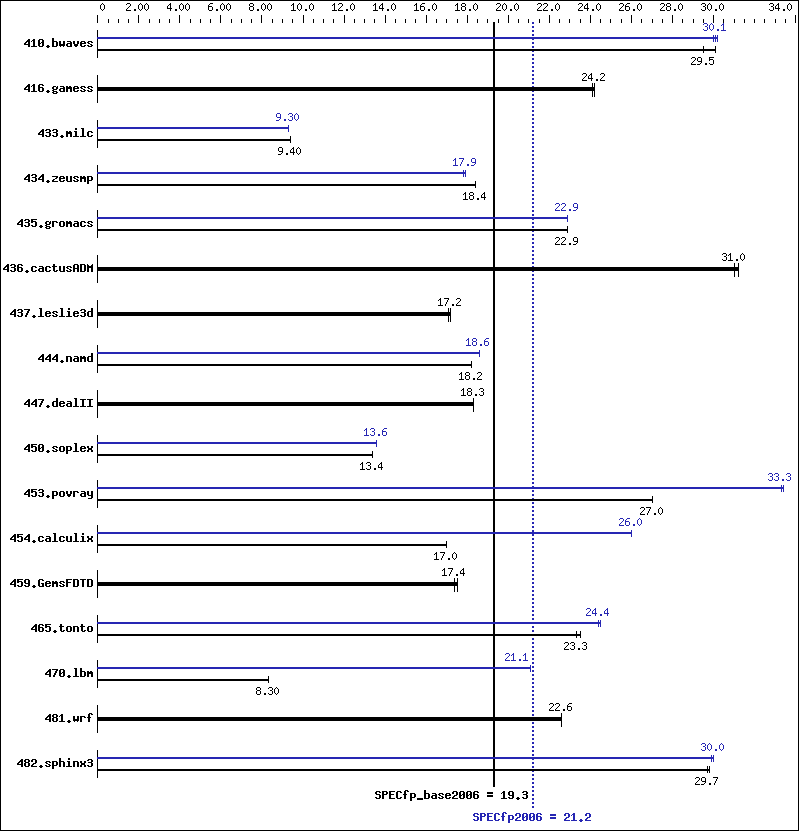

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5270
CPU Characteristics: 1333 MHz Bus Speed
CPU MHz: 3500
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 16 GB (4x4 GB 667 MHz CL5 FB-DIMM)
Disk Subsystem: 1 x 320 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Business SP1 (64-bit)
Compiler: Intel C++ Compiler for Intel 64, Version 10.1
Build 20080312 Package ID: w_cc_p_10.1.021
Intel Visual Fortran Compiler for Intel 64,
Version 10.1
Build 20080312 Package ID: w_fc_p_10.1.021
Microsoft Visual Studio 2005 SP1
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1 for x64

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 451 30.1  461 29.5  460 29.5  449 30.2  452 30.1  453 30.0
416.gamess 811 24.2  811 24.2  811 24.1  811 24.2  811 24.2  811 24.1
433.milc 975 9.40 977 9.40 976 9.40 986 9.30 985 9.30 986 9.30
434.zeusmp 494 18.4  494 18.4  494 18.4  510 17.9  510 17.9  510 17.8
435.gromacs 312 22.9  312 22.9  311 22.9  312 22.9  312 22.9  312 22.9
436.cactusADM 383 31.2  385 31.0  385 31.0  383 31.2  385 31.0  385 31.0
437.leslie3d 547 17.2  548 17.2  549 17.1  547 17.2  548 17.2  549 17.1
444.namd 441 18.2  441 18.2  441 18.2  431 18.6  431 18.6  432 18.6
447.dealII 627 18.3  627 18.3  627 18.3  627 18.3  627 18.3  627 18.3
450.soplex 620 13.4  621 13.4  621 13.4  612 13.6  612 13.6  613 13.6
453.povray 197 27.0  197 27.0  197 27.0  159 33.4  160 33.3  160 33.3
454.calculix 485 17.0  485 17.0  485 17.0  317 26.0  317 26.0  317 26.0
459.GemsFDTD 609 17.4  607 17.5  609 17.4  609 17.4  607 17.5  609 17.4
465.tonto 423 23.3  419 23.5  423 23.3  403 24.4  403 24.4  402 24.5
470.lbm 1651 8.30 1651 8.30 1650 8.30 652 21.1  651 21.1  651 21.1
481.wrf 494 22.6  495 22.6  495 22.6  494 22.6  495 22.6  495 22.6
482.sphinx3 656 29.7  655 29.8  656 29.7  649 30.0  650 30.0  651 29.9

General Notes

 Binaries were built on Windows Vista Ultimate (64-bit)

 BIOS Settings
   Adjacent Cache Line Prefetch set to ON

Base Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qauto-ilp32   -Qparallel   /F512000000   libguide40.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qauto-ilp32   -Qparallel   -Qcxx_features   /F512000000   shlw64m.lib   libguide40.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   -Qparallel   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   -Qauto-ilp32   -Qparallel   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Oa   /F512000000   libguide40.lib    -link /FORCE:MULTIPLE
470.lbm:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F512000000   libguide40.lib    -link /FORCE:MULTIPLE
482.sphinx3:  -fast   -Qauto-ilp32   -Qunroll2   /F512000000   libguide40.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Oa   -Qcxx_features   /F512000000   shlw64m.lib   libguide40.lib    -link /FORCE:MULTIPLE
447.dealII:  basepeak = yes
450.soplex:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qparallel   -Qcxx_features   /F512000000   shlw64m.lib   libguide40.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll4   -Qansi-alias   -Qcxx_features   /F512000000   shlw64m.lib   libguide40.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -fast   -Qauto-ilp32   -Qparallel   -Qprefetch   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
416.gamess:  basepeak = yes
434.zeusmp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll4   -Qauto   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Oa   -Qprefetch   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
436.cactusADM:  basepeak = yes
454.calculix:  -fast   -Qauto-ilp32   -Qunroll-aggressive   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.ic10.1.windows.flags.20090713.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.ic10.1.windows.flags.20090713.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Tue Jul 22 22:17:29 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 14 October 2008.
