SPEC® CFP2006 Result

Dell Inc.

PowerEdge 2950 III (Intel Xeon X5260, 3.33 GHz)

SPECfp®_rate2006 = 59.6

SPECfp_rate_base2006 = 56.0

CPU2006 license:	55	Test date:	Sep-2008
Test sponsor:	Dell Inc.	Hardware Availability:	Sep-2008
Tested by:	Dell Inc.	Software Availability:	Nov-2008

Hardware
CPU Name:	Intel Xeon X5260
CPU Characteristics:
CPU MHz:	3333
FPU:	Integrated
CPU(s) enabled:	4 cores, 2 chips, 2 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	6 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (4x4GB 667 MHz ECC CL5 FB-DIMM)
Disk Subsystem:	1 x 73 GB 15000 RPM SAS, 1 x 73 GB 10000 RPM SAS
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16-60.0.21-smp
Compiler:	Intel C++ and Fortran Compiler 11.0 for Linux Build 20080730 Package ID: l_cc_b_11.0.042, l_fc_b_11.0.042
Auto Parallel:	Yes
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	Binutils 2.18.50.0.7.20080502

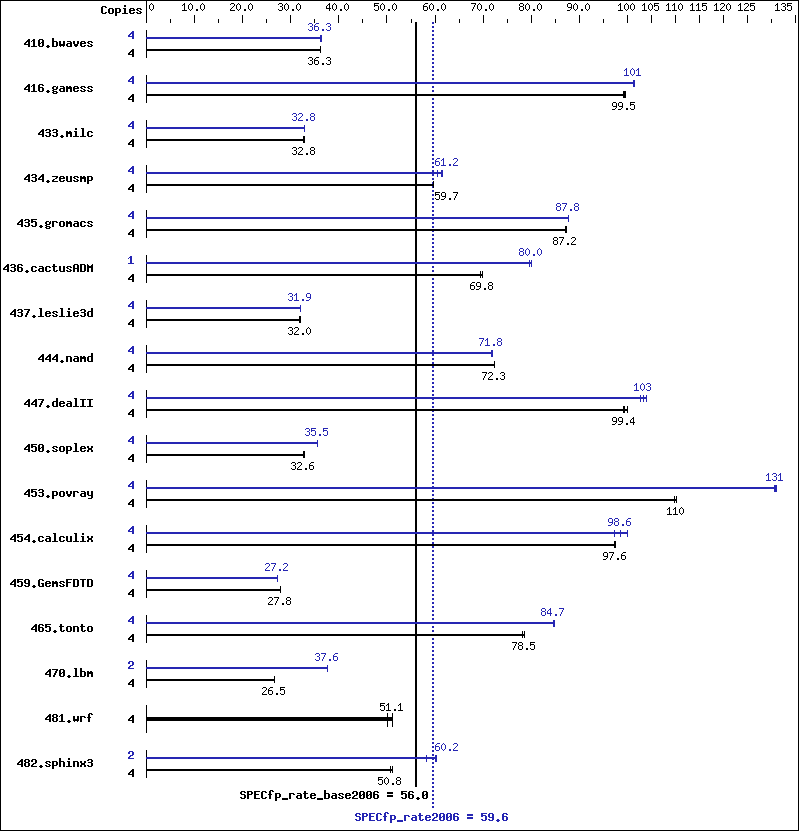

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	4	1507	36.1	1499	36.3	1499	36.3	4	1498	36.3	1499	36.3	1499	36.3
416.gamess	4	789	99.2	787	99.5	787	99.5	4	773	101	772	101	773	101
433.milc	4	1121	32.7	1120	32.8	1121	32.8	4	1119	32.8	1119	32.8	1119	32.8
434.zeusmp	4	610	59.7	610	59.7	610	59.7	4	592	61.5	594	61.2	601	60.6
435.gromacs	4	327	87.3	328	87.0	328	87.2	4	325	87.8	325	87.8	325	87.8
436.cactusADM	4	684	69.8	688	69.4	684	69.9	1	149	80.1	149	80.0	150	79.6
437.leslie3d	4	1182	31.8	1175	32.0	1175	32.0	4	1177	31.9	1177	31.9	1174	32.0
444.namd	4	443	72.4	444	72.3	444	72.3	4	447	71.7	446	71.9	447	71.8
447.dealII	4	462	99.1	461	99.4	457	100	4	440	104	443	103	445	103
450.soplex	4	1024	32.6	1017	32.8	1022	32.6	4	940	35.5	936	35.6	939	35.5
453.povray	4	193	110	193	110	194	110	4	163	131	162	131	163	131
454.calculix	4	339	97.3	338	97.6	338	97.6	4	339	97.4	330	100	335	98.6
459.GemsFDTD	4	1528	27.8	1528	27.8	1527	27.8	4	1559	27.2	1561	27.2	1563	27.2
465.tonto	4	501	78.6	503	78.2	501	78.5	4	464	84.9	466	84.6	465	84.7
470.lbm	4	2073	26.5	2071	26.5	2071	26.5	2	729	37.7	731	37.6	731	37.6
481.wrf	4	874	51.1	875	51.1	893	50.0	4	874	51.1	875	51.1	893	50.0
482.sphinx3	4	1534	50.8	1534	50.8	1525	51.1	2	648	60.2	646	60.4	668	58.3

Submit Notes

The config file option 'submit' was used.

Operating System Notes

 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run

Platform Notes

 BIOS Settings:

General Notes

 All benchmarks compiled in 64-bit mode except 437.leslie3d, 450.soplex
 and 482.sphinx3, at peak, are compiled in 32-bit mode
 taskset was used to bind processes to cores except
 for 436.cactusADM peak
 OMP_NUM_THREADS set to number of processors
 KMP_AFFINITY set to "physical,0"
 KMP_STACKSIZE set to 64M

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks (except as noted below):

	icc
482.sphinx3:	/opt/intel/Compiler/11.0/042/bin/ia32/icc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include

C++ benchmarks (except as noted below):

	icpc
450.soplex:	/opt/intel/Compiler/11.0/042/bin/ia32/icpc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include

Fortran benchmarks (except as noted below):

	ifort
437.leslie3d:	/opt/intel/Compiler/11.0/042/bin/ia32/ifort -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias
470.lbm:	-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32
482.sphinx3:	-xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2

C++ benchmarks:

444.namd:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias -auto-ilp32
447.dealII:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -scalar-rep-
450.soplex:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3
453.povray:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -ansi-alias

Fortran benchmarks:

410.bwaves:	-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch
416.gamess:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -ansi-alias -scalar-rep-
434.zeusmp:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static
437.leslie3d:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -opt-prefetch
459.GemsFDTD:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -opt-prefetch
465.tonto:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -auto

Benchmarks using both Fortran and C:

435.gromacs:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32
436.cactusADM:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -opt-prefetch -parallel -auto-ilp32
454.calculix:	-xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32
481.wrf:	basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revA.20090713.05.html,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.20090713.02.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revA.20090713.05.xml,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.20090713.02.xml.
