SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

CELSIUS M460, Intel Core 2 Duo E8600 processor

CPU2006 license: 22 Test date: Oct-2008
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Sep-2008
Tested by: Fujitsu Siemens Computers Software Availability: Feb-2008

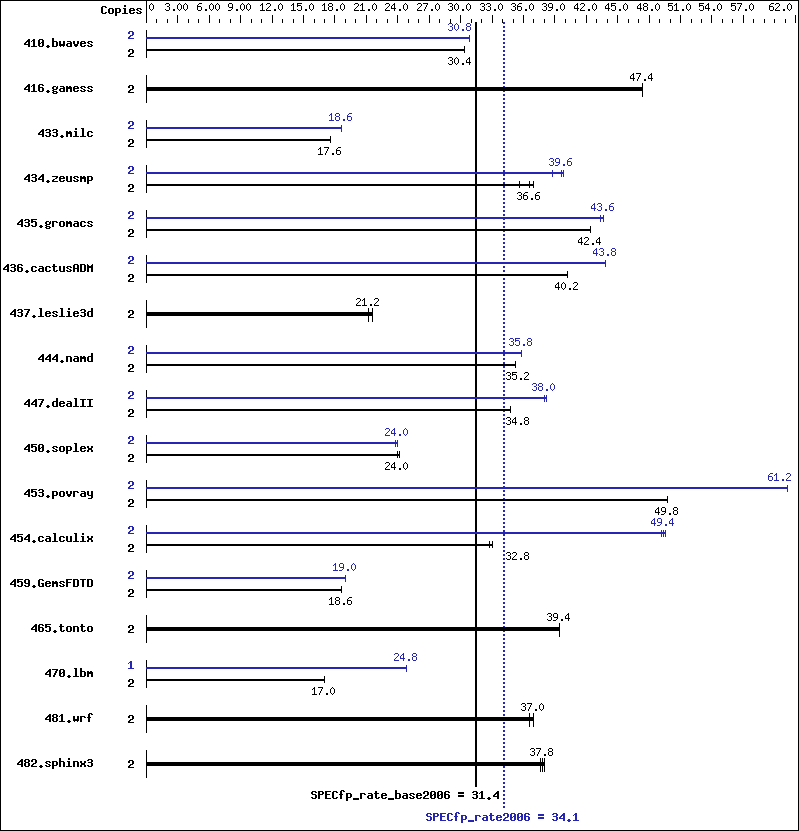

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Duo E8600
CPU Characteristics:
CPU MHz: 3333
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 4 GB (4x1 GB PC2-6400 CL6 SDRAM)
Disk Subsystem: 1 x 400 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate (x64)
Compiler: Intel C++ Compiler
for applications running on Intel 64,
Version 10.1, Build 20080212
Intel Visual Fortran Compiler
for applications running on Intel 64,
Version 10.1, Build 20080212
Microsoft Visual Studio 2005 with SP1
(for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: SmartHeap Library Version 8.0 (64 bit) from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 895 30.4 892 30.4 891 30.4 2 883 30.8 882 30.8 883 30.8
416.gamess 2 826 47.4 826 47.4 826 47.4 2 826 47.4 826 47.4 826 47.4
433.milc 2 1048 17.6 1047 17.6 1048 17.6 2 987 18.6 987 18.6 986 18.6
434.zeusmp 2 498 36.6 491 37.0 512 35.6 2 459 39.6 458 39.8 470 38.8
435.gromacs 2 336 42.4 336 42.4 336 42.4 2 329 43.4 328 43.6 328 43.6
436.cactusADM 2 594 40.2 594 40.2 594 40.2 2 545 43.8 545 43.8 545 43.8
437.leslie3d 2 874 21.6 887 21.2 885 21.2 2 874 21.6 887 21.2 885 21.2
444.namd 2 455 35.2 455 35.2 455 35.2 2 449 35.8 448 35.8 448 35.8
447.dealII 2 657 34.8 656 34.8 656 34.8 2 600 38.2 601 38.0 603 38.0
450.soplex 2 697 24.0 697 24.0 690 24.2 2 701 23.8 693 24.0 695 24.0
453.povray 2 213 49.8 213 49.8 213 49.8 2 174 61.2 174 61.2 174 61.2
454.calculix 2 504 32.8 504 32.8 501 33.0 2 336 49.2 334 49.4 332 49.6
459.GemsFDTD 2 1145 18.6 1144 18.6 1144 18.6 2 1117 19.0 1115 19.0 1116 19.0
465.tonto 2 499 39.4 499 39.4 499 39.4 2 499 39.4 499 39.4 499 39.4
470.lbm 2 1607 17.0 1608 17.0 1609 17.0 1 554 24.8 554 24.8 554 24.8
481.wrf 2 610 36.6 605 37.0 605 37.0 2 610 36.6 605 37.0 605 37.0
482.sphinx3 2 1035 37.6 1030 37.8 1028 38.0 2 1035 37.6 1030 37.8 1028 38.0

Operating System Notes

 Screen Saver was disabled
 Power scheme was set to Always On, modified to Turnoff monitor: Never.

Platform Notes

BIOS default settings have been used.

General Notes

For information about Fujitsu Siemens Computers please see:
http://www.fujitsu-siemens.com

Base Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc8   -Qc99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   -assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   -TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -F950000000   shlW64M.lib

C++ benchmarks:

 -fast   -Qcxx-features   -F950000000   shlW64M.lib

Fortran benchmarks:

 -fast   -F950000000

Benchmarks using both Fortran and C:

 -fast   -F950000000

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc8   -Qc99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000
470.lbm:  -fast   -Qunroll2   -Qscalar-rep-   -Qprefetch   -F950000000
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -fast   -Oa   -F950000000   shlW64M.lib
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx-features   -F950000000
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000
416.gamess:  basepeak = yes
434.zeusmp:  -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   -F950000000
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -fast   -Qunroll2   -Ob0   -Qprefetch   -F950000000
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000
436.cactusADM:  -fast   -Qunroll2   -Qprefetch   -F950000000
454.calculix:  -fast   -Qunroll-aggressive   -F950000000
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090713.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090713.00.xml.
