CPU2006 license: | 55 | Test date: | Sep-2008 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Nov-2007 |
Tested by: | Dell Inc. | Software Availability: | Nov-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5440 |
CPU Characteristics: | |
CPU MHz: | 2833 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8 x 2 GB 667 MHz ECC CL5 FB-DIMM) |
Disk Subsystem: | 1 x 73 GB 10000 RPM SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16-60.0.21-smp |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042, l_fproc_b_11.0.042 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

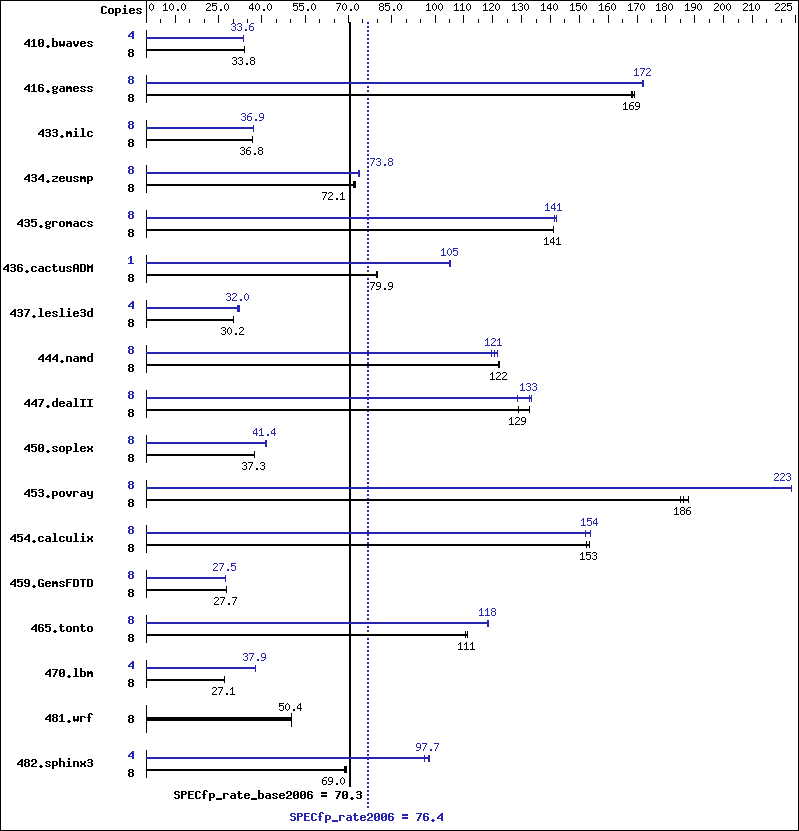

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 3213 | 33.8 | 3213 | 33.8 | 3213 | 33.8 | 4 | 1619 | 33.6 | 1617 | 33.6 | 1617 | 33.6 |
416.gamess | 8 | 926 | 169 | 932 | 168 | 930 | 169 | 8 | 909 | 172 | 911 | 172 | 910 | 172 |
433.milc | 8 | 1995 | 36.8 | 1994 | 36.8 | 1994 | 36.8 | 8 | 1988 | 36.9 | 1987 | 37.0 | 1988 | 36.9 |
434.zeusmp | 8 | 1014 | 71.8 | 1010 | 72.1 | 1003 | 72.6 | 8 | 987 | 73.8 | 991 | 73.5 | 984 | 74.0 |
435.gromacs | 8 | 405 | 141 | 405 | 141 | 405 | 141 | 8 | 402 | 142 | 404 | 141 | 404 | 141 |
436.cactusADM | 8 | 1197 | 79.9 | 1198 | 79.8 | 1197 | 79.9 | 1 | 113 | 105 | 113 | 105 | 114 | 105 |
437.leslie3d | 8 | 2490 | 30.2 | 2489 | 30.2 | 2493 | 30.2 | 4 | 1175 | 32.0 | 1187 | 31.7 | 1171 | 32.1 |
444.namd | 8 | 525 | 122 | 525 | 122 | 525 | 122 | 8 | 528 | 122 | 532 | 121 | 536 | 120 |
447.dealII | 8 | 689 | 133 | 710 | 129 | 710 | 129 | 8 | 690 | 133 | 712 | 129 | 685 | 134 |
450.soplex | 8 | 1787 | 37.3 | 1787 | 37.3 | 1790 | 37.3 | 8 | 1613 | 41.4 | 1612 | 41.4 | 1611 | 41.4 |
453.povray | 8 | 229 | 186 | 230 | 185 | 227 | 188 | 8 | 190 | 223 | 190 | 224 | 190 | 223 |
454.calculix | 8 | 430 | 153 | 430 | 153 | 433 | 153 | 8 | 429 | 154 | 434 | 152 | 429 | 154 |
459.GemsFDTD | 8 | 3067 | 27.7 | 3064 | 27.7 | 3067 | 27.7 | 8 | 3081 | 27.6 | 3086 | 27.5 | 3086 | 27.5 |
465.tonto | 8 | 709 | 111 | 707 | 111 | 711 | 111 | 8 | 665 | 118 | 666 | 118 | 665 | 118 |
470.lbm | 8 | 4056 | 27.1 | 4053 | 27.1 | 4053 | 27.1 | 4 | 1452 | 37.8 | 1451 | 37.9 | 1452 | 37.9 |
481.wrf | 8 | 1774 | 50.4 | 1774 | 50.4 | 1781 | 50.2 | 8 | 1774 | 50.4 | 1774 | 50.4 | 1781 | 50.2 |
482.sphinx3 | 8 | 2271 | 68.6 | 2250 | 69.3 | 2258 | 69.0 | 4 | 798 | 97.7 | 809 | 96.3 | 796 | 97.9 |
The config file option 'submit' was used. taskset was used to bind processes to cores except for 436.cactusADM peak
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
BIOS Settings: Hardware Prefetcher = Disabled (Default = Enabled) Adjacent Cache Line Prefetch = Disabled (Default = Enabled)
OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
icc | |
482.sphinx3: | /opt/intel/Compiler/11.0/042/bin/ia32/icc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
icpc | |
450.soplex: | /opt/intel/Compiler/11.0/042/bin/ia32/icpc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
ifort | |
437.leslie3d: | /opt/intel/Compiler/11.0/042/bin/ia32/ifort -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias |
470.lbm: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
482.sphinx3: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -opt-prefetch |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -opt-prefetch |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | basepeak = yes |
