SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Blade T6340 Server Module

CPU2006 license: 6 Test date: Sep-2008
Test sponsor: Sun Microsystems Hardware Availability: Oct-2008
Tested by: Sun Microsystems Software Availability: Nov-2008

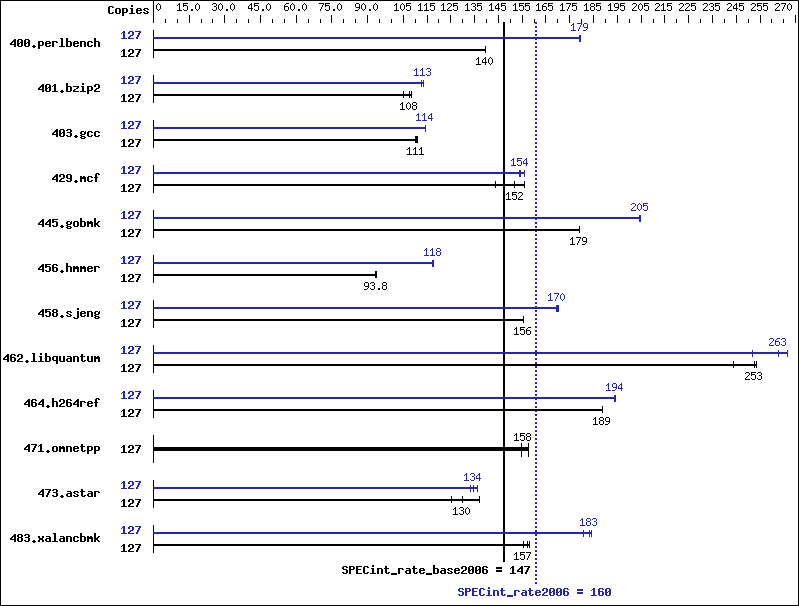

Benchmark results graph
Hardware
CPU Name: UltraSPARC T2 Plus
CPU Characteristics:
CPU MHz: 1415
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip, 8 threads/core
CPU(s) orderable: 2 chips
Primary Cache: 16 KB I + 8 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 128 GB (32 x 4 GB)
Disk Subsystem: Sun Blade 6000 Disk Module
544 GB (8 x 73 GB 15K RPM SAS disks
in software RAID 0 with 8 KB stripe)
Other Hardware: None
Software
Operating System: Solaris 10 10/08
Compiler: Sun Studio 12 and gccfss V4.2.1
(see additional detail below)
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 127 8888 140   8883 140   8891 140   127 6922 179 6915 179 6916 179
401.bzip2 127 11660 105   11385 108   11313 108   127 10800 113 10786 114 10889 113
403.gcc 127 9238 111   9273 110   9218 111   127 8942 114 8939 114 8946 114
429.mcf 127 8066 144   7628 152   7434 156   127 7435 156 7521 154 7516 154
445.gobmk 127 7439 179   7445 179   7443 179   127 6512 205 6509 205 6515 204
456.hmmer 127 12636 93.8 12700 93.3 12637 93.8 127 10096 117 10076 118 10072 118
458.sjeng 127 9874 156   9872 156   9871 156   127 9035 170 9050 170 9060 170
462.libquantum 127 10407 253   10385 253   10789 244   127 10457 252 10017 263 9865 267
464.h264ref 127 14891 189   14901 189   14891 189   127 14470 194 14493 194 14481 194
471.omnetpp 127 5130 155   5033 158   5030 158   127 5130 155 5033 158 5030 158
473.astar 127 6862 130   6507 137   7116 125   127 6682 133 6632 134 6545 136
483.xalancbmk 127 5575 157   5632 156   5551 158   127 4764 184 4843 181 4784 183

Compiler Invocation Notes

 Sun Studio compiler patches are available at
 http://developers.sun.com/sunstudio/downloads/patches/ss12_patches.jsp
 The tested configuration included patch 124867-05,
 124861-06, 124863-04, 127000-04

 Peak also uses "GCC for SPARC Systems", which combines gcc
 with the Sun Code Generator for SPARC systems.  It is invoked
 as "gcc", and accepts source code compatible with GCC 4.2.
 For more information, including support, see
    http://cooltools.sunsource.net/gcc/

Submit Notes

 The config file option 'submit' was used.  Processes were
 bound to cores using "submit" and "pbind".

Operating System Notes


 ulimit -s 131072 was used to allow the stack to grow
 up to 131072 KB (aka 128 MB).  Note that saying "131072"
 is preferable to "unlimited", because there is a tradeoff
 between space for the stack vs. space for the heap.

 /etc/system parameters
    autoup=600
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers
    segmap_percent=1
       Set maximum percent memory for file system cache
    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    tsb_rss_factor=128
       Suggests that the the size of the TSB (Translation Storage Buffer)
       may be increased if it is more than 25% (128/512) full.  Doing so
       may reduce TSB traps, at the cost of additional kernel memory.

 The "webconsole" service was turned off using
    svcadm disable webconsole

 The system had 168 GB of swap space.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -g   -fast   -xipo=2   -xpagesize=4M   -xprefetch=no%auto   -xalias_level=std   -M /usr/lib/ld/map.bssalign

C++ benchmarks:

 -g0   -library=stlport4   -fast   -xipo=2   -xpagesize=4M   -xprefetch=no%auto   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign

Base Other Flags

C benchmarks:

 -xjobs=32   -V   -#

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

Peak Compiler Invocation

C benchmarks (except as noted below):

 cc
403.gcc:  gcc
456.hmmer:  gcc
462.libquantum:  gcc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
462.libquantum:  -DSPEC_CPU_SOLARIS   -DSPEC_CPU_NEED_COMPLEX_I
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -M /usr/lib/ld/map.bssalign   -xalias_level=std   -xipo=2   -Xc   -xrestrict   -lfast
401.bzip2:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xalias_level=strong
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -Wl,-M,/usr/lib/ld/map.bssalign   -xipo=2   -xalias_level=std
429.mcf:  -g   -fast   -xprefetch=no%auto   -M /usr/lib/ld/map.bssalign   -xipo=2   -xrestrict   -xalias_level=std   -lfast
445.gobmk:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -M /usr/lib/ld/map.bssalign   -xalias_level=std   -xrestrict
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -Wl,-M,/usr/lib/ld/map.bssalign   -xipo=2   -xalias_level=std
458.sjeng:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -M /usr/lib/ld/map.bssalign   -xipo=2
462.libquantum:  -fast   -Wl,-M,/usr/lib/ld/map.bssalign   -xipo=2
464.h264ref:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -M /usr/lib/ld/map.bssalign   -xipo=2   -xalias_level=std

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  -g0   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize_heap=4M   -xpagesize_stack=64K   -xprefetch=no%auto   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -xipo=2   -xarch=v8plusb   -lfast   -lbsdmalloc
483.xalancbmk:  -g0   -library=stlport4   -fast   -xpagesize=4M   -xprefetch=no%auto   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -xipo=2   -lfast

Peak Other Flags

C benchmarks (except as noted below):

 -xjobs=32   -V   -#
403.gcc:  -v
456.hmmer:  -v
462.libquantum:  -v

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2.r3.20090713.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2.r3.20090713.xml.
